NOVA-945GSE 5.25” SBC

Page 64

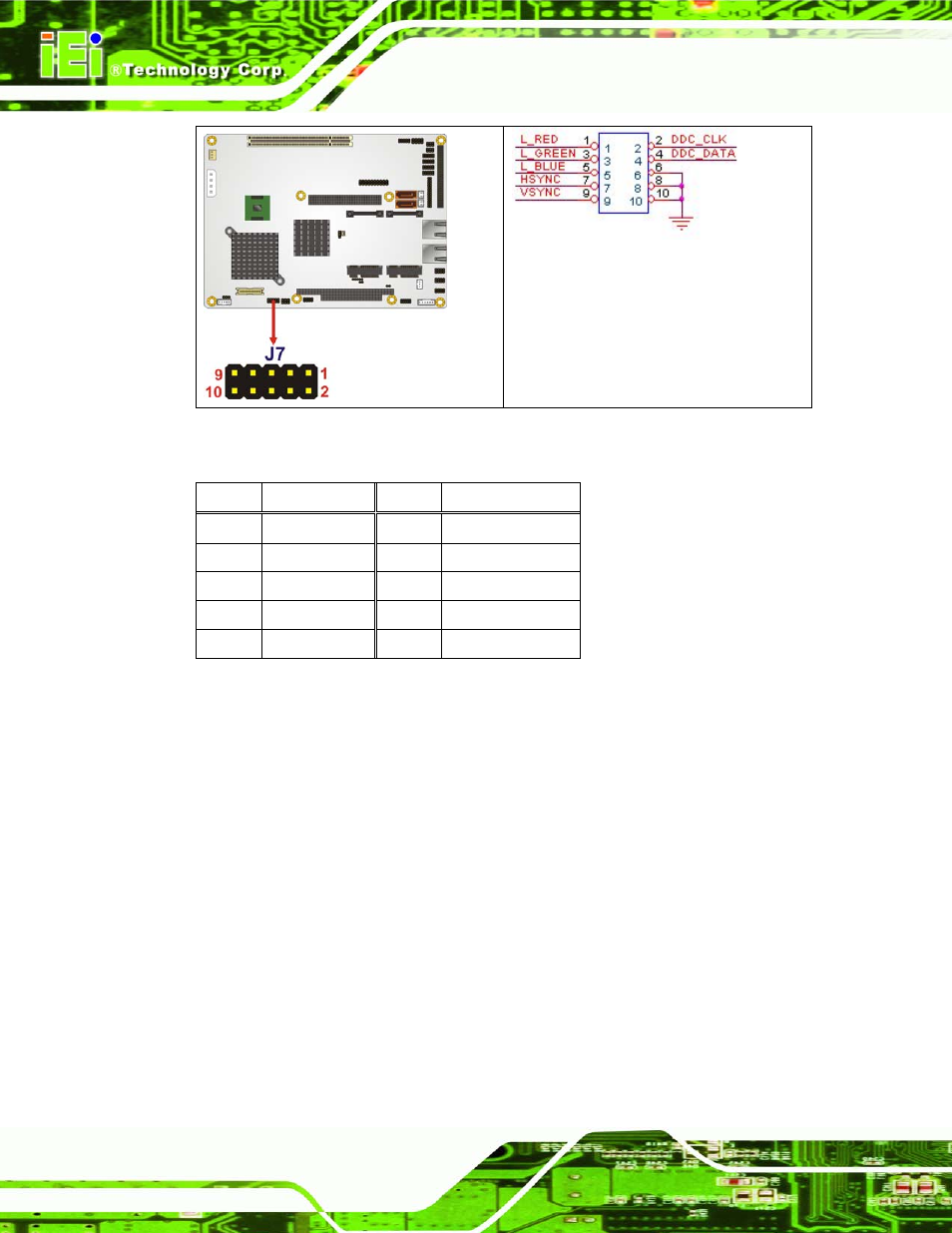

Figure 4-8: VGA Connector Pinout Locations

PIN NO. DESCRIPTION PIN NO. DESCRIPTION

1 L_RED 2

DDC_CLK

3 L_GREEN

4

DDC_DATA

5 L_BLUE 6

GND

7 HSYNC 8

GND

9 VSYNC 10

GND

Table 4-8: VGA Connector Pinouts

4.3.7 Digital Input/Output (DIO) Connector

CN Label:

DIO1

CN Type:

10-pin header (2x5)

CN Location:

See

739H

Figure 4-9

CN Pinouts:

See

740H

Table 4-9

The digital input/output connector is managed through a Super I/O chip. The DIO

connector pins are user programmable.
