IMBA-XQ354 Motherboard

Page 75

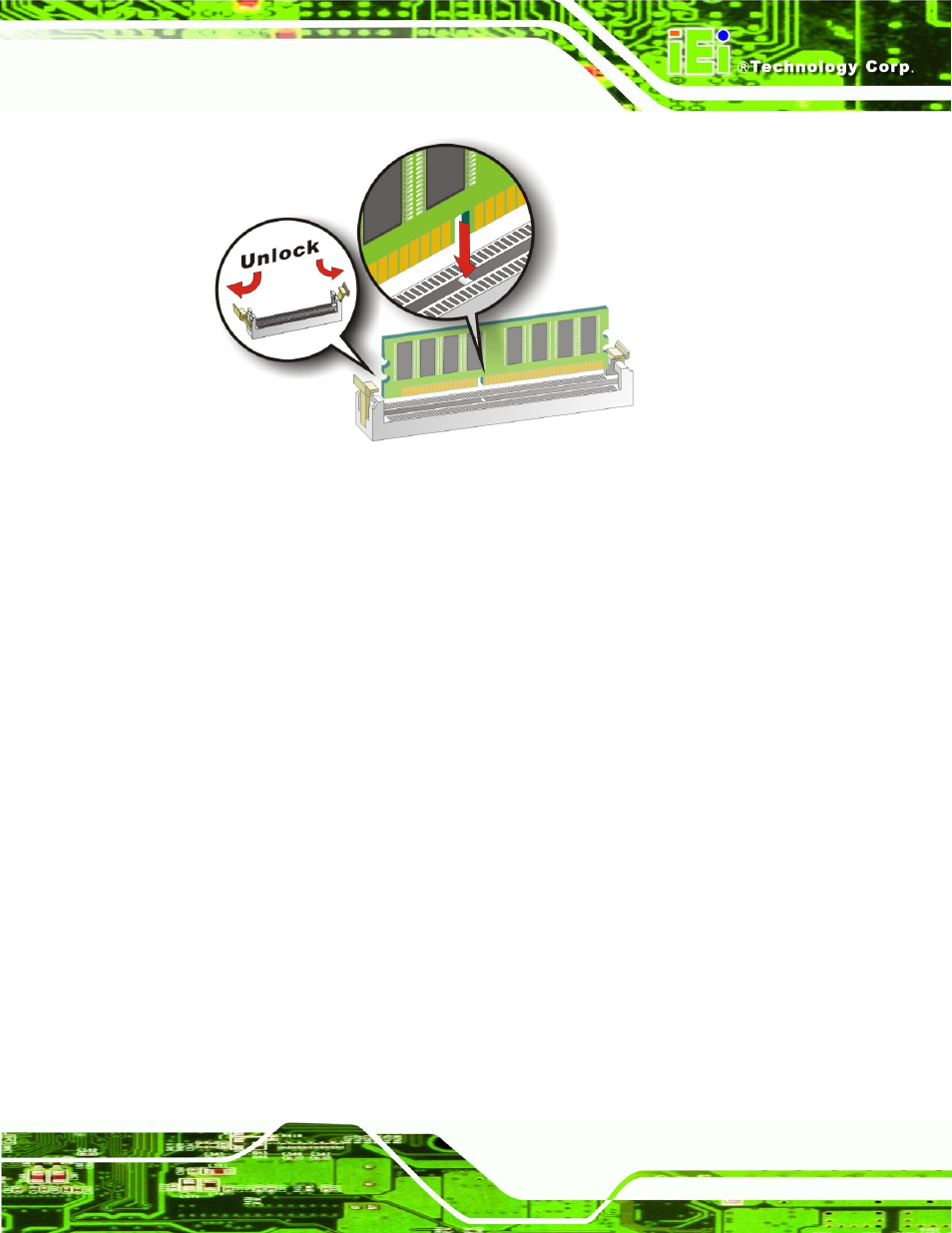

Figure 5-7: Installing a DIMM

Step 1:

Open the DIMM socket handles. The DIMM socket has two handles that

secure the DIMM into the socket. Before the DIMM can be inserted into the

socket, the handles must be opened. See

929H929H

Figure 5-7.

Step 2:

Align the DIMM with the socket. The DIMM must be oriented in such a way

that the notch in the middle of the DIMM must be aligned with the plastic bridge

in the socket. See

930H930H

Figure 5-7.

Step 3:

Insert the DIMM. Once properly aligned, the DIMM can be inserted into the

socket. As the DIMM is inserted, the white handles on the side of the socket will

close automatically and secure the DIMM to the socket. See

931H931H

Figure 5-7.

Step 4:

Removing a DIMM. To remove a DIMM, push both handles outward. The

memory module is ejected by a mechanism in the socket.
