IMBA-XQ354 Motherboard
Page 41

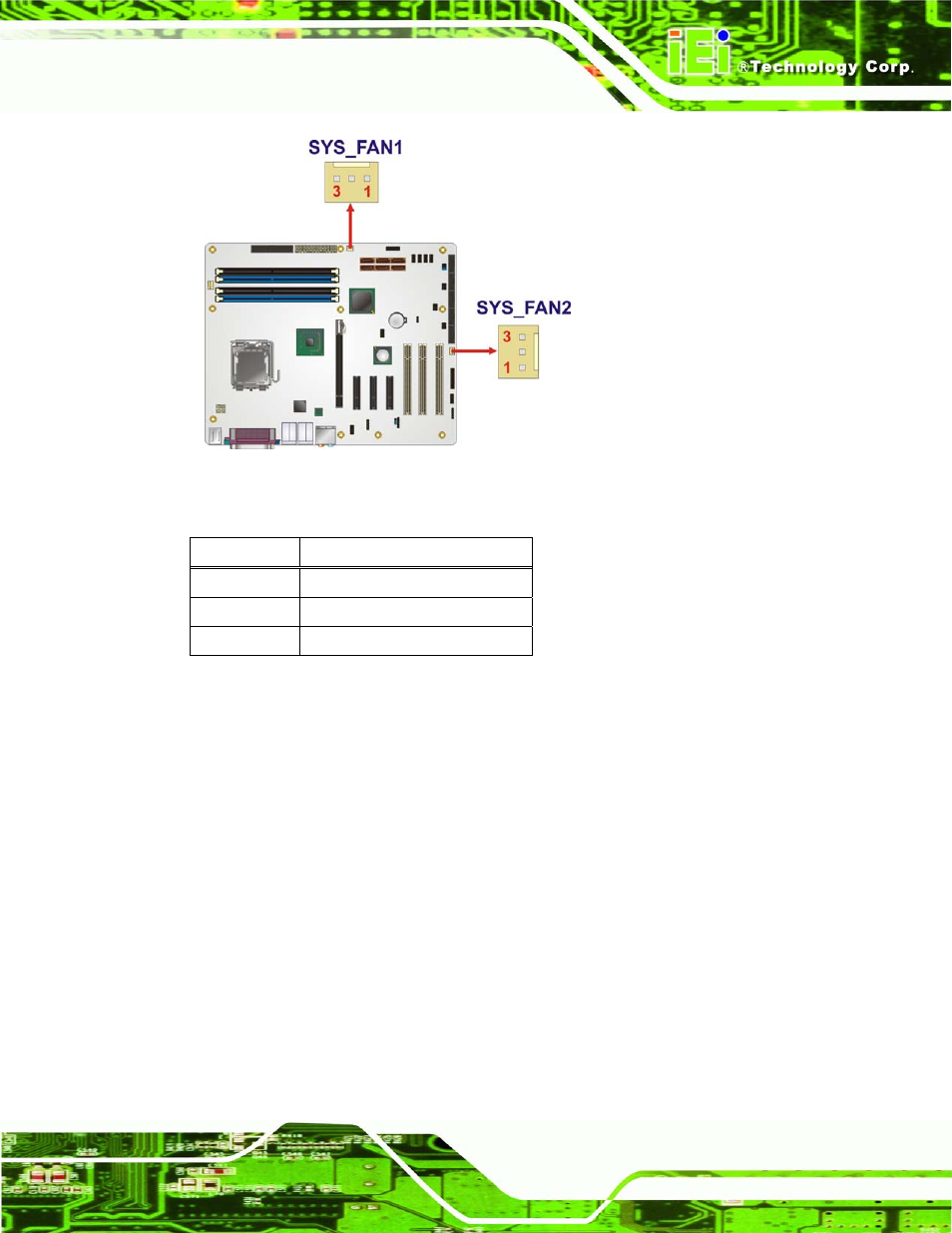

Figure 4-8: System Fan Connector Location
PIN NO. DESCRIPTION
1 GND
2 +12 V
3 Fan Speed Detect
Table 4-9: System Fan Connector Pinouts
4.2.8 Floppy Disk Connector
CN Label: FDD1
CN Type: 34-pin header (2x17)
CN Location: See
879H879H
Figure 4-9
CN Pinouts: See
880H880H
Table 4-10
The floppy disk connector is connected to a floppy disk drive. The IMBA-XQ354 supports
the following floppy disk drives:
ƒ 360 KB
ƒ 720 KB
ƒ 1.2 MB
ƒ 1.44 MB
