IMBA-XQ354 Motherboard
Page 58

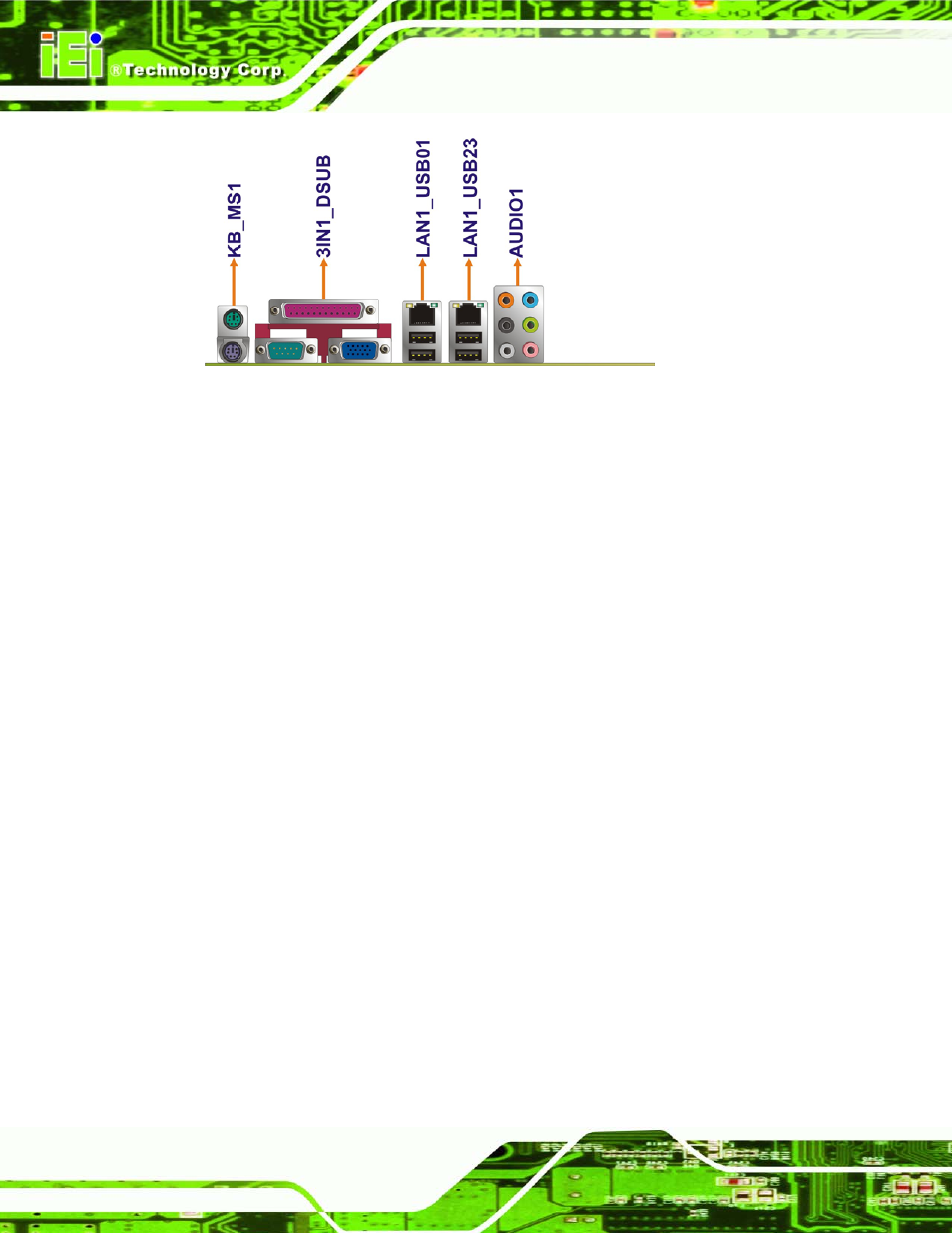

Figure 4-21: IMBA-XQ354 External Interface Connectors
4.3.1 Audio Connector
CN Label: AUDIO1
CN Type: 6 x audio jacks
CN Location: See
906H906H
Figure 4-21
The six audio jacks on the external audio connector enable the IMBA-XQ354 to be
connected to external audio devices as specified below.
ƒ CEN/LFE Out (Orange): Connects to the center speaker and sub-woofer.
ƒ Surround Out (Black): Connects to a speaker on the left and right.
ƒ Side Out (Gray): Connects to side speakers.
ƒ Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
ƒ Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port connect to front speakers.
ƒ Microphone (Pink): Connects a microphone.
