IMBA-XQ354 Motherboard

Page 59

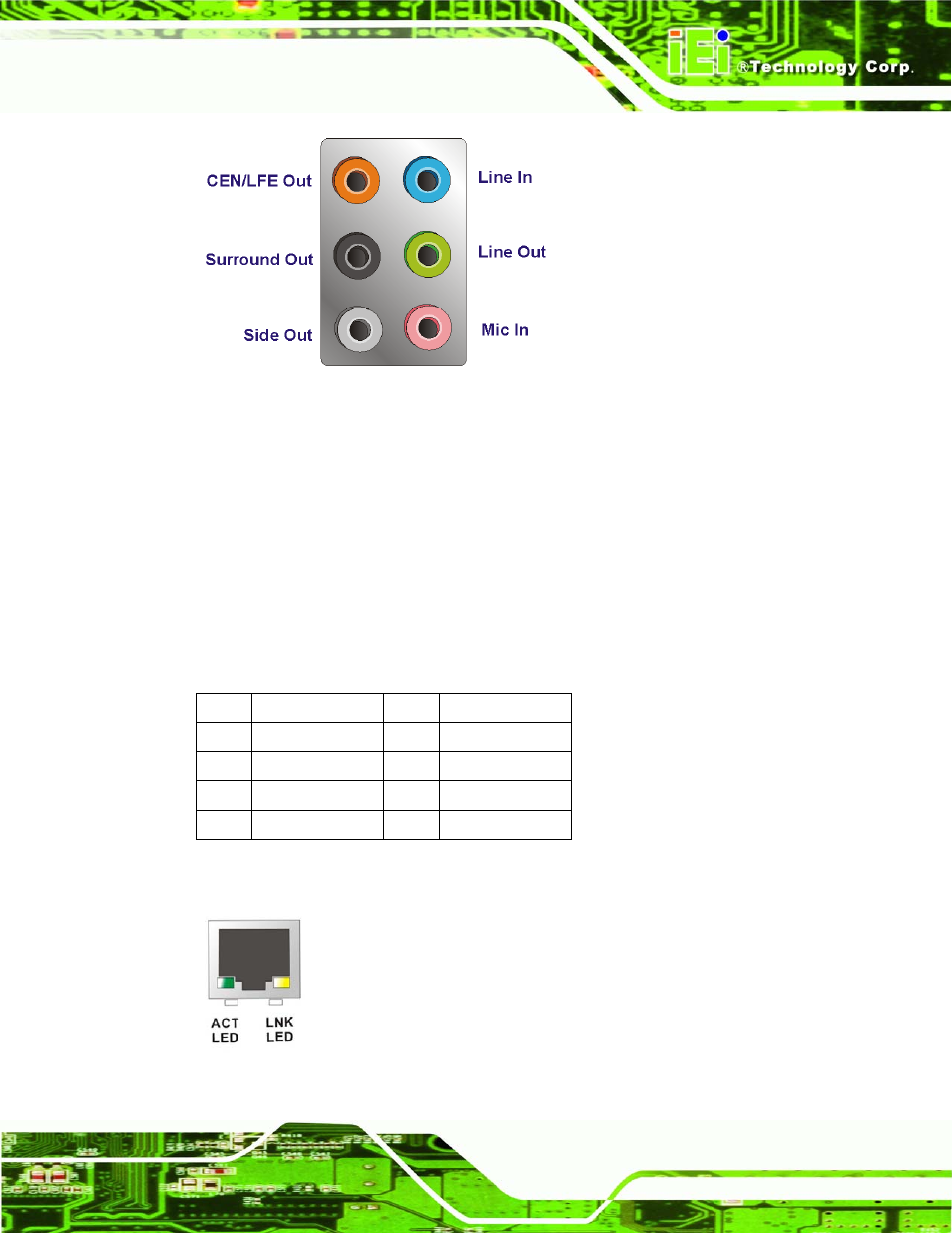

Figure 4-22: Audio Connector

4.3.2 Ethernet Connector

CN Label:

LAN1_USB01, LAN2_USB23

CN Type:

RJ-45

CN Location:

See

907H907H

Figure 4-21

CN Pinouts:

See

908H908H

Table 4-23

A 10/100/1000 Mb/s connection can be made to a Local Area Network.

PIN

DESCRIPTION

PIN

DESCRIPTION

1

TX+

5

N/C

2

N/C

6

RX-

3

TX-

7

N/C

4

RX+

8

N/C

Table 4-23: Ethernet Connector Pinouts

Figure 4-23: Ethernet Connector
