IMBA-XQ354 Motherboard
Page 37
CN Pinouts: See
870H870H
Table 4-5
The 10-pin audio connector is connected to external audio devices including speakers and
microphones for the input and output of audio signals to and from the system.

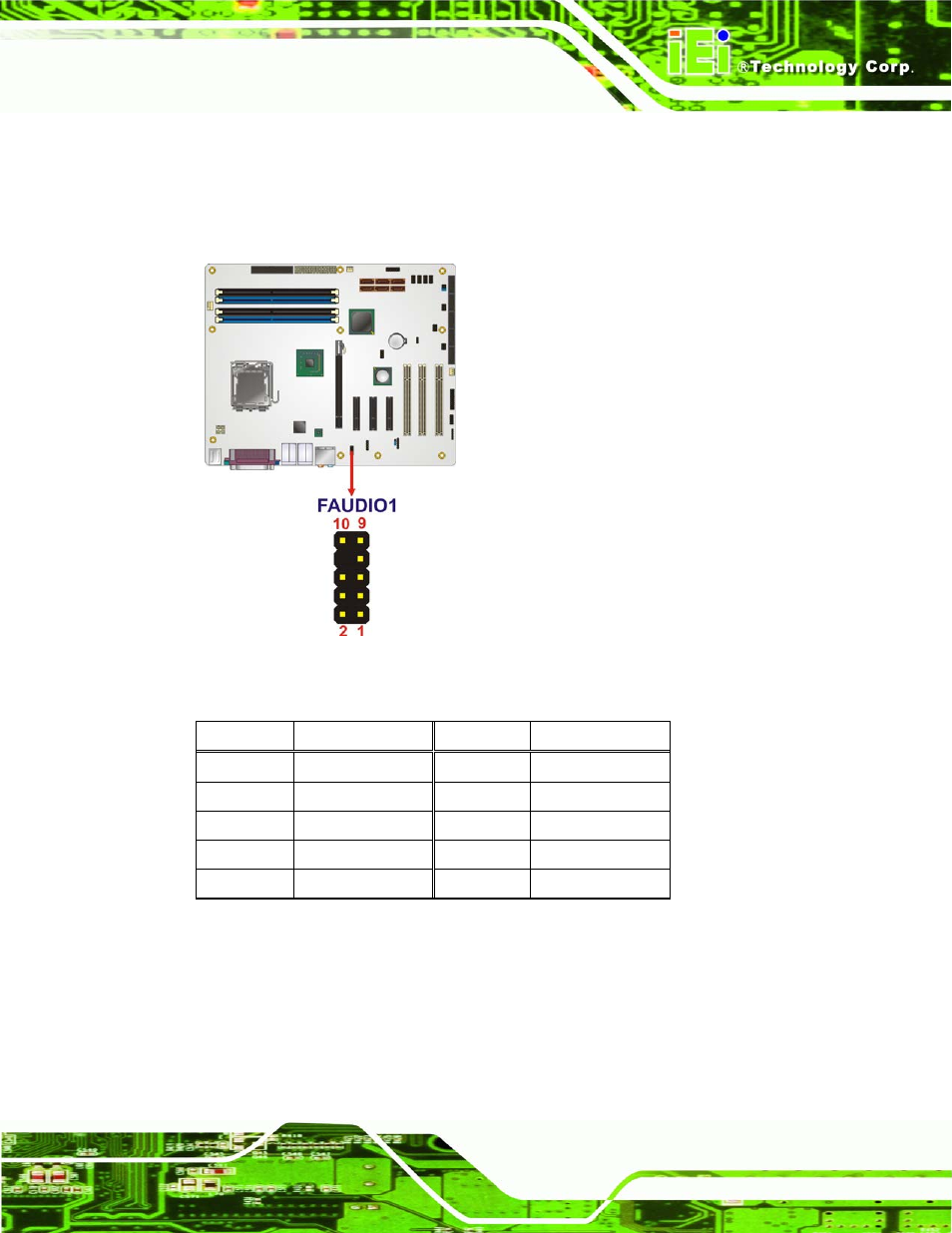

Figure 4-4: Audio Connector Pinouts
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 Microphone left 2 GND
3 Microphone right 4 PRESENCE
5
Line right
6
GND
7 SENSE_SEND 8 N/C
9 Line left 10 GND
Table 4-5: Audio Connector Pinouts
4.2.4 CD In Connector
CN Label: CD_IN1
CN Type: 4-pin header
