IMBA-XQ354 Motherboard
Page 182
ƒ Static TCP/IP address (the static TCP/IP address and Intel® AMI Host Name
must be different from those configured in the operating system)
ƒ Subnet mask
ƒ Default Gateway address (optional)
ƒ Preferred Domain Naming Services (DNS) serer address (optional)
ƒ Alternate DNS server address (optional)
ƒ Domain name (optional)
Step 11: Make other necessary settings in the Intel® MEBx depending on users’ need.
Step 12: To exit the Intel® MEBx, return to the main menu and select Exit. (
1056H1056H
Figure 8-10) S te p 0 :

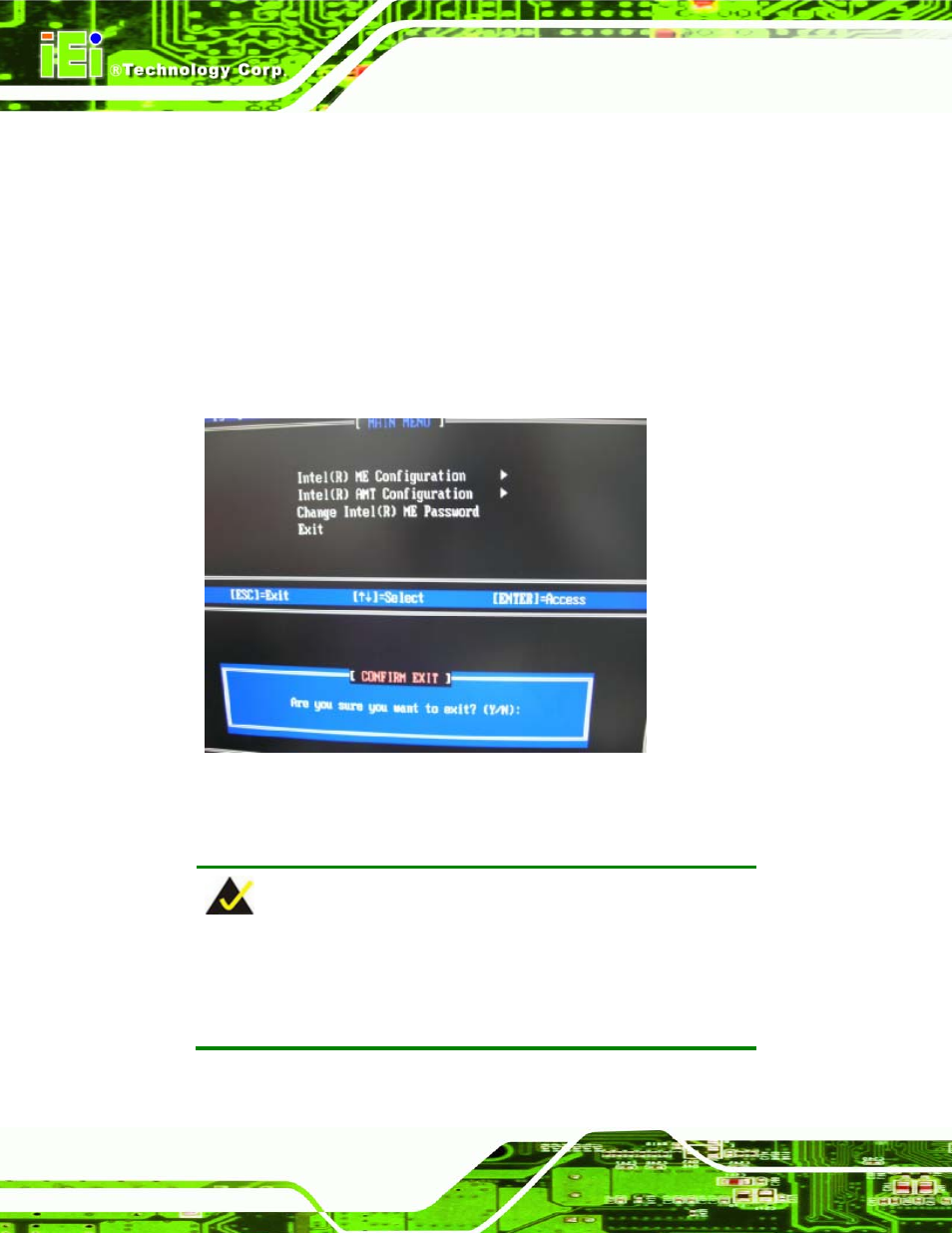

Figure 8-10: Exit
8.3 Using the Intel
®
AMT Web Interface
NOTE:
Prior to use the Intel® AMT web interface, please make sure the Intel®
AMT drivers are properly installed in the IMBA-XQ354and the Intel®
AMT enabled confirmation dialog window displays after boot-up.
To access an Intel® AMT client system from a remote console, follow the steps below.
