6.3.7 AHCI Configuration
Use the AHCI Configuration Settings menu (
984H984H
BIOS Menu 12) to report on the
auto-detection of devices connected to the onboard SATA drive connectors.

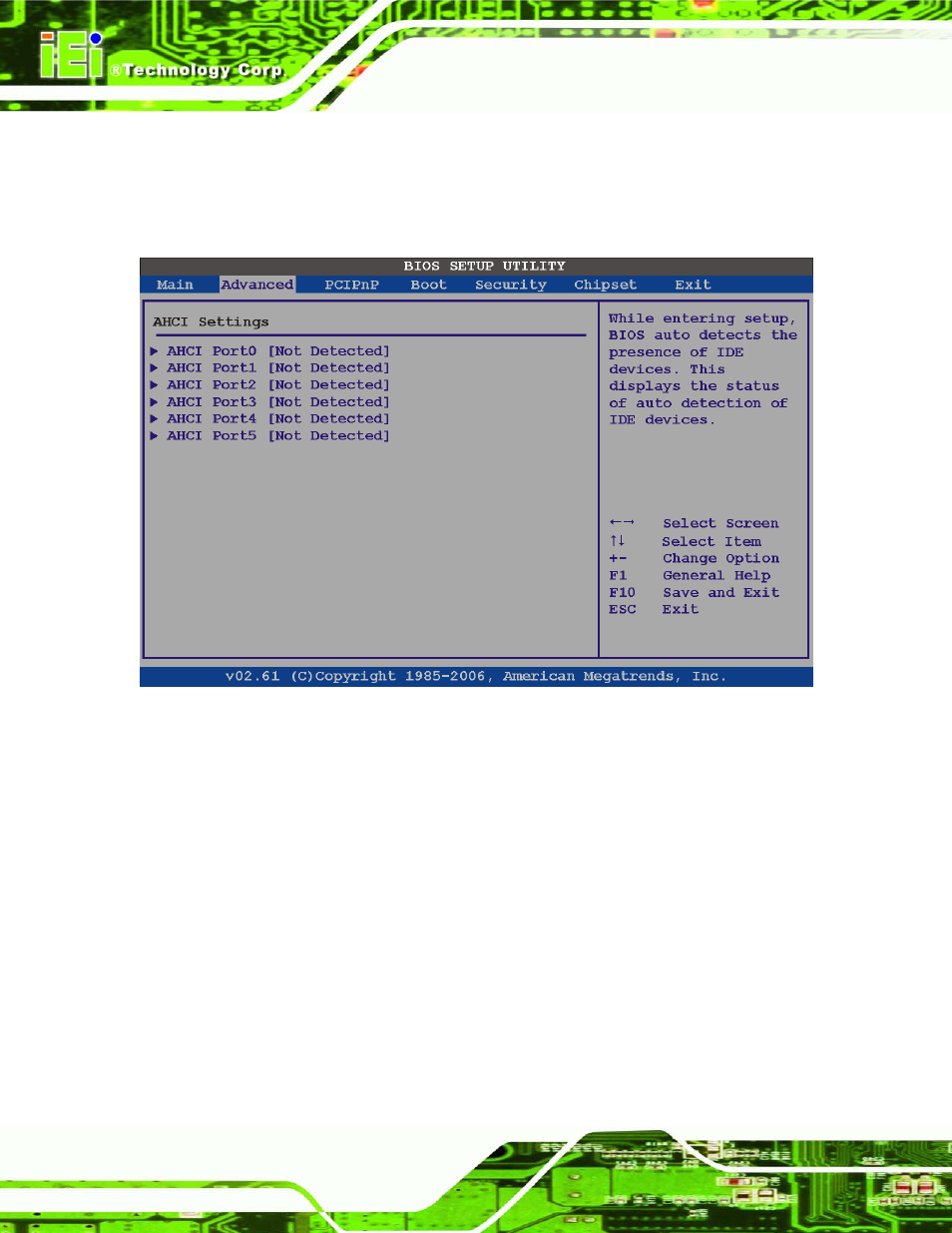

BIOS Menu 12: AHCI Configuration
Î AHCI Port n [Not Detected]
Use the AHCI Port n BIOS option to check what AHCI (Advanced Host Controller
Interface) devices are detected to a specified SATA drive connector. If a device is
detected, selecting the BIOS option, e.g. “AHCI Port 3” opens a new window.
