8.1 Intel

AMT Setup Procedure

The IMBA-XQ354is featured with the Intel® Active Management Technology (AMT) 3.0.

To enable the Intel® AMT function, follow the steps below.

Step 1:

Make sure the DIMM1 socket is installed with one DDR2 DIMM.

Step 2:

Connect an Ethernet cable to the RJ-45 connector labeled LAN2_USB23.

Step 3:

The AMI BIOS options regarding the Intel® ME or Intel® AMT must be enabled,

including:

Intel® AMT Configuration [Advanced]

ME Subsystem Configuration [Advanced]

Configure the Intel® Management Engine BIOS extension (MEBx)

(see Section 10

47H1047H

8.2 below)

Step 4:

Properly install the Intel® AMT drives. Make sure to install both HECI and

LMS_SOL drivers from the iAMT Driver & Utility directory in the driver CD (see

Section 10

48H1048H

7.8).

Step 5:

The following dialog window is displayed after the OS is loaded to show the

Intel® AMT status on the IMBA-XQ354 is enabled.

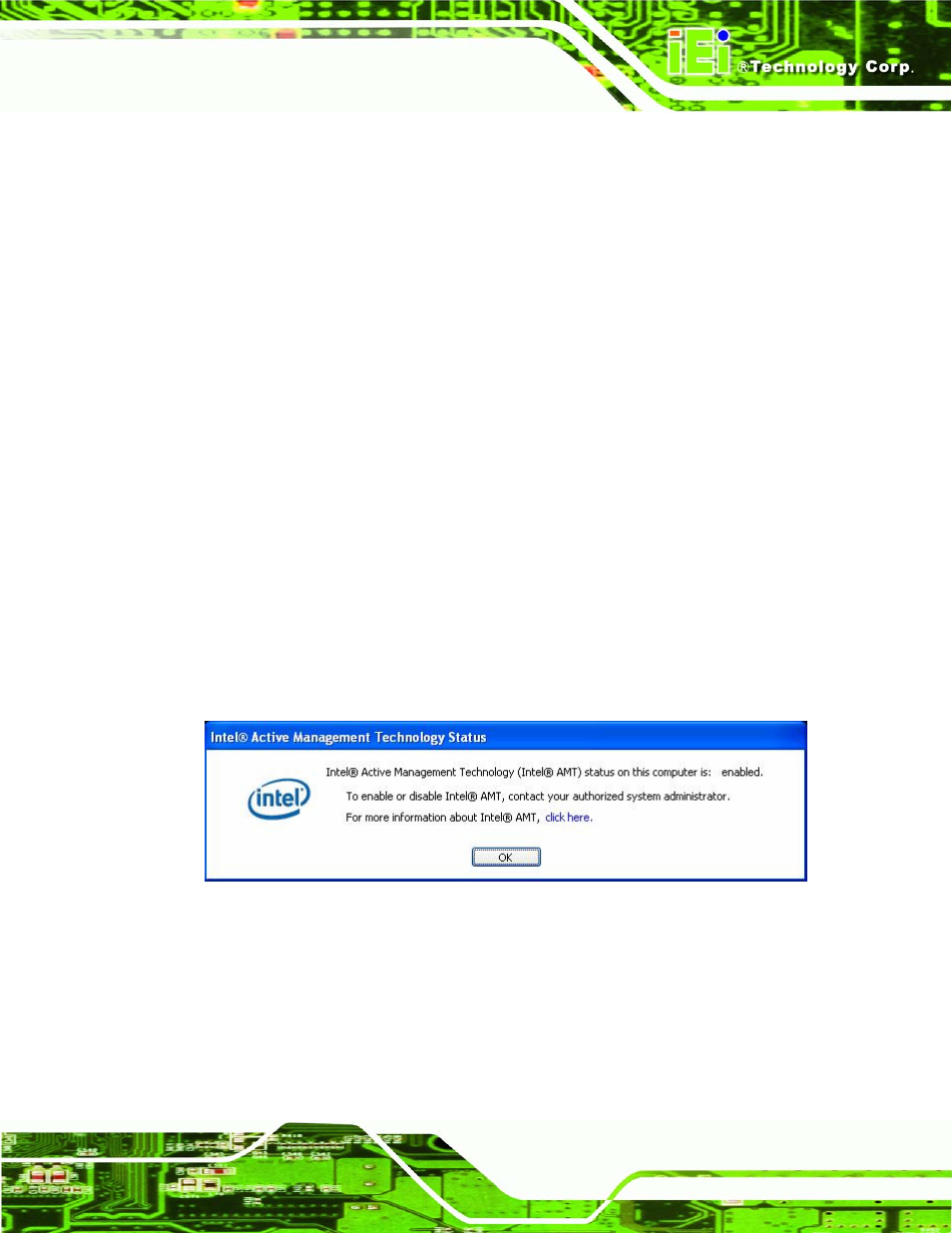

Figure 8-1: Intel® Active Management Technology Status Dialog

8.2 Intel

Management Engine BIOS Extension

This section describes the essential steps for using the Intel® Management Engine BIOS

extension (MEBx).
