IMBA-XQ354 Motherboard

Page 55

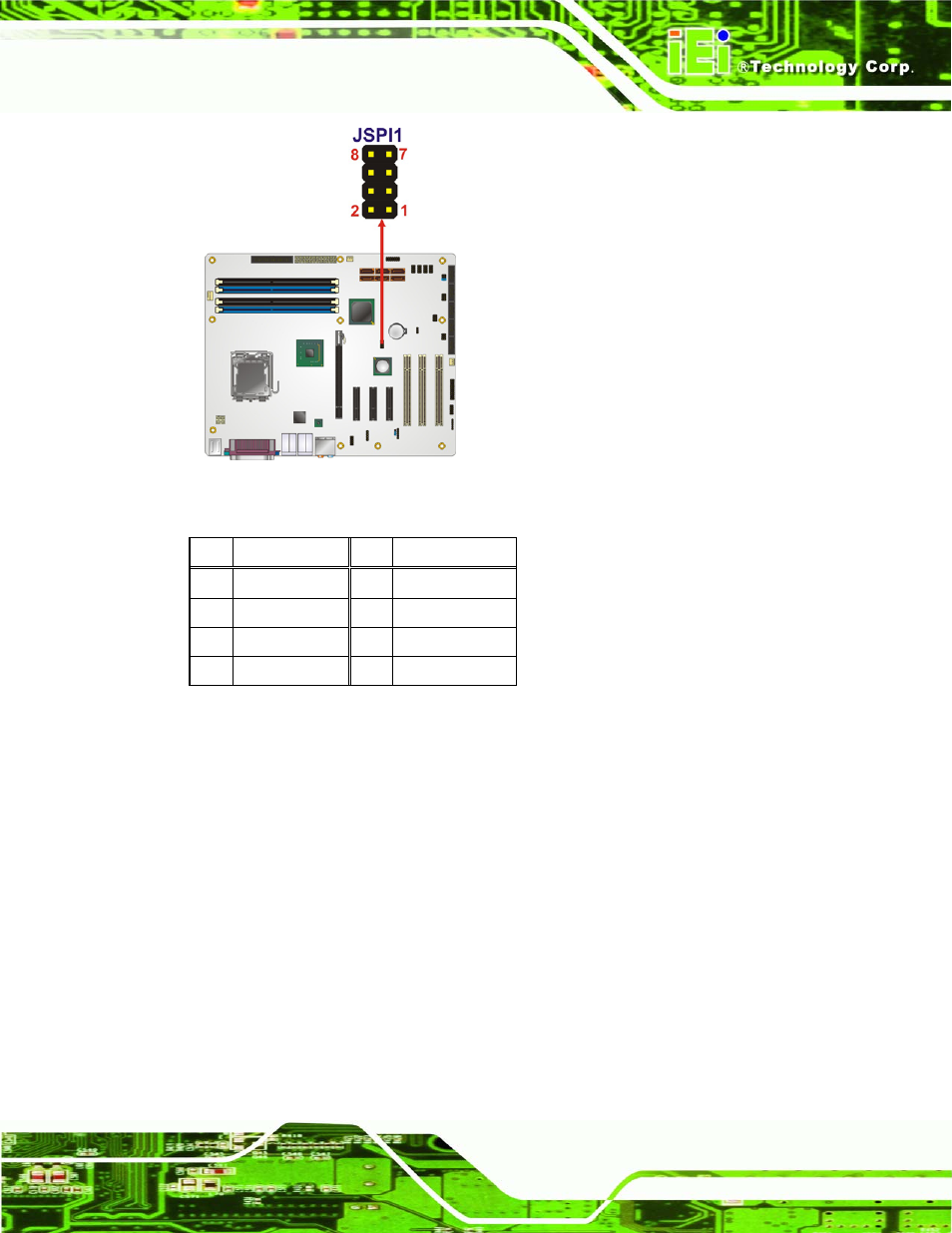

Figure 4-18: SPI Flash Connector Pinouts

PIN DESCRIPTION PIN DESCRIPTION

1

VCC

2

GND

3

CS#

4

CLOCK

5

SO

6

SI

7

NC

8

NC

Table 4-20: SPI Flash Connector

4.2.18 Trusted Platform Module (TPM) Connector

CN Label:

TPM1

CN Type:

40-pin header (2x20)

CN Location:

See

900H900H

Figure 4-19

CN Pinouts:

See

901H901H

Table 4-21

The Trusted Platform Module (TPM) connector secures the system on boot.
