IMBA-XQ354 Motherboard
Page 53
CN Pinouts: See
895H895H
Table 4-18
Use the SPDIF connector to connect digital audio devices to the system.

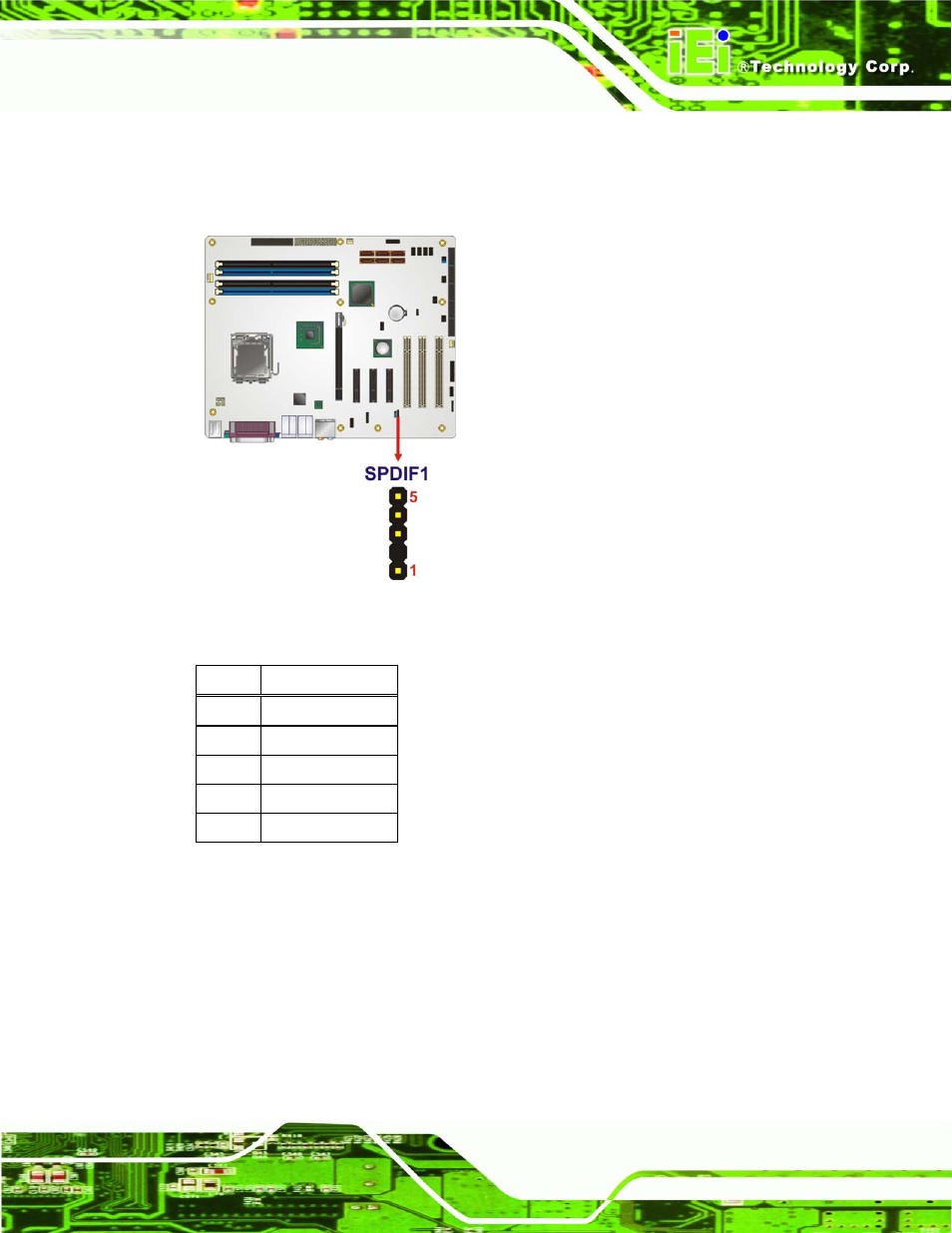

Figure 4-16: SPDIF Connector Pinout Locations
PIN DESCRIPTION
1 5 V audio
2 NC
3 SPDIF out
4 GND audio
5 SPDIF in
Table 4-18: SPDIF Connector Pinouts
4.2.16 Serial Port Connectors
CN Label: COM2, COM3, COM4, COM5, COM6
CN Type: 9-pin box headers (2x5)
CN Location: See
896H896H
Figure 4-17
CN Pinouts: See
897H897H
Table 4-19
