IMBA-XQ354 Motherboard
Page 38
CN Location: See
871H871H
Figure 4-5
CN Pinouts: See
872H872H
Table 4-6
The 4-pin audio CD in connector is connected to an external audio CD device for the input
and output of audio signals from a CD player to the system.

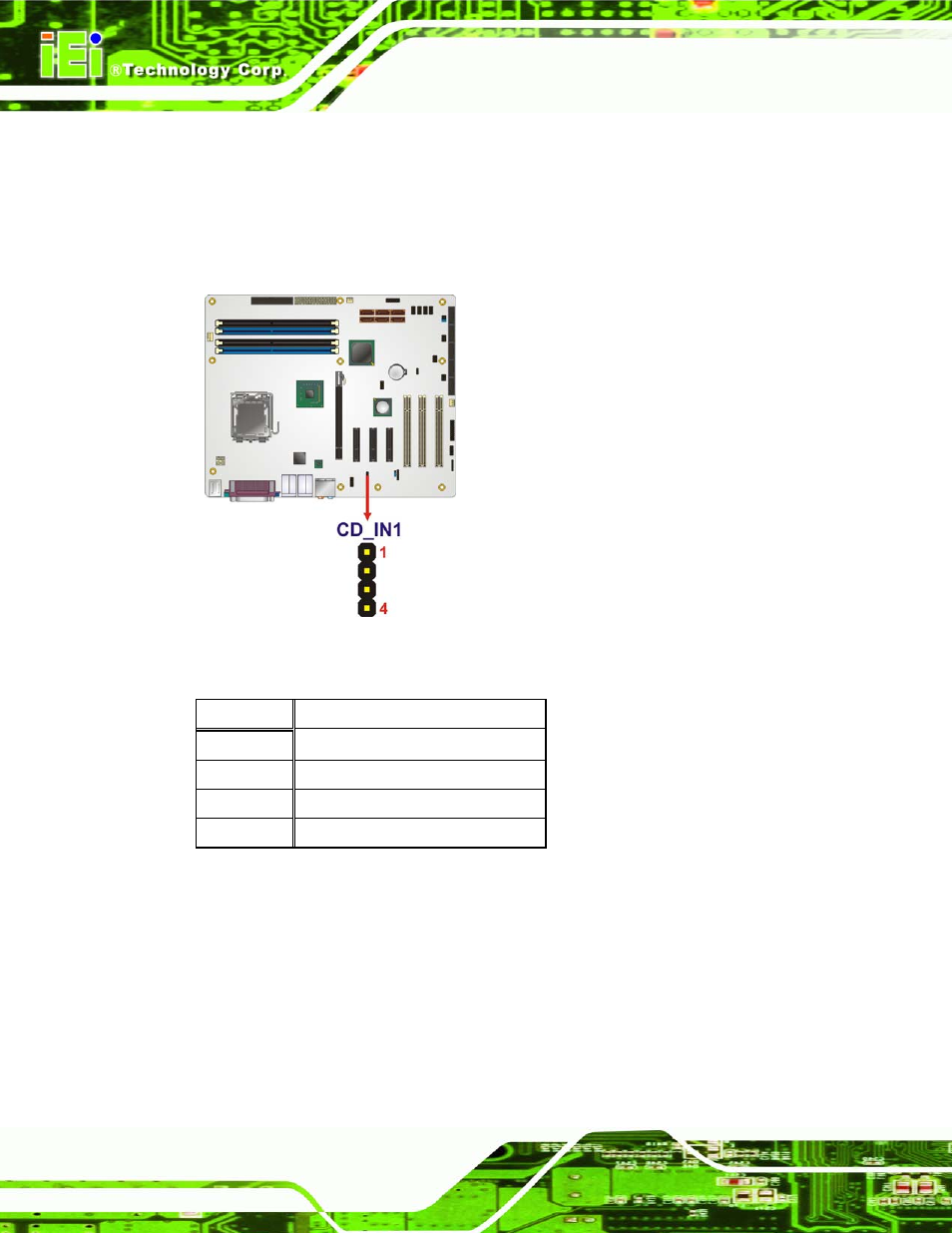

Figure 4-5: Audio CD In Connector Location
PIN NO. DESCRIPTION
1 Left signal
2 Ground
3 Ground
4 Right signal
Table 4-6: Audio CD In Connector Pinouts
4.2.5 Digital I/O Connector
CN Label: DIO1
CN Type: 10-pin header (2x5)
CN Location: See
873H873H
Figure 4-6
CN Pinouts: See
874H874H
Table 4-7
