IMBA-XQ354 Motherboard
Page 95

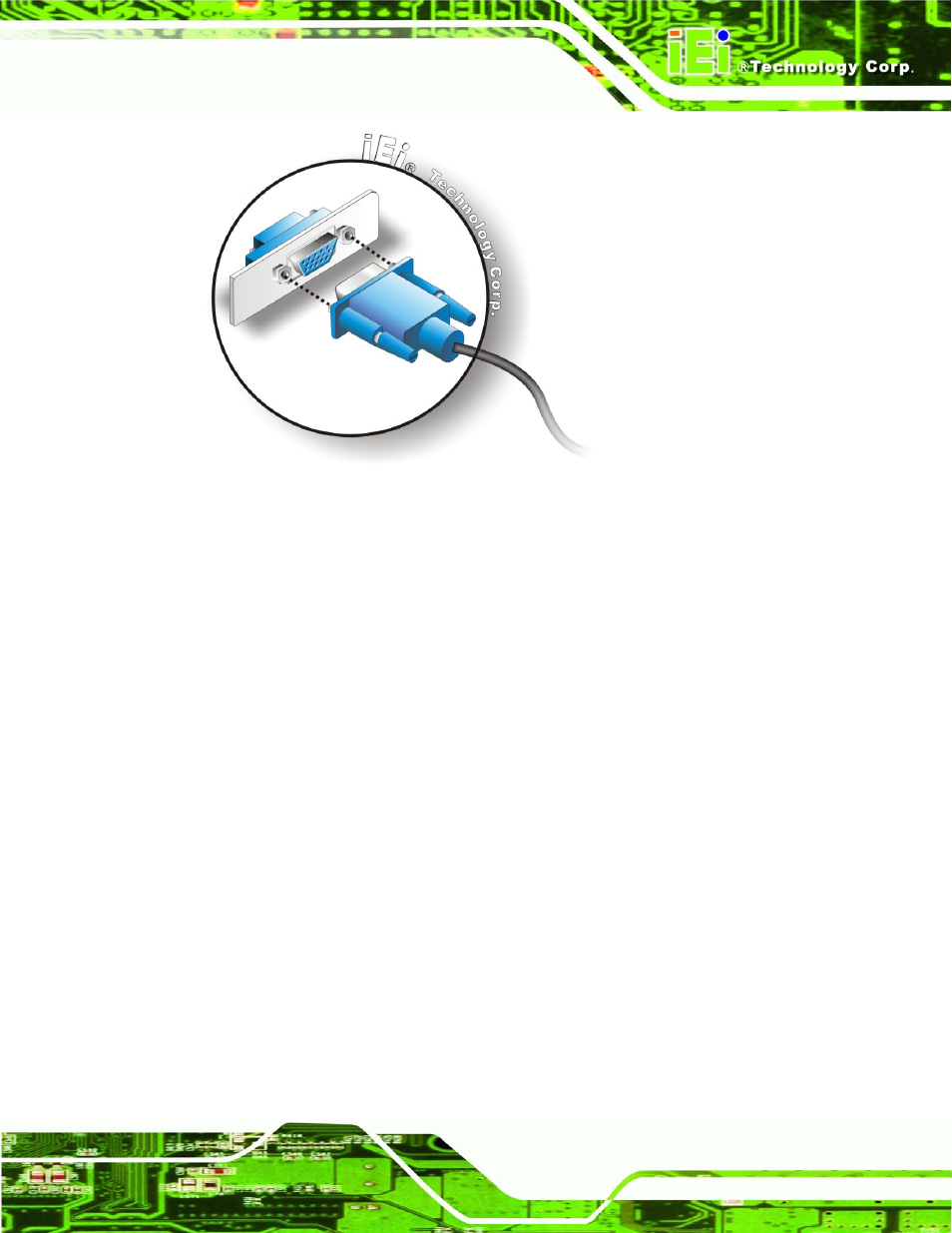

Figure 5-23: VGA Connector
Step 4: Secure the connector. Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector. Step 0:
5.6.7 Audio Connector
The six audio jacks on the external audio connector enable the IMBA-XQ354 to be
connected to a 7.1 channel surround sound setup. To install the audio devices, follow the
steps below.
Step 1: Identify the audio plugs. The plugs on your home theater system or speakers
may not match the colors on the rear panel. If audio plugs are plugged into the
wrong jacks, sound quality will be very bad.
Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.
ƒ CEN/LFE Out (Orange): Connects to the center speaker and sub-woofer.
ƒ Surround Out (Black): Connects to a speaker on the left and right.
