IMBA-XQ354 Motherboard

Page 70

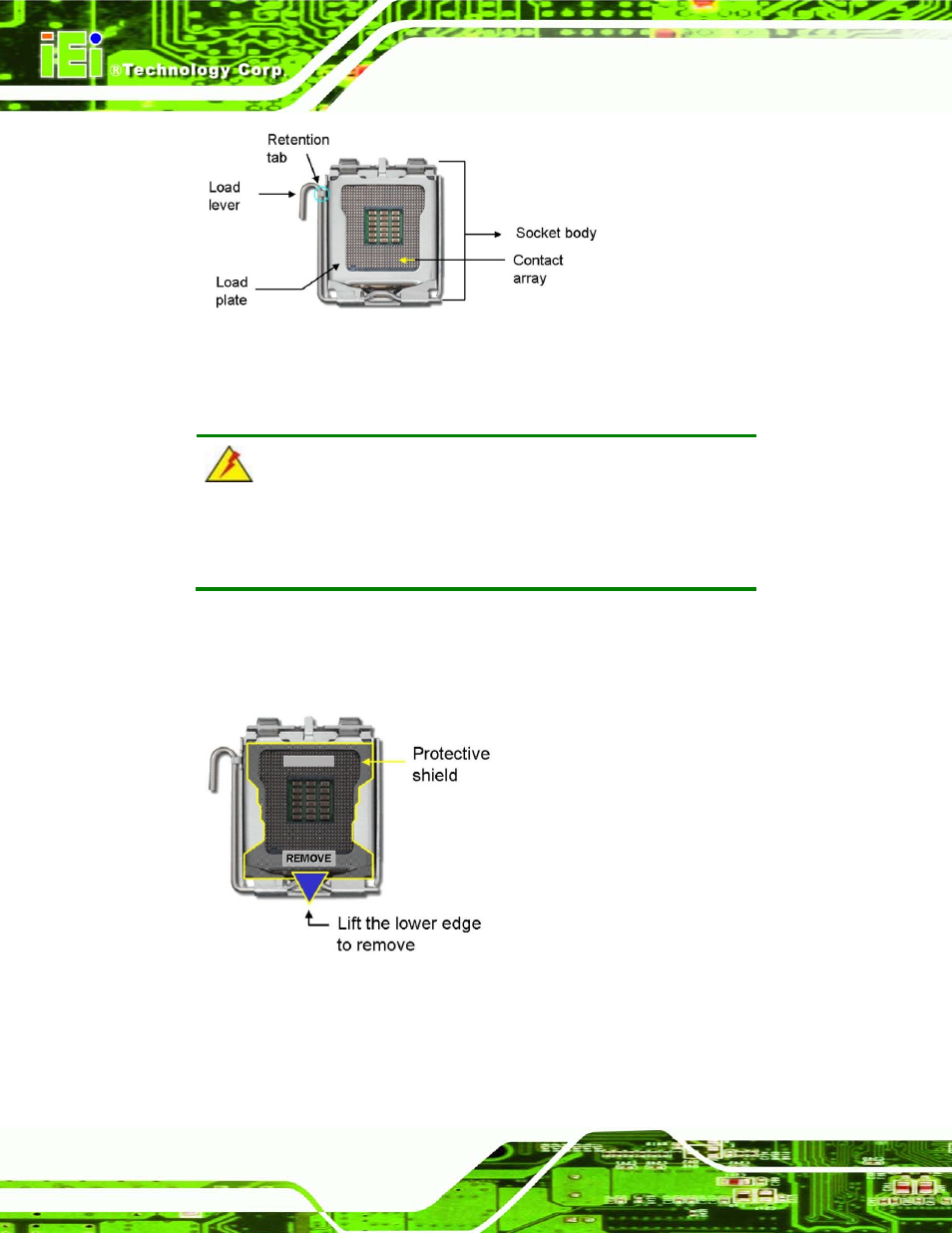

Figure 5-1: Intel LGA775 Socket

To install a socket LGA775 CPU onto the IMBA-XQ354, follow the steps below:

WARNING:

When handling the CPU, only hold it on the sides. DO NOT touch the

pins at the bottom of the CPU.

Step 1:

Remove the protective cover. Remove the black protective cover by prying it

off the load plate. To remove the protective cover, locate the “REMOVE” sign

and use your fingernail to pry the protective cover off. See

923H923H

Figure 5-2.

Figure 5-2: Remove the CPU Socket Protective Shield

Step 2:

Open the socket. Disengage the load lever by pressing the lever down and

slightly outward to clear the retention tab. Rotate the load lever to a fully open
