IMBA-XQ354 Motherboard
Page 43
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
33 GND 34 DISK CHANGE#
Table 4-10: 34-pin FDD Connector Pinouts
4.2.9 Front Panel Connector
CN Label: F_PANEL1
CN Type: 14-pin header (2x10)
CN Location: See
881H881H
Figure 4-10
CN Pinouts: See
882H882H
Table 4-11
The front panel connector connects to external switches and indicators to monitor and
control the motherboard. These indicators and switches include:
ƒ Power button
ƒ Reset button
ƒ Power LED
ƒ HDD LED
ƒ Speaker

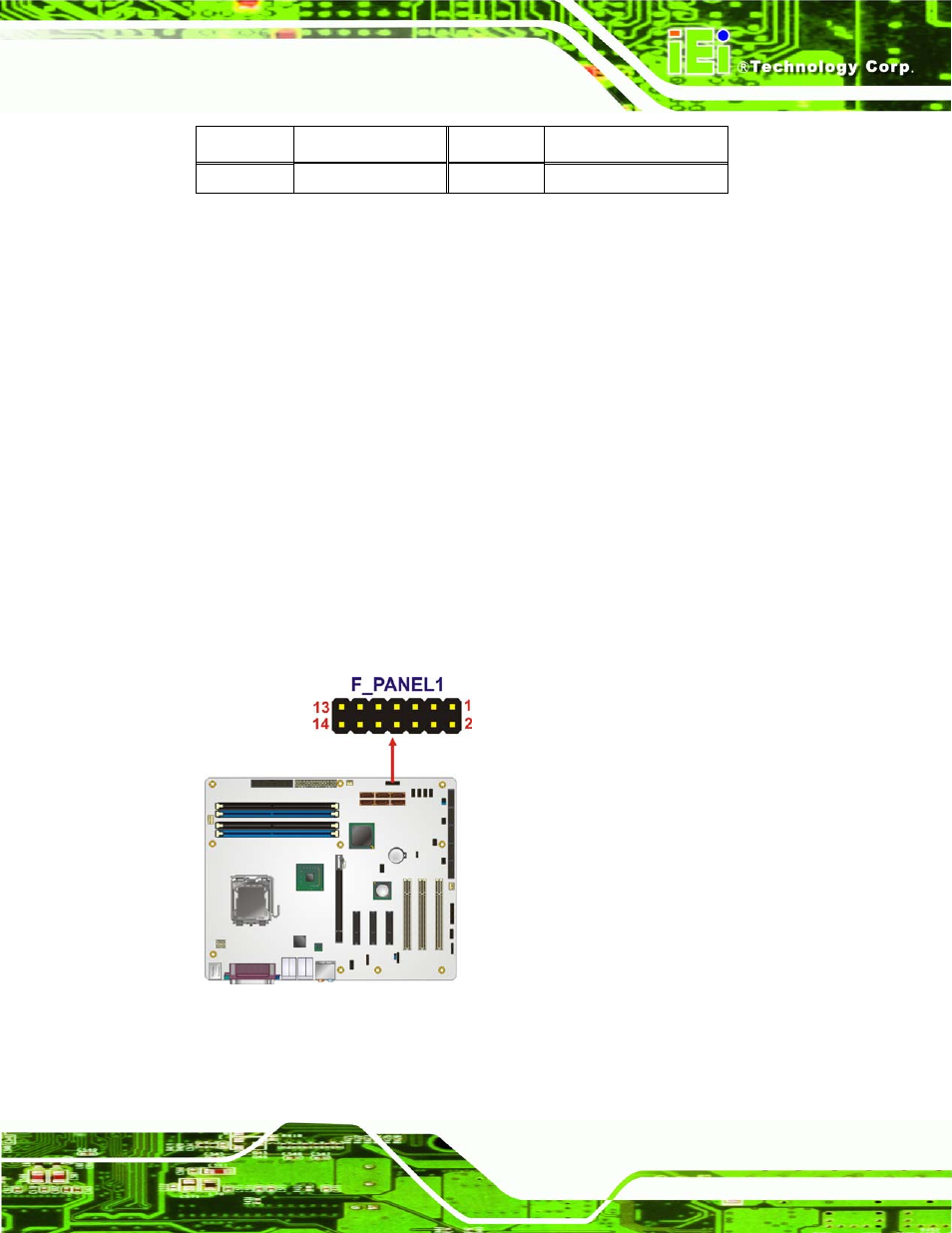

Figure 4-10: Front Panel Connector Pinout Locations
