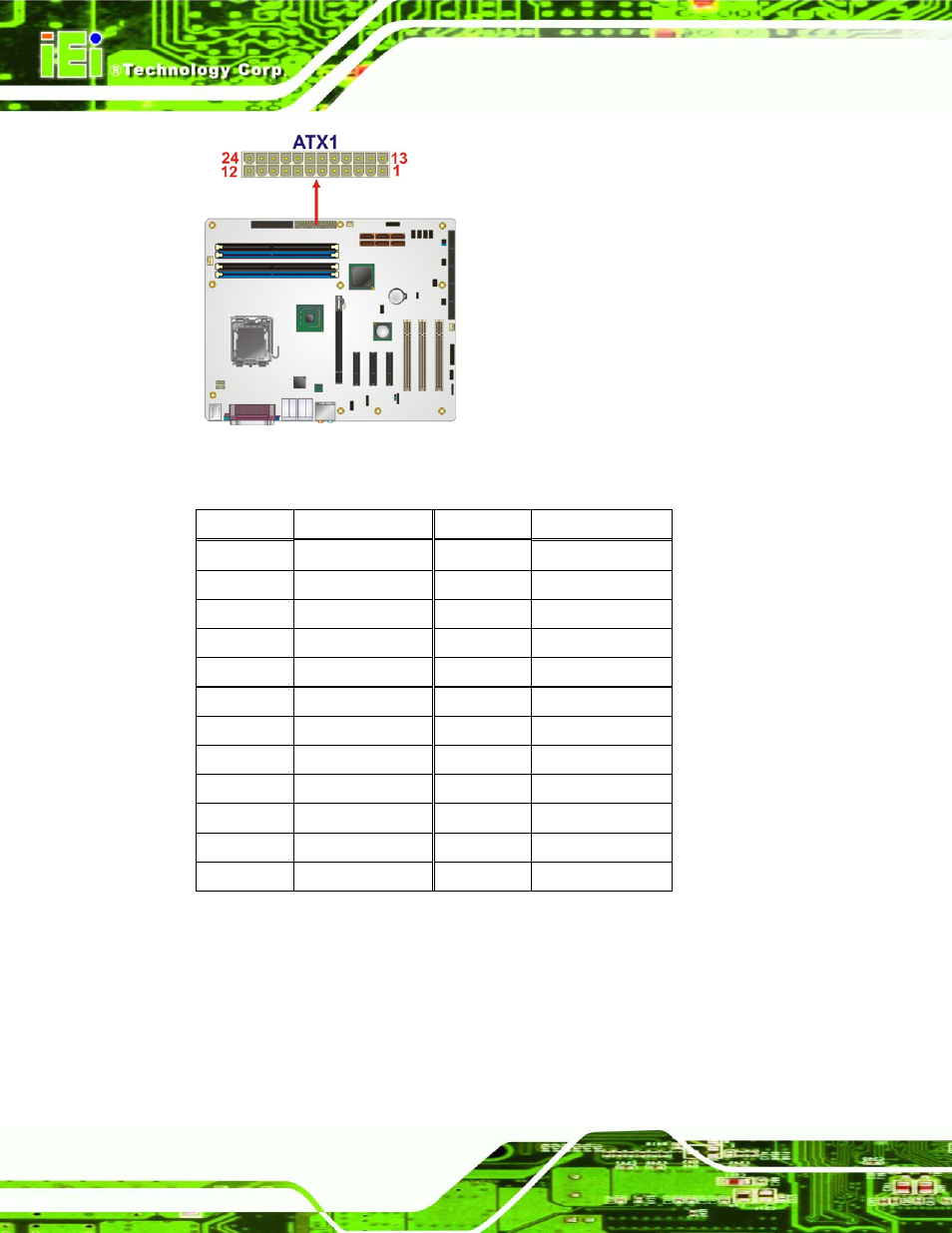

Figure 4-3: ATX Power Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 +3.3 V 13 +3.3 V
2 +3.3 V 14 -12 V
3 GND 15 GND
4 +5 V 16 PS-ON
5 GND 17 GND
6 +5 V 18 GND
7 GND 19 GND
8 NC 20 NC
9 +VCC5SB 21 +5 V
10 +12 V 22 +5 V
11 +12 V 23 +5 V
12 NC 24 GND
Table 4-4: ATX Power Connector Pinouts
4.2.3 Audio Connector
CN Label: FPAUDIO1
CN Type: 10-pin header
CN Location: See
869H869H
Figure 4-4
