IMBA-XQ354 Motherboard
Page 56

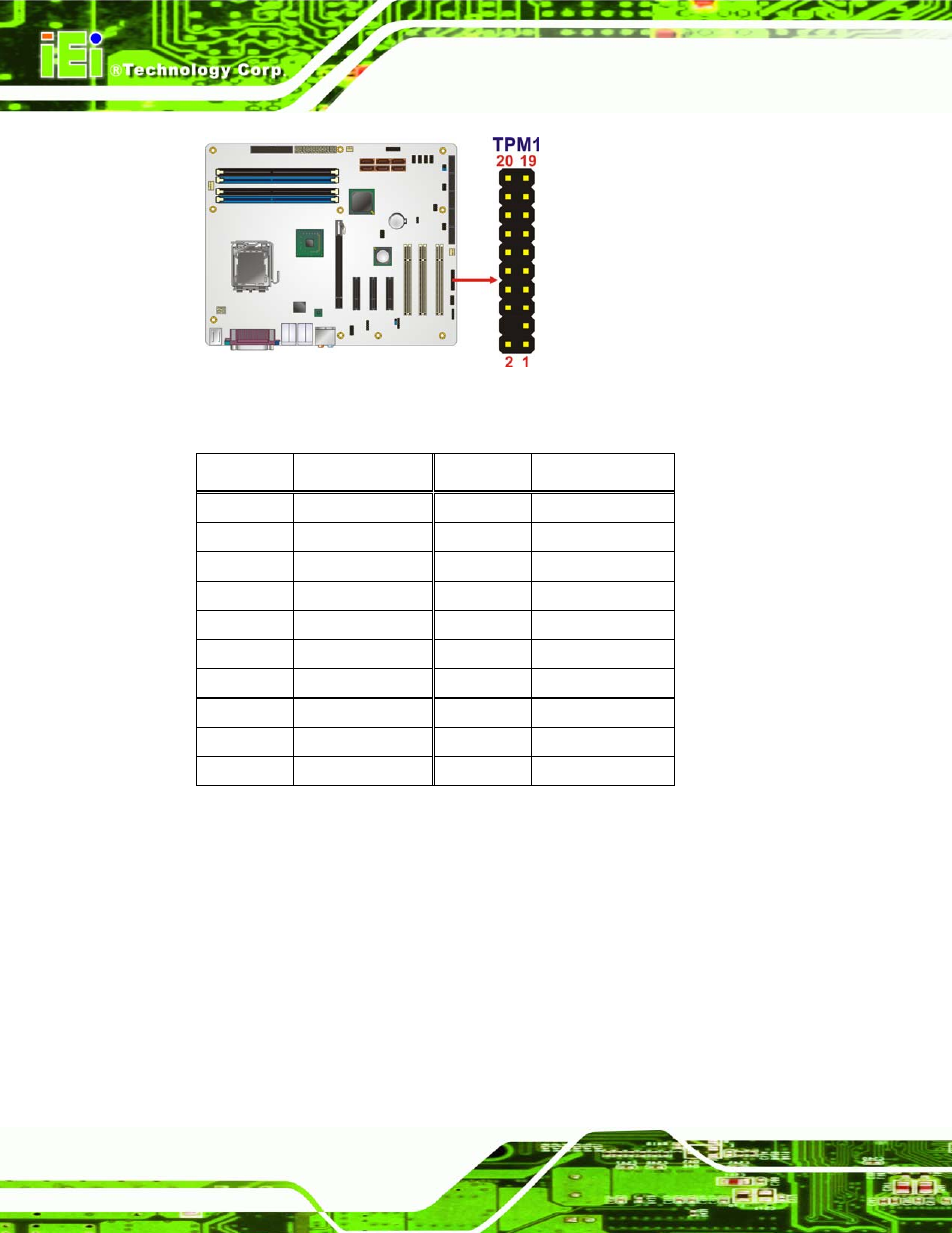

Figure 4-19: TPM Connector Pinout Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 LCLK 2 GND2
3 LFRAME# 4 KEY
5 LRESET# 6 +5 V
7 LAD3 8 LAD2
9 +3 V 10 LAD1
11 LAD0 12 GND3
13 SCL 14 SDA
15 SB3 V 16 SERIRQ
17 GND1 18 GLKRUN#
19 LPCPD# 20 LDRQ#
Table 4-21: TPM Connector Pinouts
4.2.19 USB Connectors
CN Label: USB45, USB67, USB89 and USB1011
CN Type: 8-pin header (2x4)
CN Location: See
902H902H
Figure 4-20
CN Pinouts: See
903H903H
Table 4-22
