IMBA-XQ354 Motherboard
Page 13

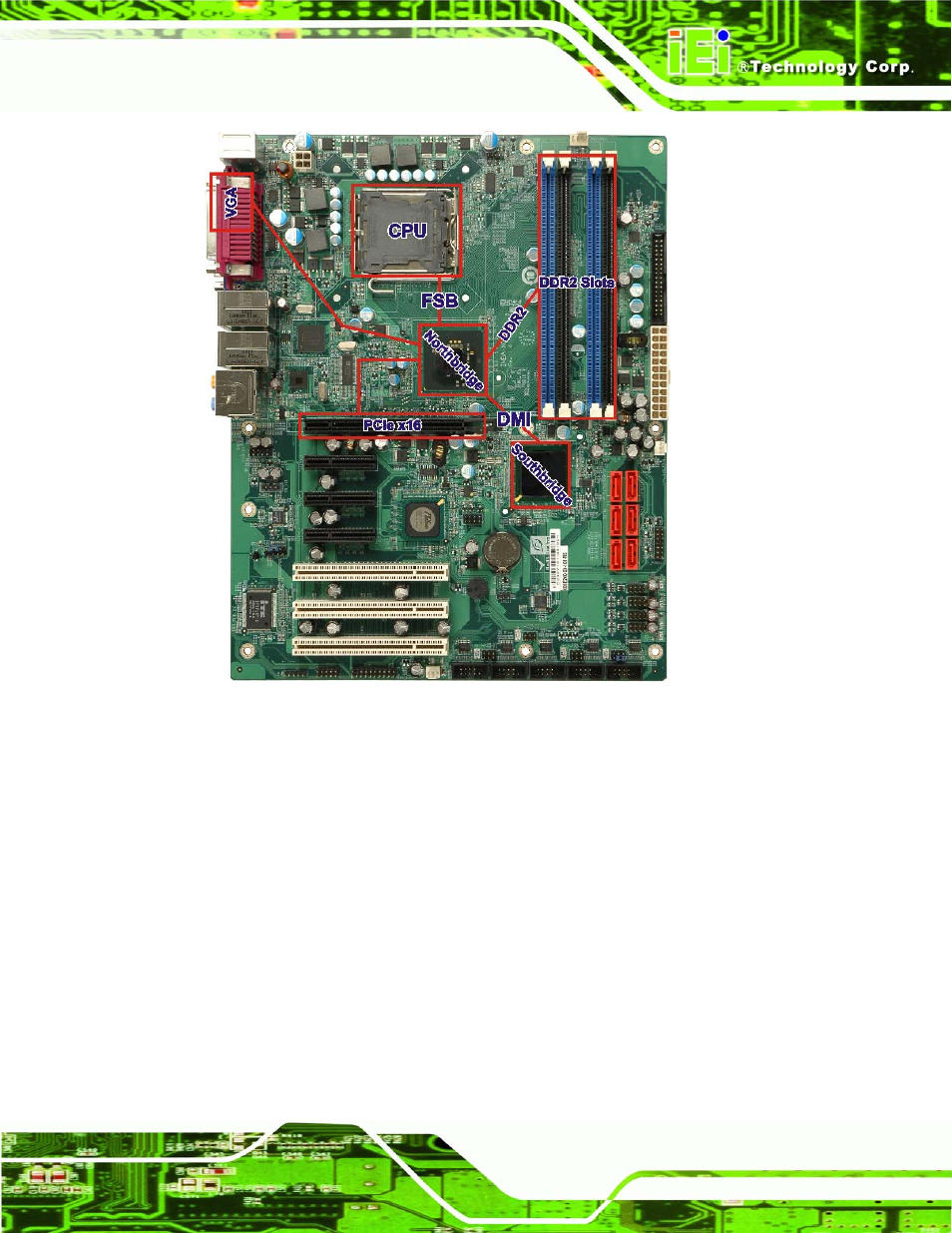

Figure 2-4: Northbridge Connections
2.5.1 Front Side Bus
The Intel® Q35Intel® Q35 Northbridge supports processors with the following FSB
speeds:
ƒ 800 MHz
ƒ 1066 MHz
ƒ 1333 MHz
The LGA775 socket, Intel® Q35Intel® Q35 Northbridge and the FSB are shown in
853H853H
Figure 2-4.
