IMBA-XQ354 Motherboard
Page 63

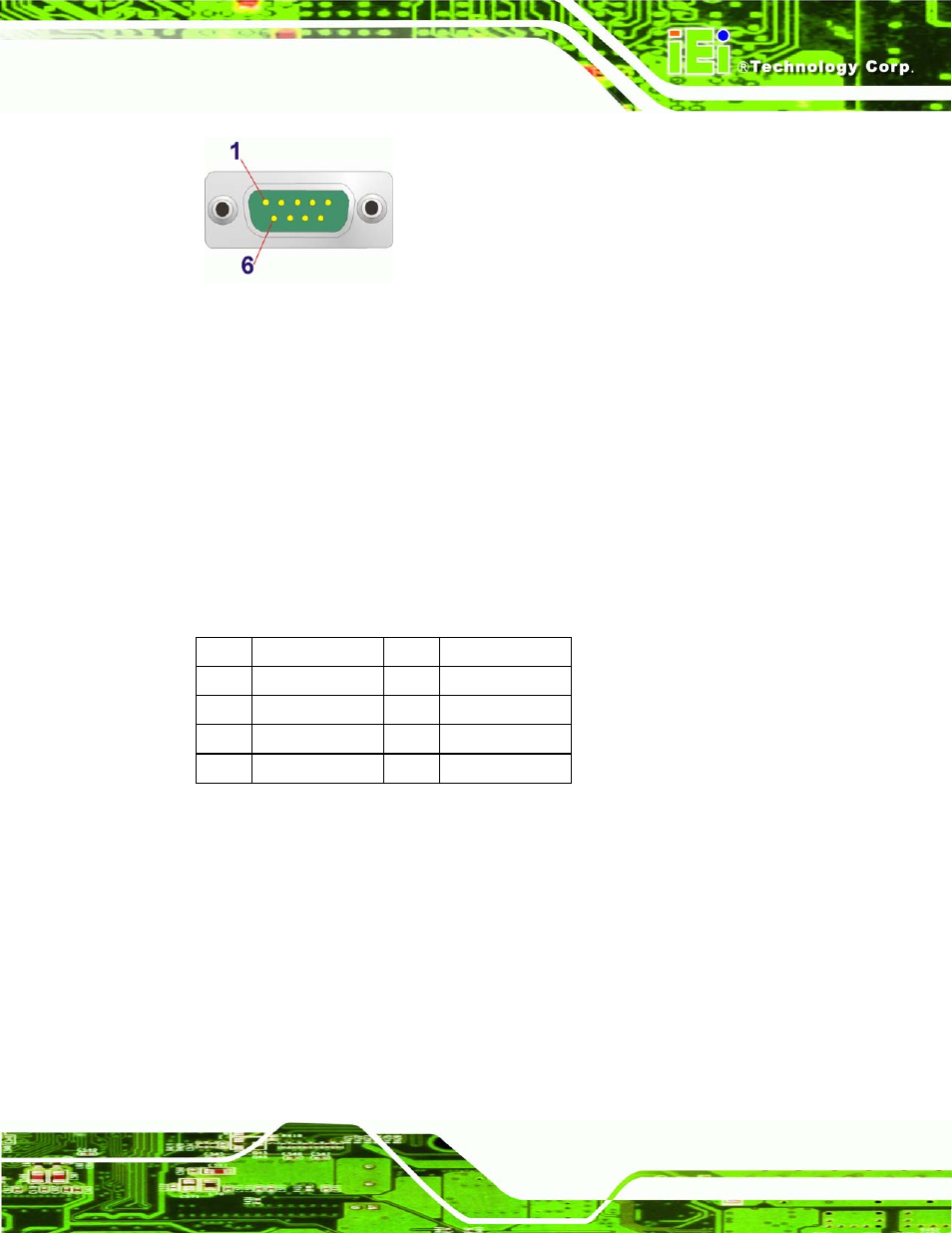

Figure 4-26: Serial Port Pinout Locations
4.3.6 USB Ports
CN Label: LAN1_USB01 and LAN2_USB23
CN Type: USB Combo ports
CN Location: See
917H917H
Figure 4-21
CN Pinouts: See
918H918H
Table 4-28
The USB combo port and LAN/USB combo port provides connectivity to five additional
USB devices. USB devices connect directly to the USB connectors on the rear panel.
PIN DESCRIPTION PIN DESCRIPTION
1 +5 V 5 +5 V
2 D3- 6 D4-
3 D3+ 7 D4+
4 GND 8 GND
Table 4-28: USB Connector Pinouts
4.3.7 VGA Connector
CN Label: VGA
CN Type: D-sub 15-pin female connector
CN Location: See
919H919H
Figure 4-21
CN Pinouts: See
920H920H
Figure 4-27 and
921H921H
Table 4-29
The standard 15-pin female VGA connector connects to a CRT or LCD monitor.
