IMBA-XQ354 Motherboard
Page 52
The six SATA drive connectors are each connected to a first generation SATA drive. First
generation SATA drives transfer data at speeds as high as 300 MB/s. The SATA drives
can be configured in a RAID configuration.

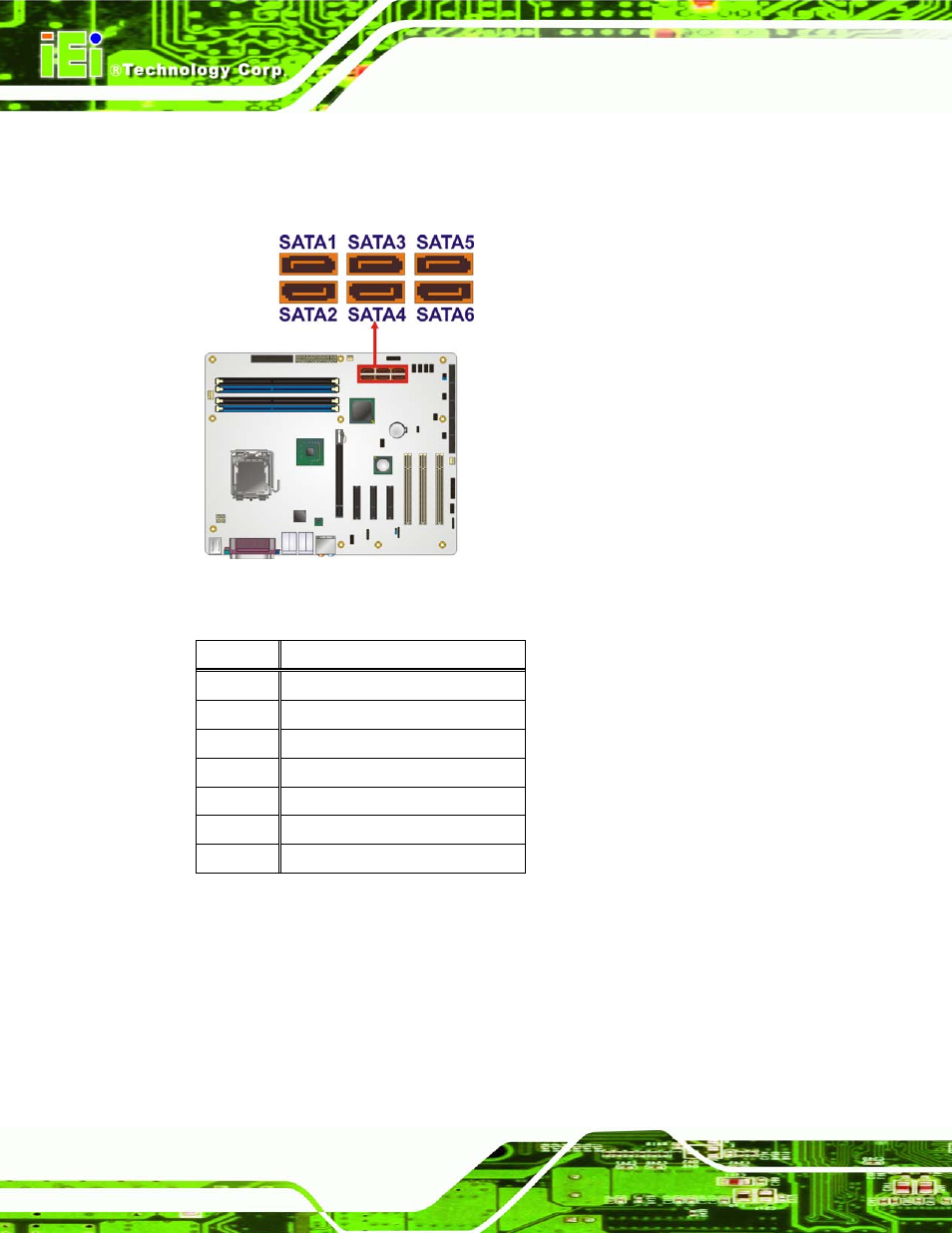

Figure 4-15: SATA Drive Connector Locations
PIN NO. DESCRIPTION
1 GND
2 TX+
3 TX-
4 GND
5 RX-
6 RX+
7 GND
Table 4-17: SATA Drive Connector Pinouts
4.2.15 SPDIF Connector
CN Label: SPDIF1
CN Type: 5-pin header
CN Location: See
894H894H
Figure 4-16
