IMB-Q354 uATX Motherboard
Page 73
4.3.4 Parallel Port, Serial Port and VGA Combo Connector
CN Label: 3IN1_DSUB1
CN Type: DB-25, DB-9 and DB-15
CN Location: See Figure 4-18
CN Pinouts: See Table 4-23, Table 4-24 and Table 4-25
A 25-pin parallel port connector, a male DB-9 serial port (COM1) and a female DB-15
VGA connector are integrated into a single EPIC connector as shown in Figure 4-18.
The IMB-Q354 includes one on-board parallel port accessed through one 25-pin D-type
female connector. The parallel port is usually connected to a printer. The connector is
show in Figure 4-22 and the pinouts are shown in Table 4-23.

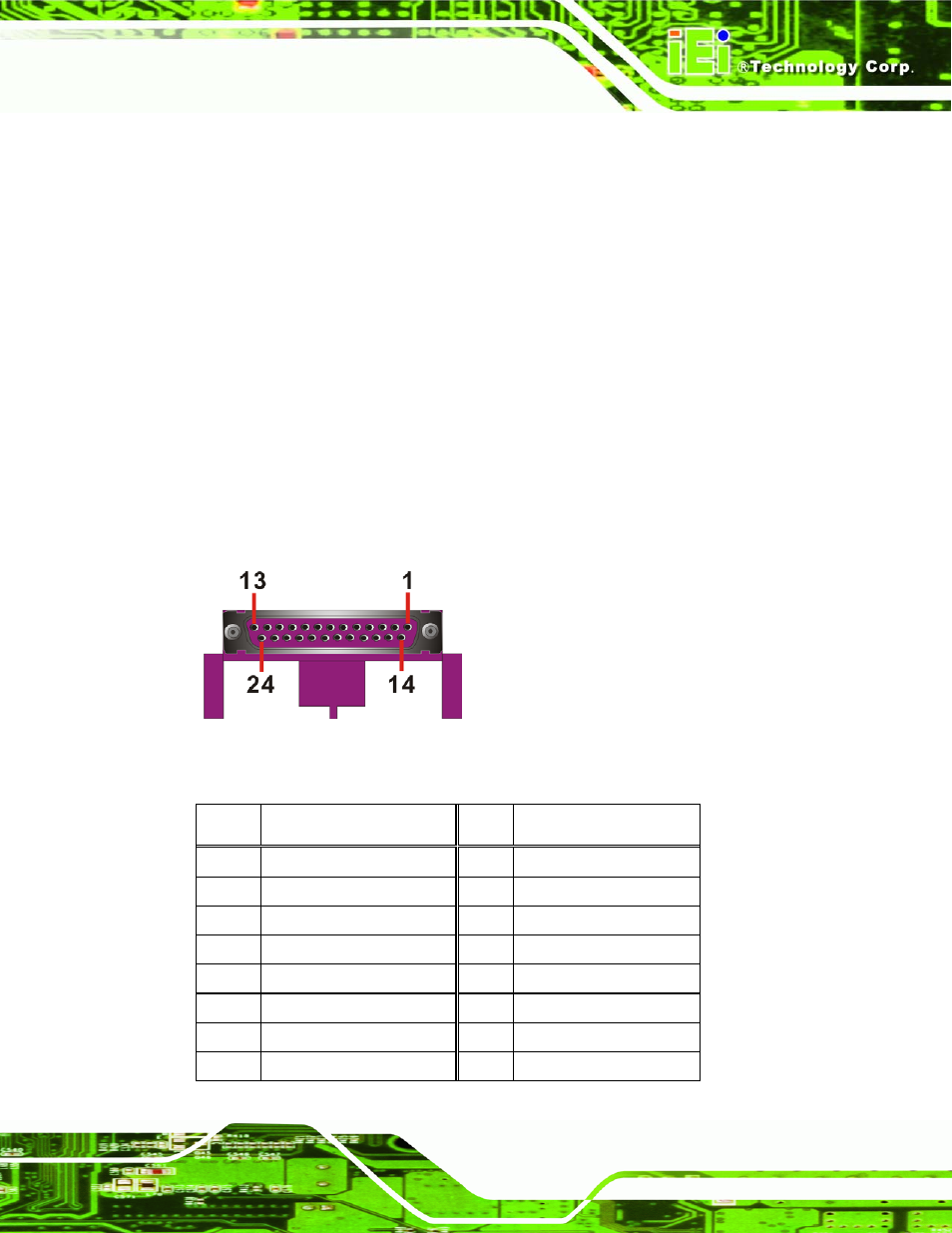

Figure 4-22 Parallel Port Connector Pinout Locations
PIN Description PIN Description
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
7 DATA 5 8 DATA 6
9 DATA 7 10 ACKNOWLEDGE
11 BUSY 12 PAPER EMPTY
13 PRINTER SELECT 14 AUTO FORM FEED #
15 ERROR# 16 INITIALIZE
