IMB-Q354 uATX Motherboard
Page 59
19 GND 20 STEP#
21 GND 22 WRITE DATA#
23 GND 24 WRITE GATE#
25 GND 26 TRACK 0#
27 GND 28 WRITE PROTECT#
29 GND 30 READ DATA#
31 GND 32 SIDE 1 SELECT#
33 GND 34 DISK CHANGE#
Table 4-9: 34-pin FDD Connector Pinouts
4.2.8 Front Audio Connector
CN Label: FP_AUDIO1
CN Type: 10-pin header (2x5)
CN Location: See Figure 4-9
CN Pinouts: See Table 4-10

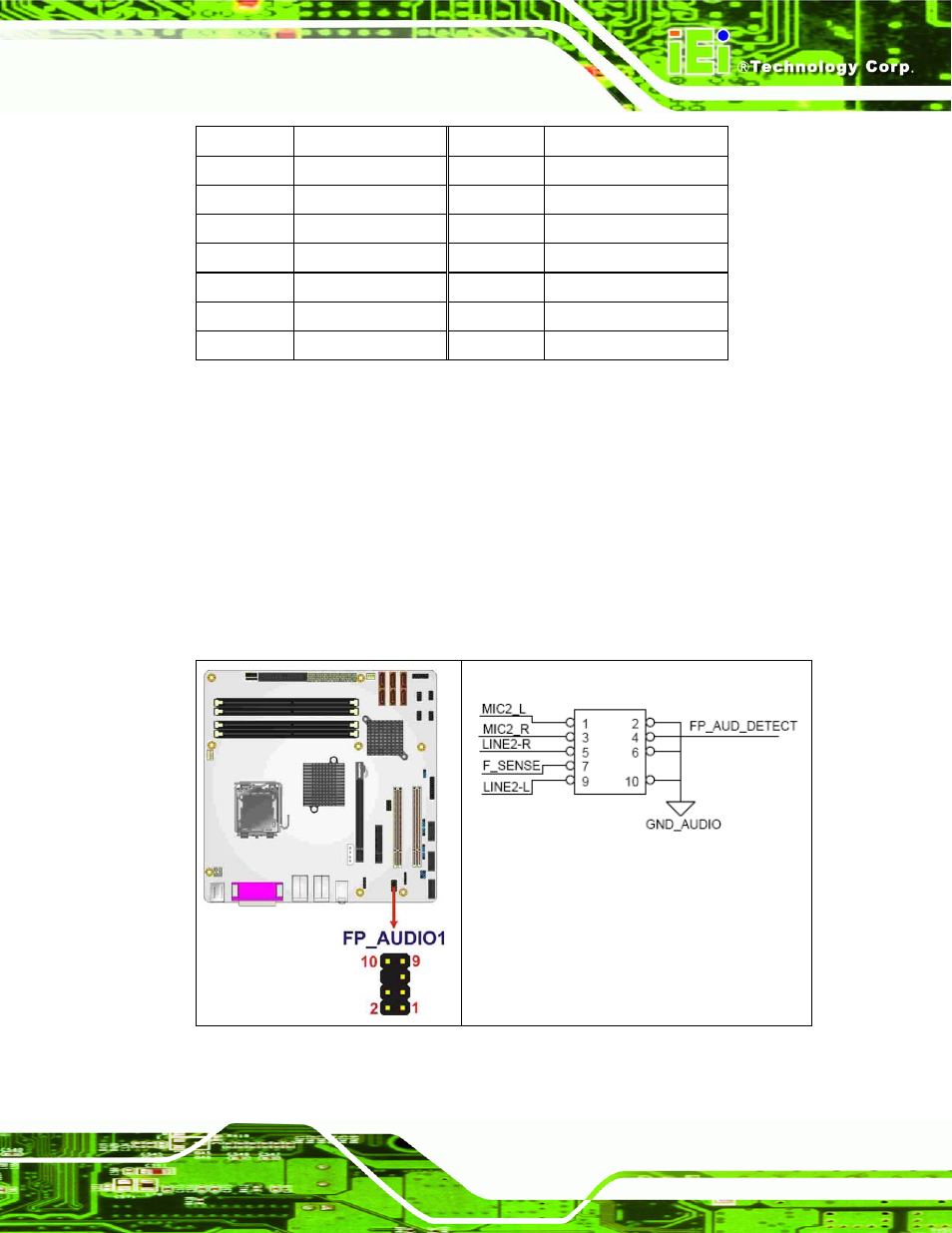

Figure 4-9: Front Audio Connector Location (10-pin)
