IMB-Q354 uATX Motherboard

Page 97

headers. See Figure 5-12. A key on the front of the cable connectors ensures

the connector can only be installed in one direction.

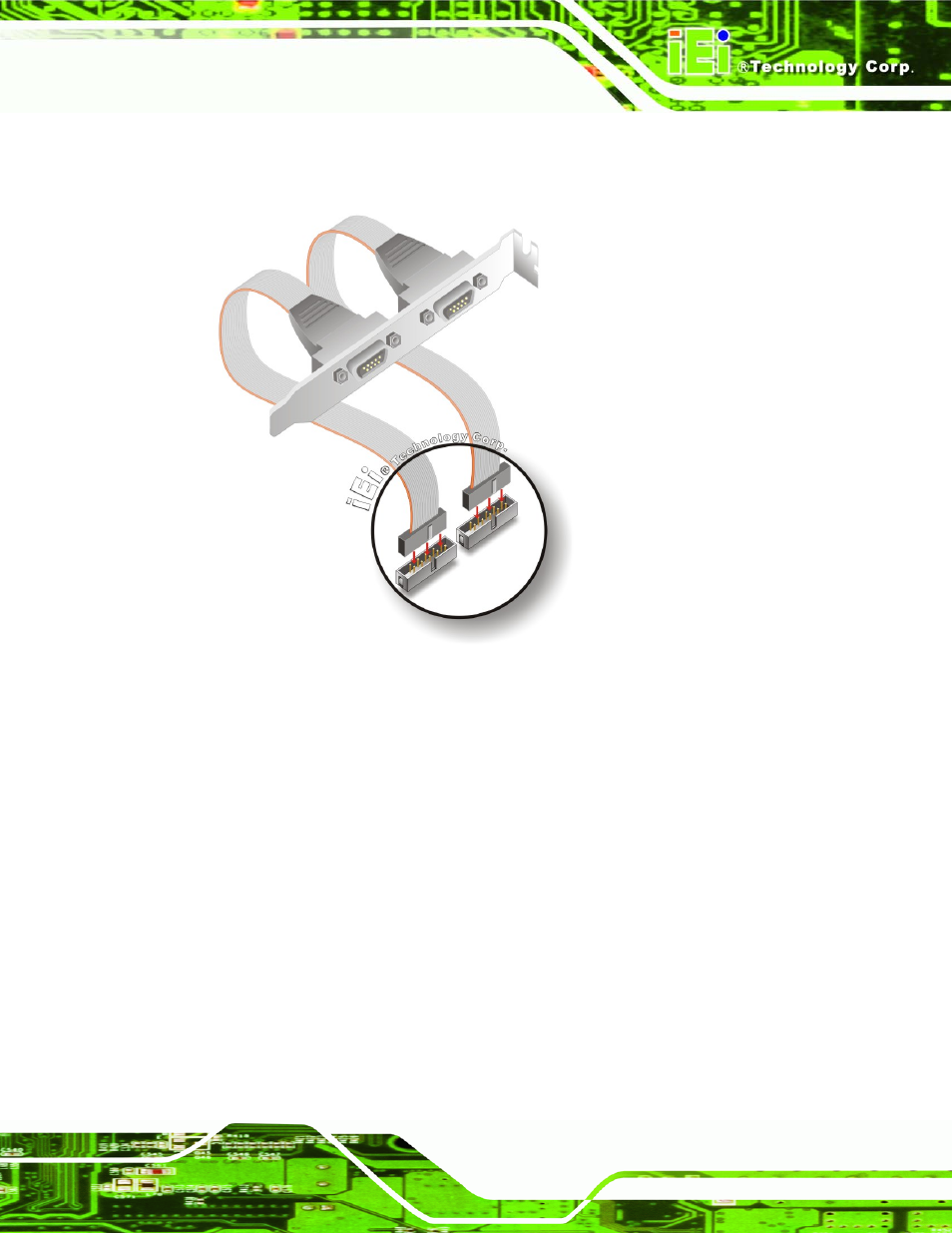

Figure 5-12: Dual RS-232 Cable Installation

Step 3:

Secure the bracket. The dual RS-232 connector has two D-sub 9 male

connectors secured on a bracket. To secure the bracket to the chassis please

refer to the reference material that came with the chassis

Step 0:

5.7.3 SATA Drive Connection

The IMB-Q354 is shipped with two SATA drive cables and one SATA drive power cable.

To connect the SATA drives to the connectors, please follow the steps below.

Step 1:

Locate the connectors. The locations of the SATA drive connectors are shown

in Chapter 3.

Step 2:

Insert the cable connector. Press the clip on the connector at the end of the

SATA cable and insert the cable connector into the onboard SATA drive
