4.2.14 SPDIF Connector

CN Label:

SPDIF1

CN Type:

5-pin header (1x5)

CN Location:

See Figure 4-15

CN Pinouts:

See Table 4-16

Use the SPDIF connector to connect digital audio devices to the system.

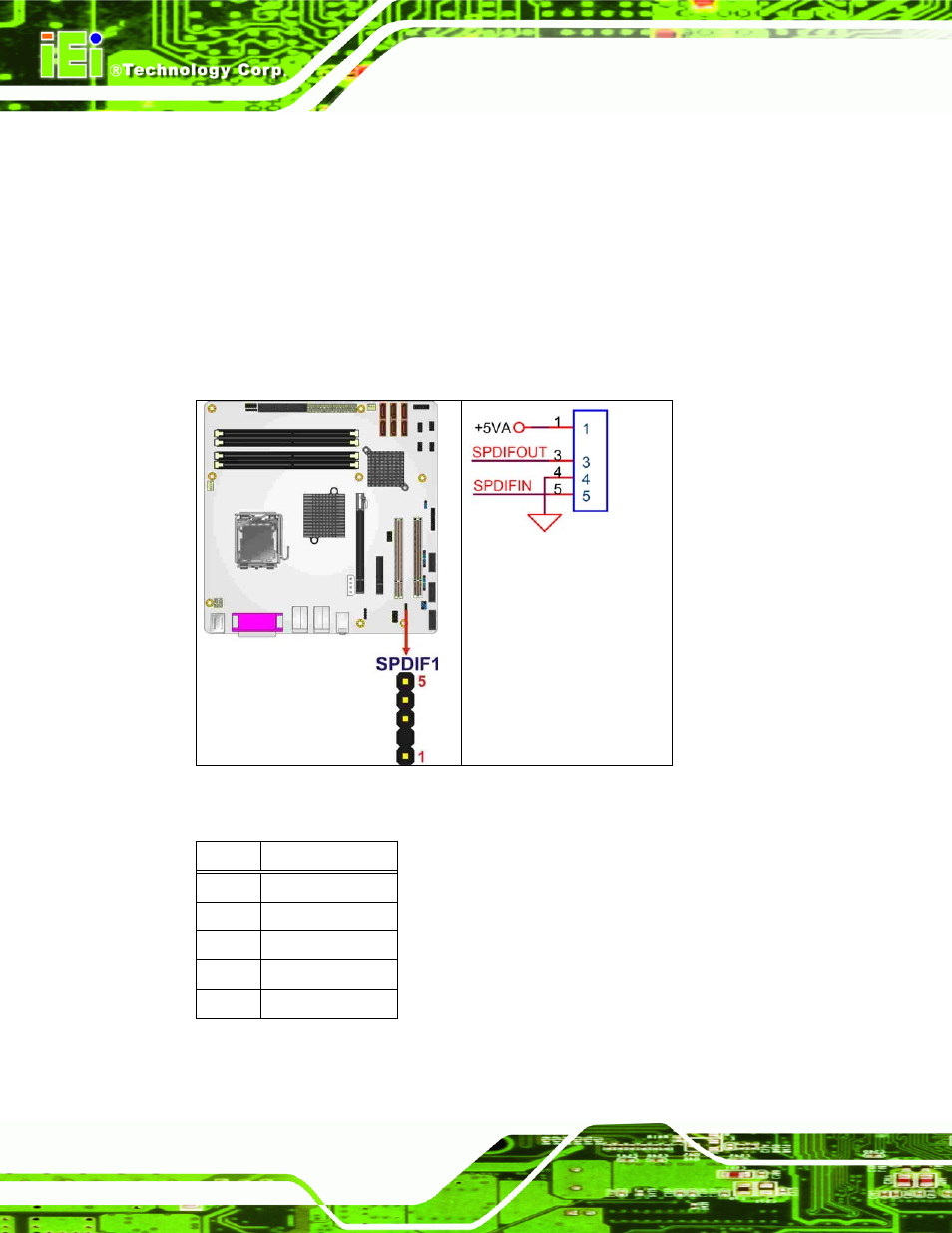

Figure 4-15: SPDIF Connector Location

PIN DESCRIPTION

1 5V

2 NC

3 SPDIF

OUT

4 GND

5 SPDIF

IN

Table 4-16: SPDIF Connector Pinouts
