IMB-Q354 uATX Motherboard

Page 54

4.2.3 CPU Power Connector

CN Label:

CPU12V1

CN Type:

4-pin power connector (1x4)

CN Location:

See Figure 4-4

CN Pinouts:

See Table 4-5

The 4-pin CPU power connector is connected to an ATX power supply and powers the

CPU.

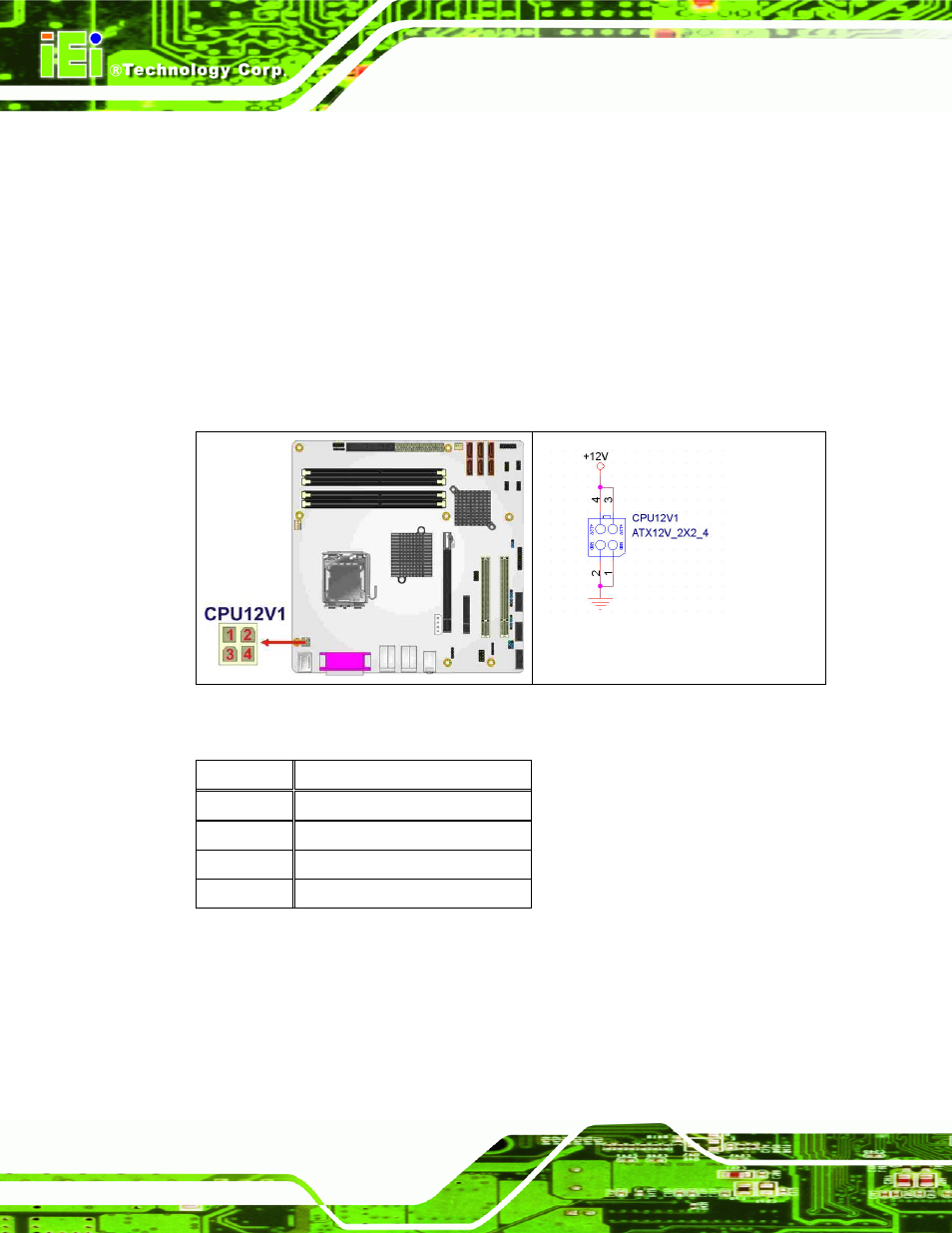

Figure 4-4: CPU Power Connector Location

PIN NO.

DESCRIPTION

1 GND

2 GND

3 +12V

4 +12V

Table 4-5: CPU Power Connector Pinouts

4.2.4 Digital Input/Output (DIO) Connector

CN Label:

DIO1

CN Type:

10-pin header (2x5)
