IMB-Q354 uATX Motherboard
Page 124
720 KB 31/2”
1.44 MB 31/2’
2.88 MB 31/2”
6.3.4 Super IO Configuration
Use the Super IO Configuration menu (BIOS Menu 7) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.

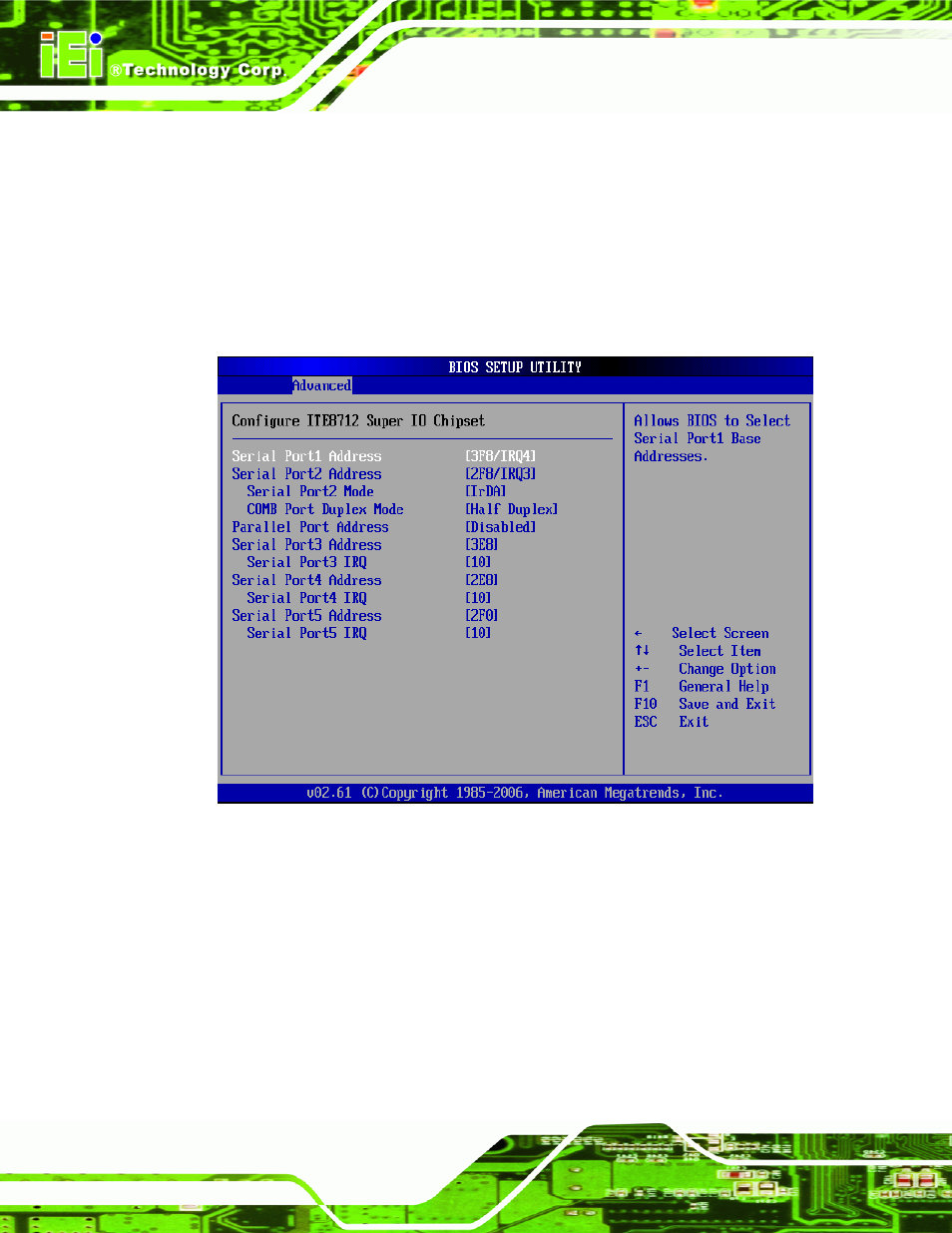

BIOS Menu 7: Super IO Configuration
Serial Port1 Address [3F8/IRQ4]
Use the Serial Port1 Address option to select the Serial Port 1 base address.
Disabled No base address is assigned to Serial Port 1
3F8/IRQ4 D EFAULT Serial Port 1 I/O port address is 3F8 and the interrupt
address is IRQ4
