IMB-Q354 uATX Motherboard

Page 16

1333 MHz

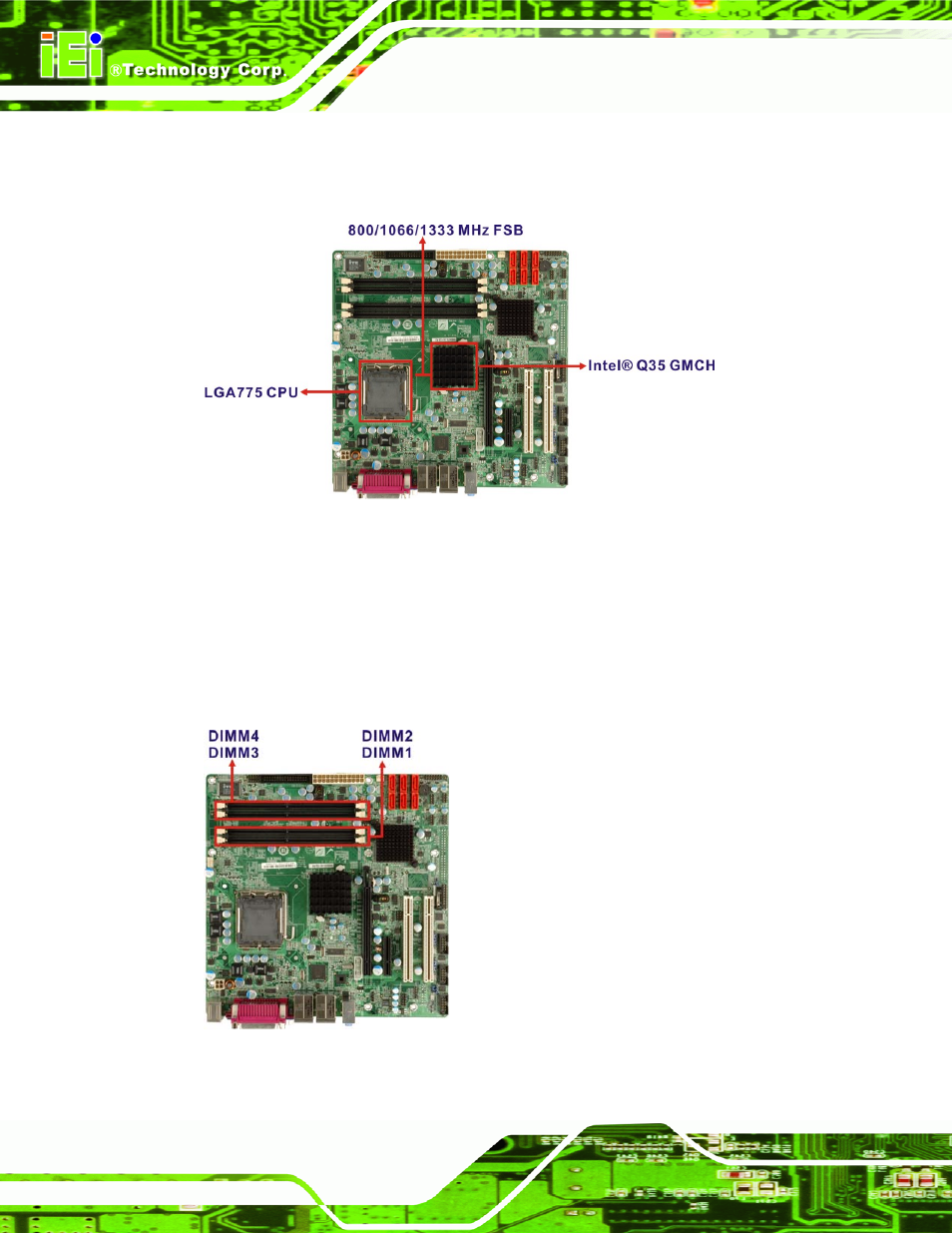

The LGA775 socket, Intel® Q35 Northbridge and the FSB are shown in Figure 2-4.

Figure 2-4: Front Side Bus (FSB)

2.4.3 Intel® Q35 Memory Controller

The memory controller on the Intel® Q35 Northbridge can support up to 8.0 GB of DDR2

SDRAM. Four DDR2 SDRAM DIMM sockets on the IMB-Q354 are interfaced to the Intel®

Q35 Northbridge memory controller. The DDR2 sockets are shown in Figure 2-5.

Figure 2-5: DDR2 DIMM Sockets
