IMB-Q354 uATX Motherboard
Page 32

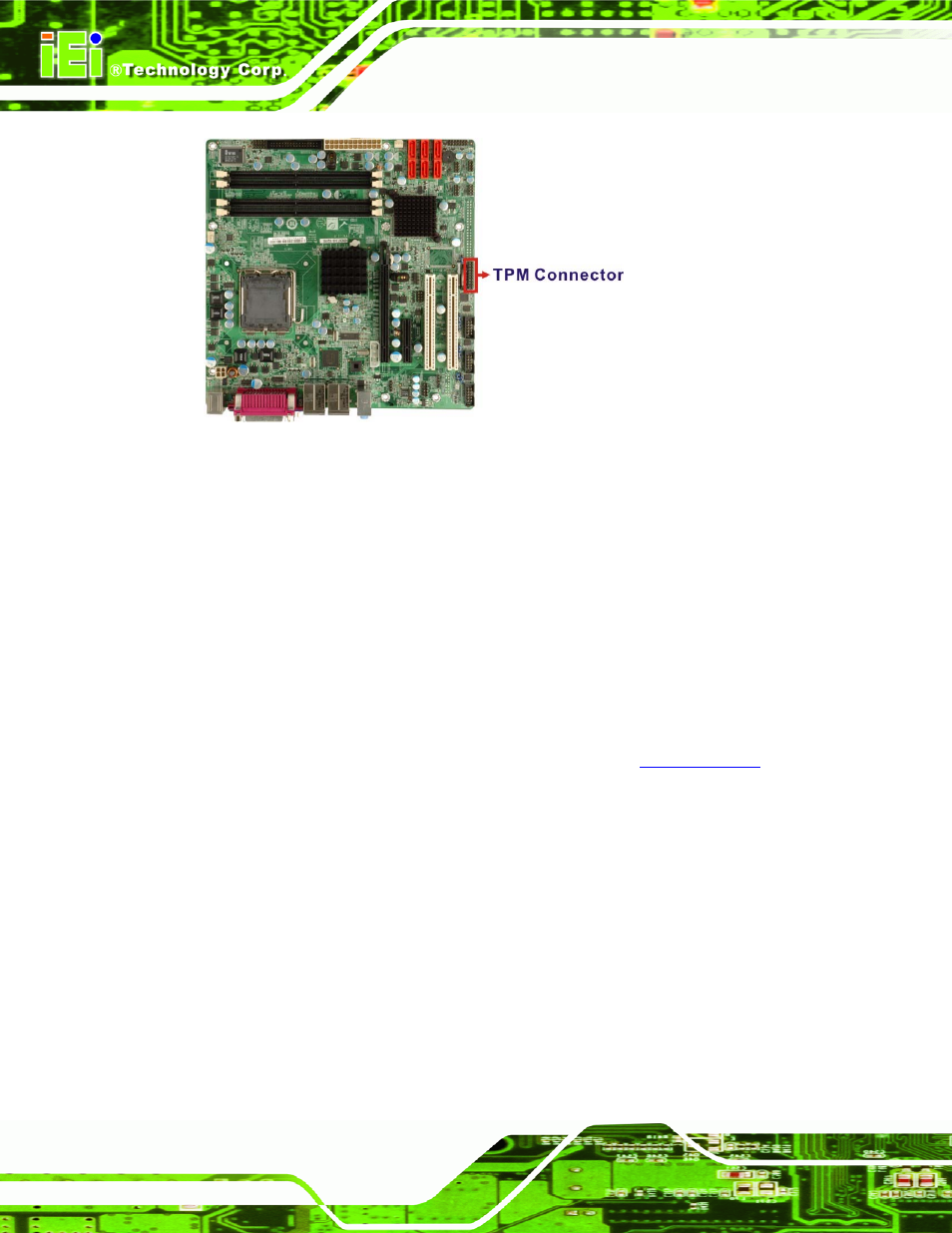

Figure 2-16: TPM Connector
The Intel® ICH9DO Southbridge supports TPM version 1.1 and TPM version 1.2 devices
for enhanced security. Three TPM are available from IEI. The three IEI TPM are listed
below:
Infineon TPM module
Sinosun TPM module
Winbond TPM module
For more information about these modules please refer to Chapter 3 or contact the
IMB-Q354 reseller or vendor. Alternatively, please contact IEI at [email protected] .
2.8.3 Super I/O chipset
The ITE IT8712F Super I/O chipset is connected to the Intel® ICH9DO Southbridge
through the LPC bus. ITE IT8712F Super I/O chipset is shown in Figure 2-17 below.
