IMB-Q354 uATX Motherboard

Page 61

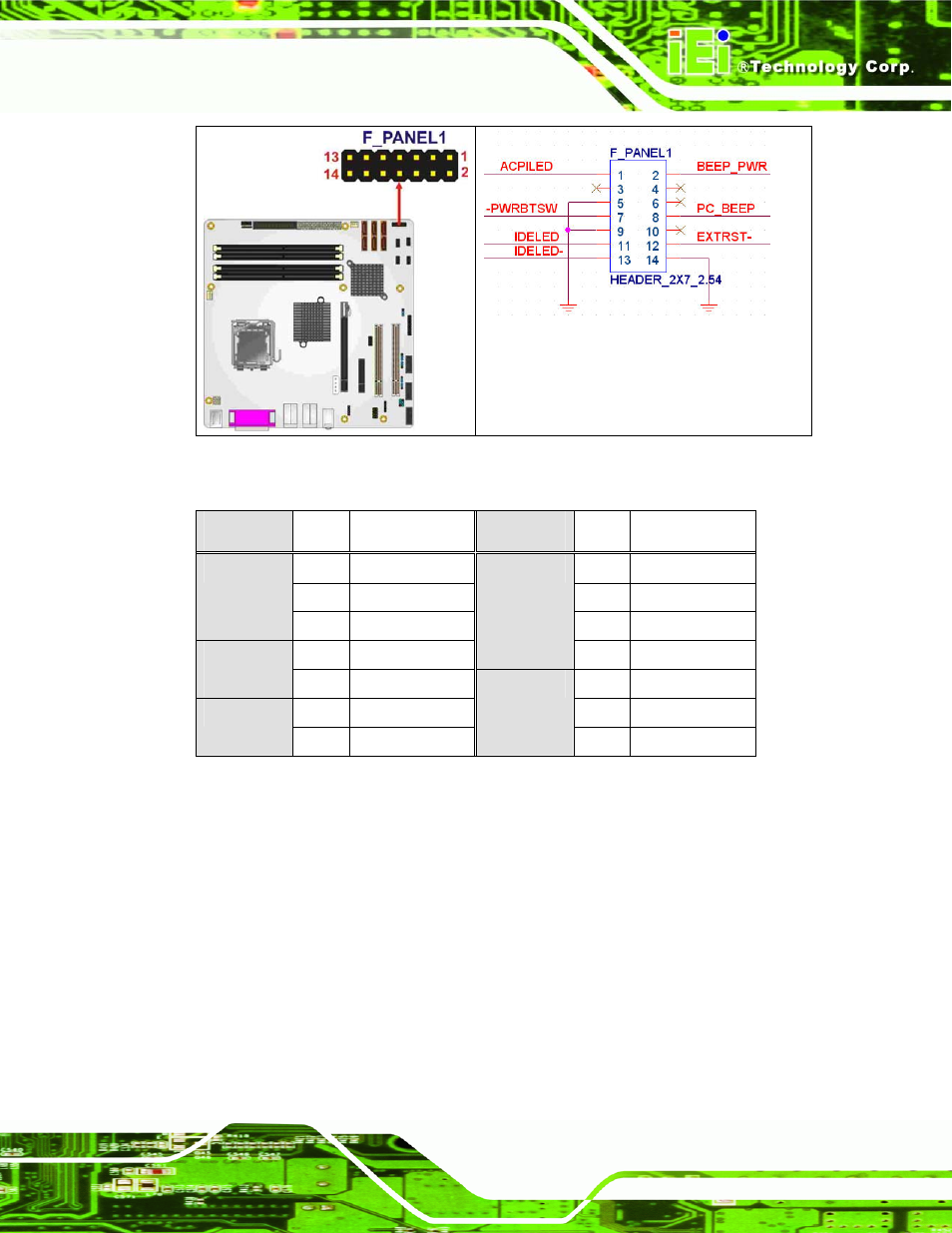

Figure 4-10: Front Panel Connector Pinout Locations (14-pin)

FUNCTION PIN DESCRIPTION

FUNCTION

PIN DESCRIPTION

1 +5V

2 +5V

3 N/C

4 N/C

Power LED

5 GROUND

6 N/C

7 PWRBTN+

Speaker

8 SPEAKER

Power

Button

9 PWRBTN-

10

N/C

11 +5V

12 RESET-

HDD LED

13 IDE

LED-

Reset

14 GROUND

Table 4-11: Front Panel Connector Pinouts (14-pin)

4.2.10 Infrared Interface Connector

CN Label:

IR1

CN Type:

5-pin header (1x5)

CN Location:

See Figure 4-11

CN Pinouts:

See Table 4-12

The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift

Key Infrared (ASKIR) interfaces.
