IMB-Q354 uATX Motherboard

Page 67

4.2.15 Trusted Platform Module (TPM) Connector

CN Label:

TPM1

CN Type:

40-pin header (2x20)

CN Location:

See Figure 4-16

CN Pinouts:

See Table 4-17

The Trusted Platform Module (TPM) connector secures the system on bootup. An optional

TPM (see packing list in Chapter 3) can be connected to the TPM connector.

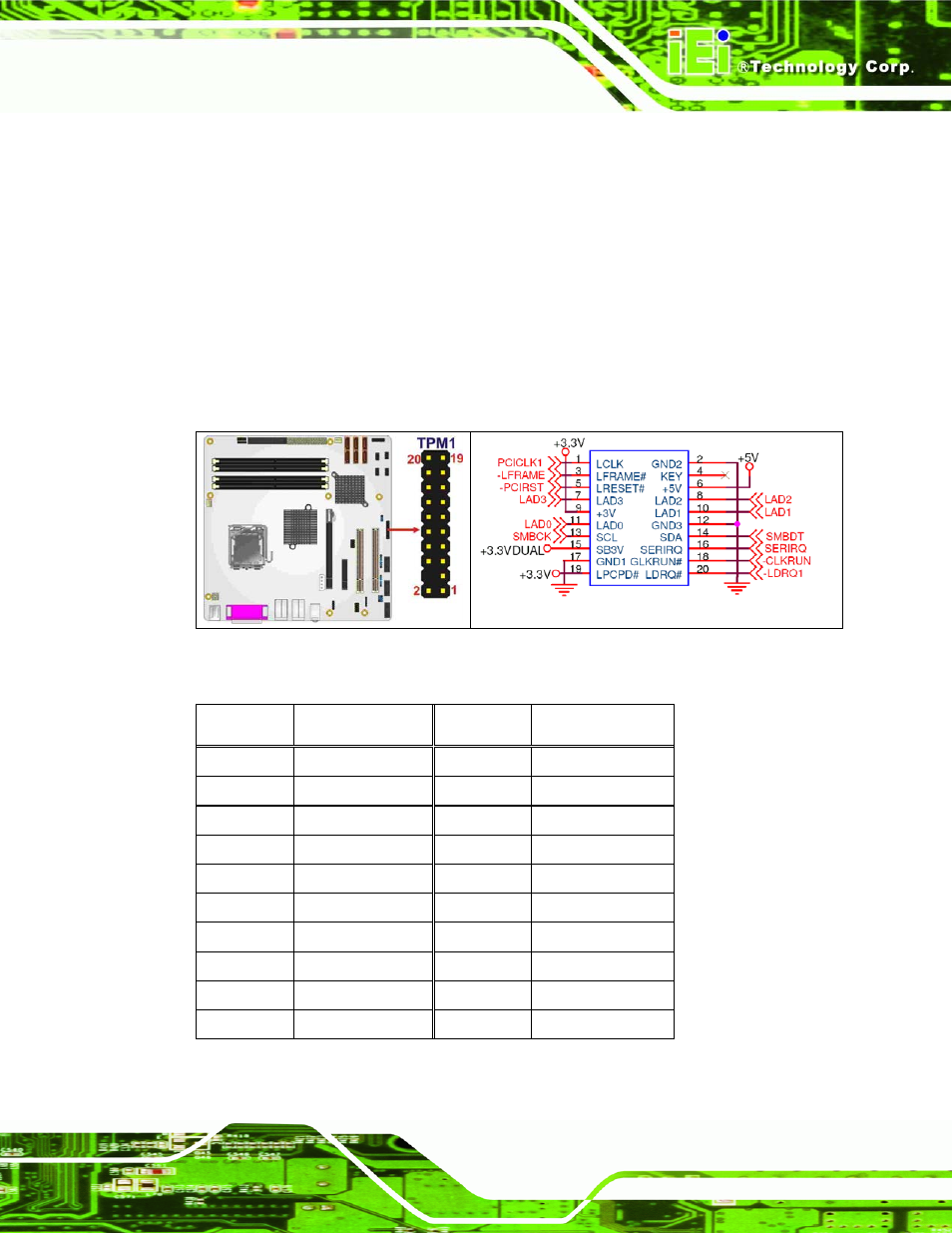

Figure 4-16: TPM Connector Location

PIN NO.

DESCRIPTION

PIN NO.

DESCRIPTION

1 FWHPCLK

2 GND

3 LFRAME#

4 KEY

5 PCIRST# 6 VCC

7 LAD3

8 LAD2

9 VCC3

10

LAD1

11 LAD0

12 GND

13 SMBCLK 14 SMBDATA

15 3VDUAL 16 SERIRQ

17 GND

18 CLKRUN#

19 LPCPD# 20 LDRQ#

Table 4-17: TPM Connector Pinouts
