IMB-Q354 uATX Motherboard
Page 18
2.4.5 Intel® Q35 Graphics and Display Features
NOTE:
The Intel® Q35 Graphics and Display Features can be configured in
the Northbridge BIOS configuration screen. Please refer to Section
6.7.1 on page 152.
The Intel® Q35 GMCH integrated graphics device (IGD) has 3D, 2D and video capabilities.
The Unified Memory Architecture (UMA) uses up to 256 MB of Dynamic Video Memory
Technology (DVMT) for graphics memory. External graphics accelerators on the PCIe
graphics (PEG) port are supported but cannot work simultaneously with the IGD.
2.4.6 Intel® Q35 Analog Display Capability
A single external female DB-15 (VGA) connector interfaces an analog display to an analog

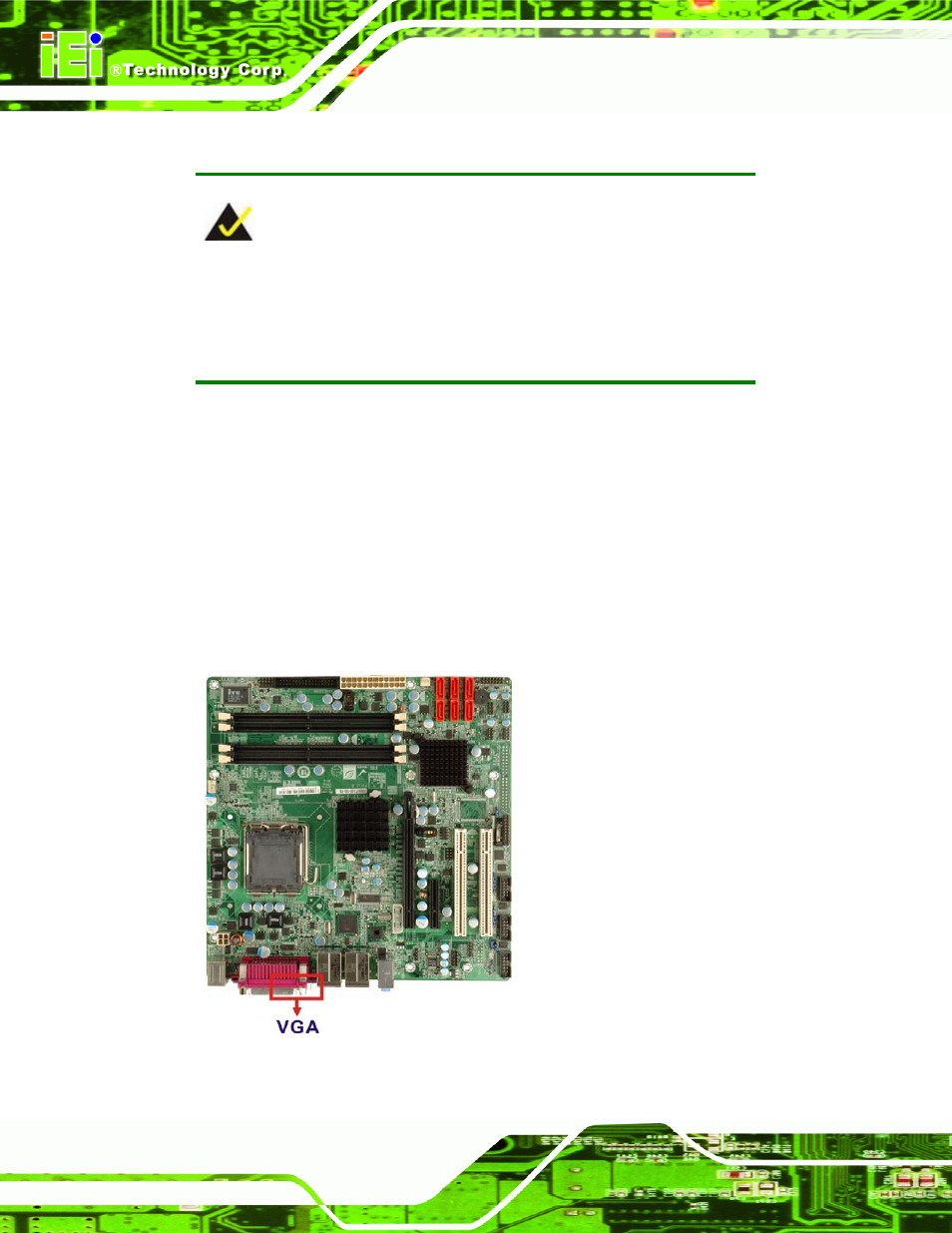

CRT port on the Intel® Q35 GMCH. The VGA connector is shown in Figure 2-6.
Figure 2-6: VGA Connector
