devices.
Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
Microphone (Pink): Connects a microphone.

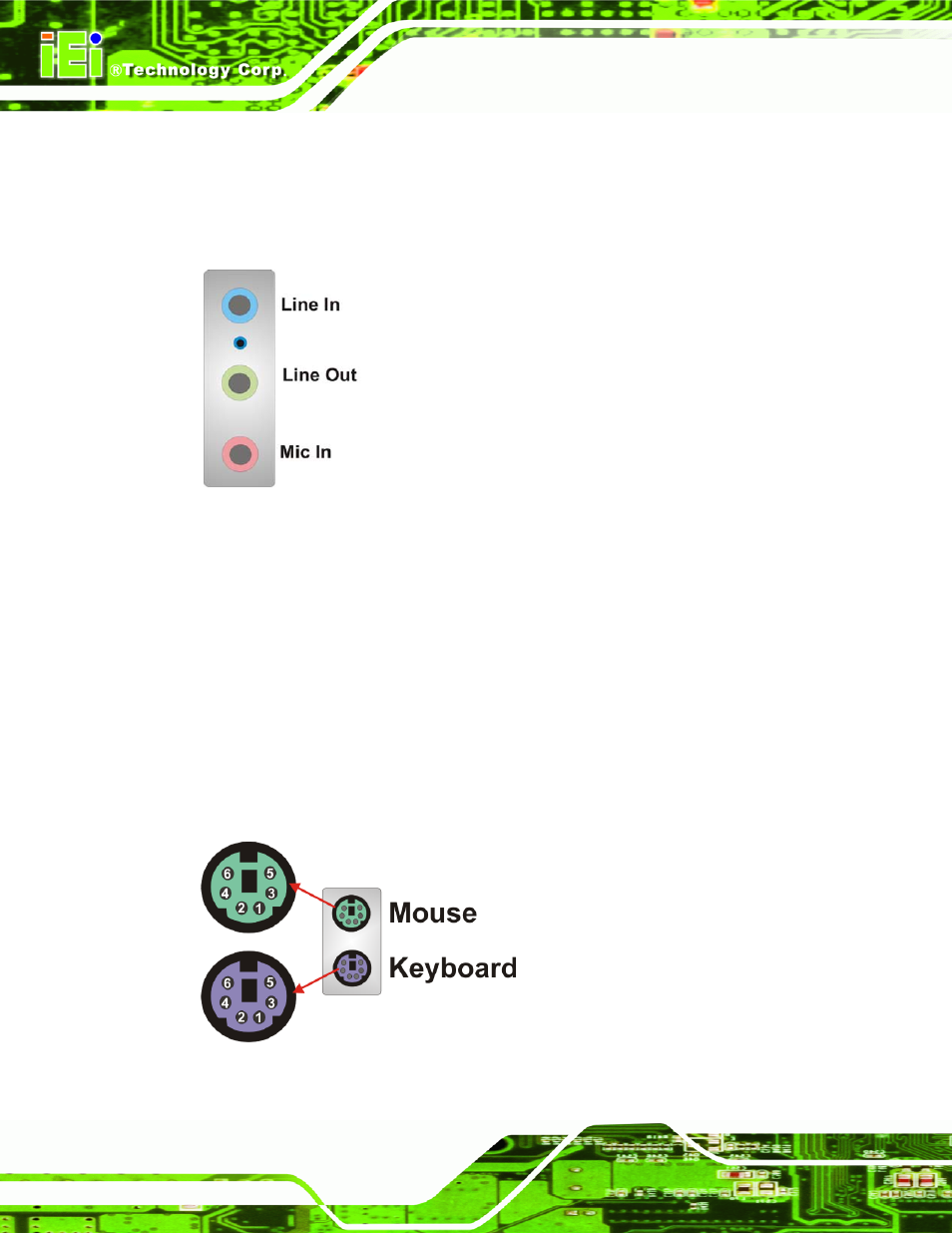

Figure 4-19: Audio Connector
4.3.2 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type: Dual PS/2
CN Location: See Figure 4-18
CN Pinouts: See Figure 4-20 and Table 4-19
The IMB-Q354 keyboard and mouse connectors are standard PS/2 connectors.
Figure 4-20: PS/2 Pinouts
