6.3.5 Hardware Health Configuration
The Hardware Health Configuration menu (BIOS Menu 8) shows the operating
temperature, fan speeds and system voltages.

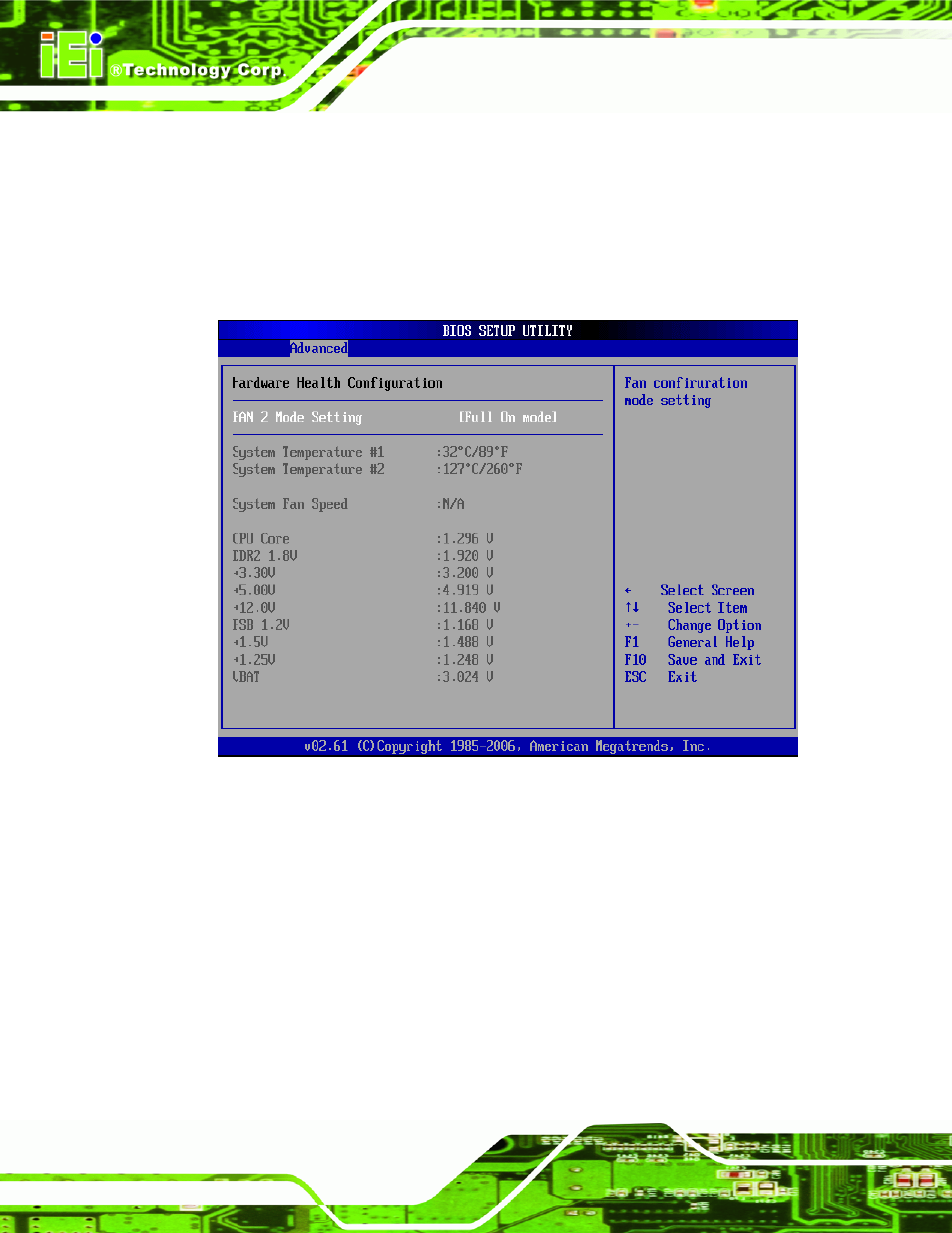

BIOS Menu 8: Hardware Health Configuration
FAN 2 Mode Setting [Full On Mode]
Use the FAN 2 Mode Setting option to configure the second fan.
Full On Mode
Fan is on all the time
Automatic mode
D
EFAULT
Fan is off when the temperature is low
enough. Parameters must be set by the
user.
