IMB-Q354 uATX Motherboard
Page 23

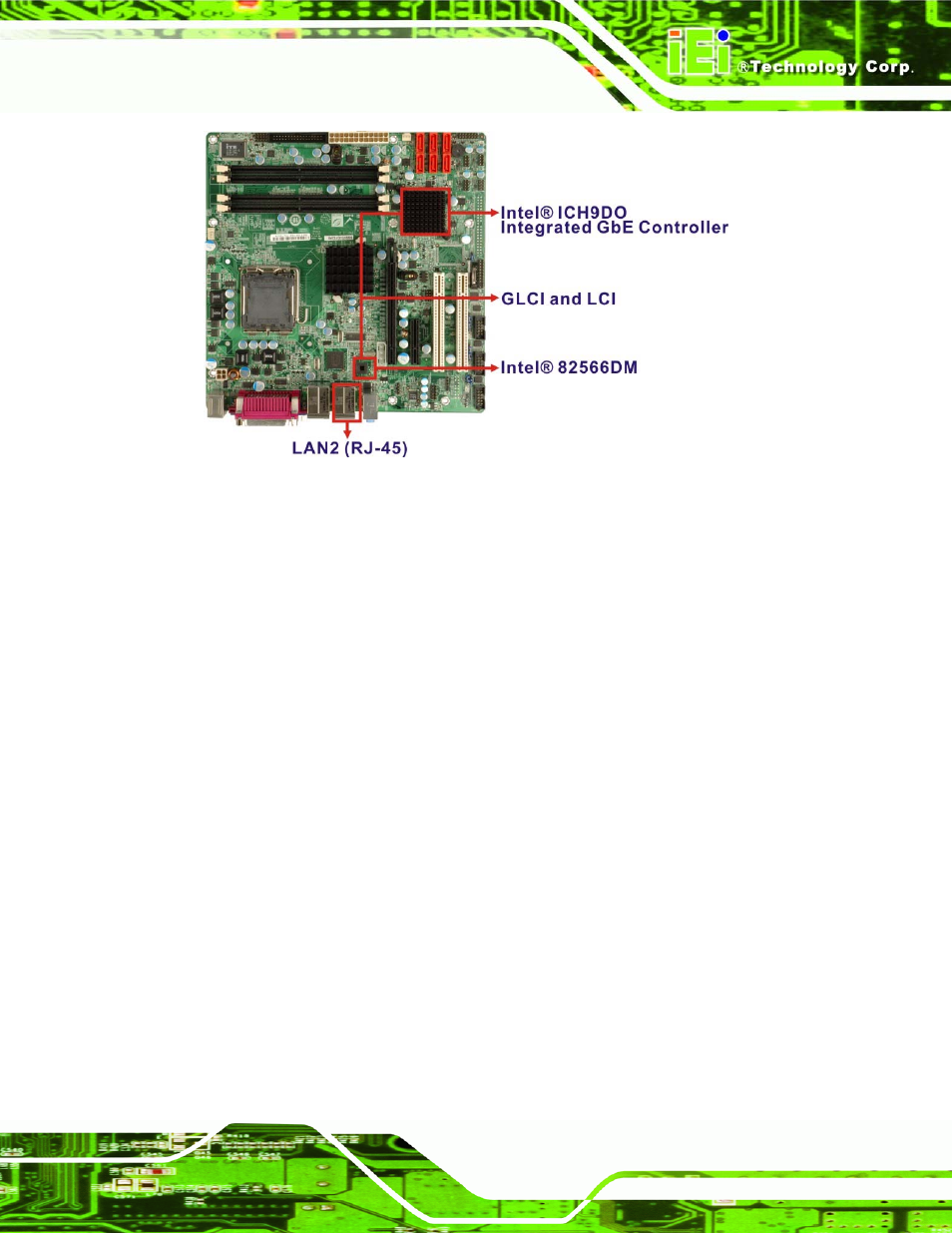

Figure 2-9: Intel® 82566DM Gigabit LAN Connect Device
Some of the features of the Intel® 82556DM are listed below:
10 Mbps, 100 Mbps, or 1000 Mbps
Supports Intel® Active Management Technology
Supports Intel® Virtualization Technology through the Intel® Virtual Gigabit
Network Connection.
Can support legacy ASF2.0.
Shared SPI flash with system BIOS
Integrated linear voltage regulator
TCP/UDP checksum and segmentation offload
Receive side scaling
Dual TX and RX queues
802.1p and 802.1q
2.5.5 Intel
®
ICH9DO Low Pin Count (LPC) Interface
The ICH9DO LPC interface complies with the LPC 1.1 specifications. The LPC bus from
the ICH9DO is connected to the following components:
BIOS chipset
Super I/O chipset
