IMB-Q354 uATX Motherboard

Page 92

Load Optimal Defaults

Load Failsafe Defaults.

After having done one of the above, save the changes and exit the CMOS Setup menu.

The clear CMOS jumper settings are shown in Table 5-2.

Clear CMOS

Description

Short 1 - 2

Keep CMOS Setup

Default

Short 2 - 3

Clear CMOS Setup

Table 5-2: Clear CMOS Jumper Settings

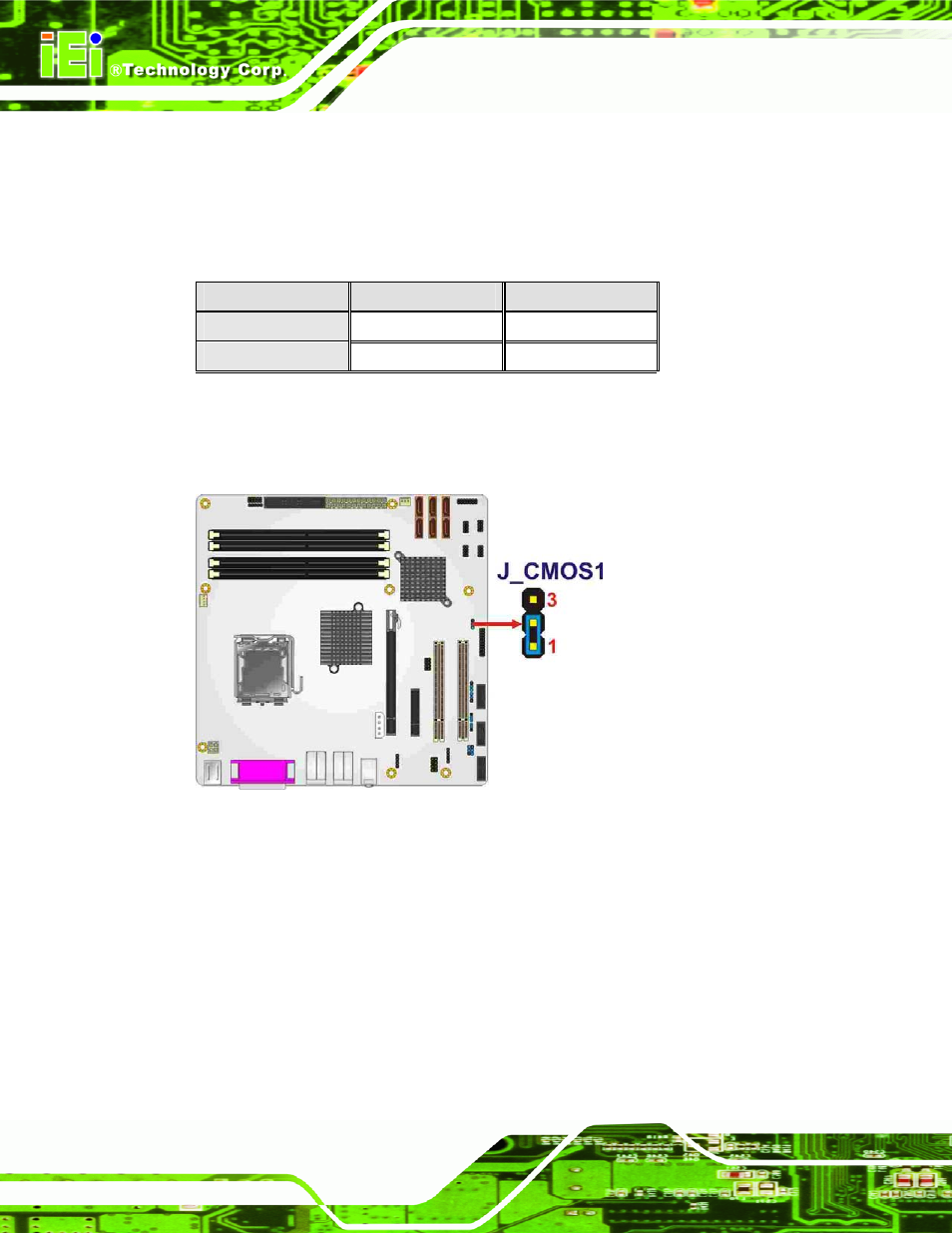

The location of the clear CMOS jumper is shown in Figure 5-9 below.

Figure 5-9: Clear CMOS Jumper

5.5.2 COM Port Pin 9 Setting Jumpers

Jumper Label:

J_COM_F2, J_COM_F3 and J_COM_F4

Jumper Type:

3-pin header

Jumper Settings:

See Table 5-3

Jumper Location:

See Figure 5-10
