IMB-Q354 uATX Motherboard
Page 31

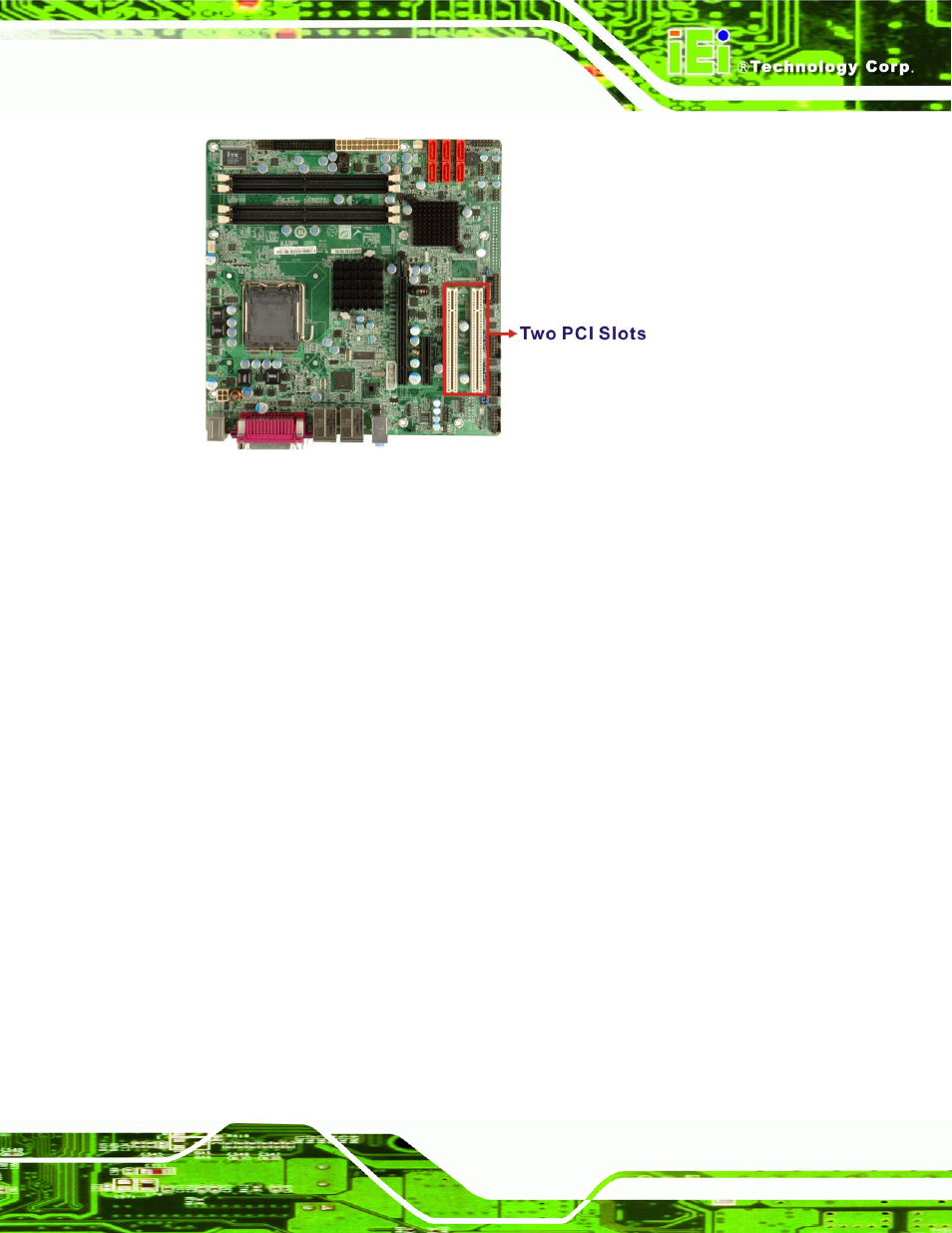

Figure 2-15: PCI Slots
2.8 LPC Bus Components
2.8.1 LPC Bus Overview
The LPC bus is connected to components listed below:
TPM module connector
Super I/O chipset
Fintek F81216DG LPC Serial Port Chipset
2.8.2 TPM Module
A TPM connector on the IMB-Q354 is interfaced to the Intel® ICH9DO Southbridge
through the LPC bus. The TPM connector is shown in Figure 2-16 below.
