bracket. To secure the bracket to the chassis please refer to the installation

instructions that came with the chassis.

Step 0:

5.7.5 PCIe x16 Expansion Card Installation

A PCIe x16 expansion card can be installed on the IMB-Q354 using the PCIe x16

expansion slot. To install a PCIe expansion card into the PCIe socket, please follow the

steps below and refer to Figure 5-16.

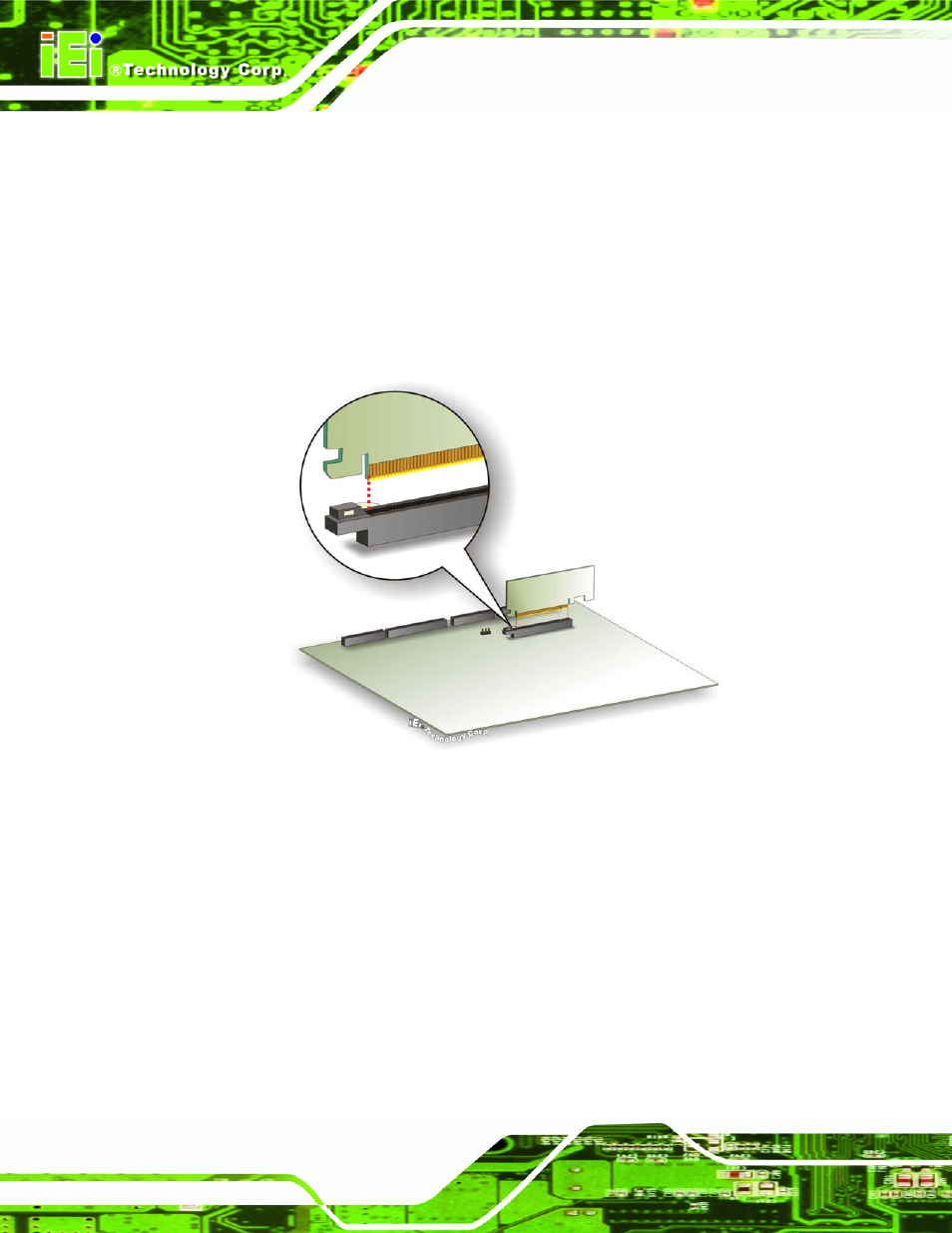

Figure 5-16: PCIe x16 Installation

Step 1:

Locate the PCIe x16 socket. Place the IMB-Q354 on an anti-static pad with the

solder side facing up.

Step 2:

Align the PCIe x16 card with the socket. The PCIe x16 card must be aligned

so the notch on the PCIe x16 card aligns with the plastic bridge in the socket.

Step 3:

Insert the PCIe x16 card. Push the PCIe x16 card into the socket,

perpendicular to the IMB-Q354.

Step 4:

Secure the PCI x16 card. Push the PCIe x16 card down until the clip engages,
