IMB-Q354 uATX Motherboard

Page 253

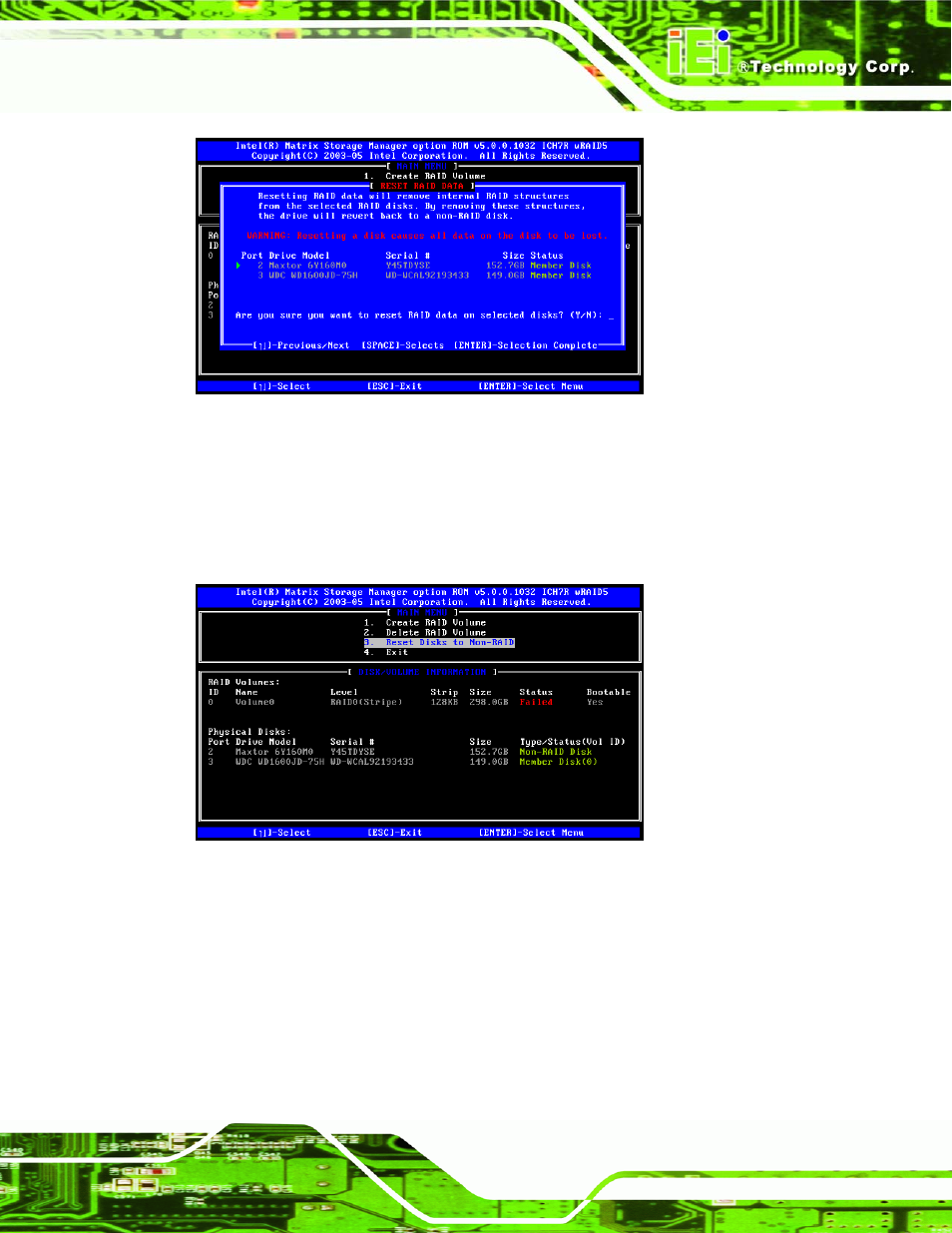

Figure G-14: Reset Disk Verification

Step 4:

Disk Drive and RAID Volume Status. After the disk drives have been reset, the

Matrix Storage Manager Main menu is shown indicating the status of the RAID

volumes and disk drives. See Figure G-15.

Step 0:

Figure G-15: Disk Drive and RAID Volume Status

G.4.4 Exiting the Matrix Storage Manager

Step 1:

Select “Exit.” Use the arrow keys to highlight Exit and press E

NTER

See Figure G-16.
