IMB-Q354 uATX Motherboard

Page 28

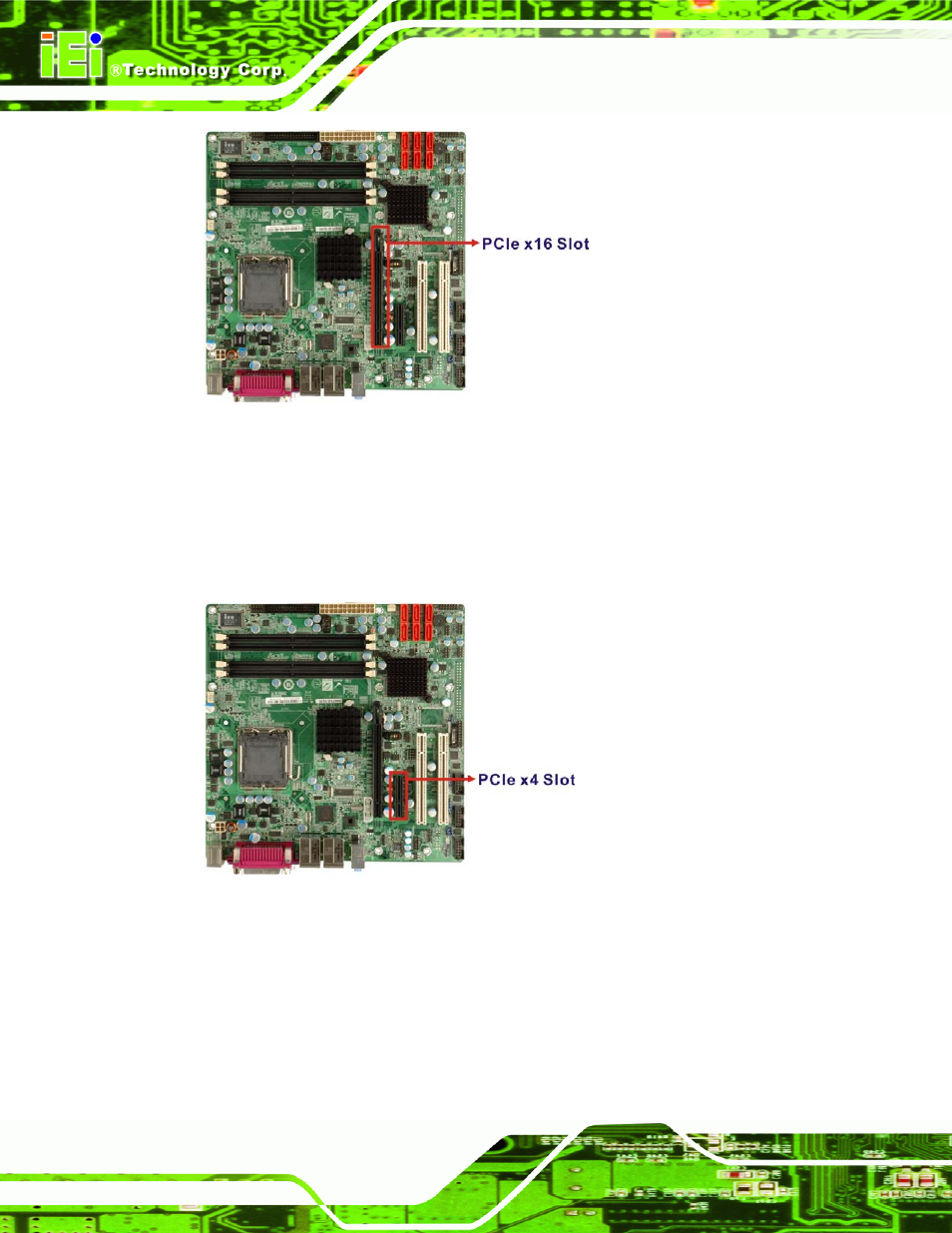

Figure 2-12: PCIe x16 Slot

2.6.3 PCIe x4 Slot

Four of the six PCIe x1 expansion channels on the IMB-Q354 are interfaced to one PCIe

x4 slot on the IMB-Q354 motherboard. The PCIe x4 slot is shown in Figure 2-13.

Figure 2-13: PCIe x4 Slot

2.6.4 Intel® 82573L PCIe GbE Controller

An RJ-45 Ethernet LAN connector is interfaced directly to an Intel® 82573L PCIe GbE

controller. The Intel® 82573L PCIe GbE controller is a compact, single-port integrated

physical layer (PHY) device with its own Memory Access Controller (MAC) and interfaced
