Using Memory Toolbar Shortcuts

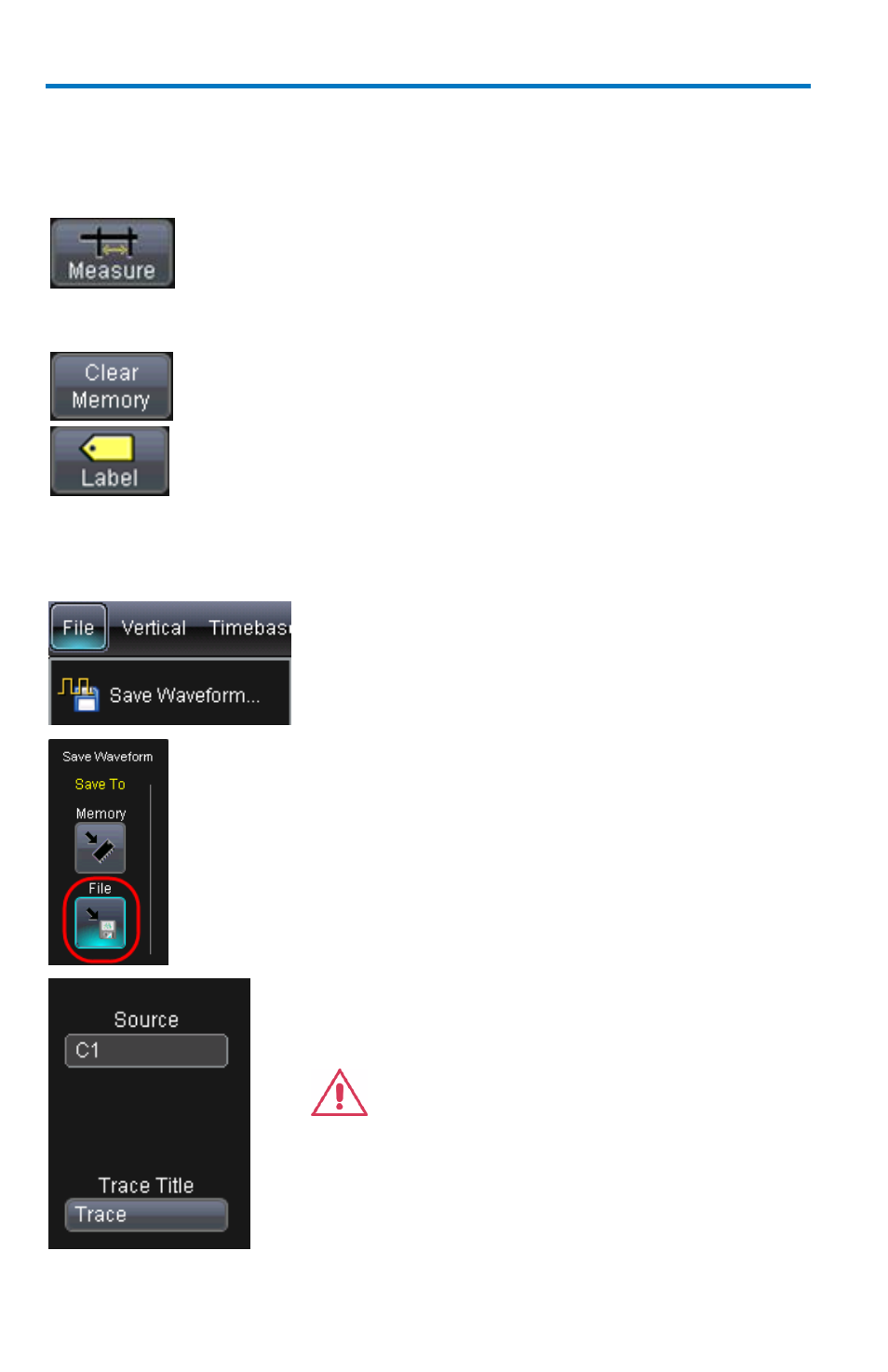

These toolbar shortcuts can be used to perform specific actions for the
Memory Traces.
Opens a Measurement selection pop-up menu. You can then
select a parameter (measurement) for the Memory trace
from this menu without leaving the Memory Setup dialog.
The parameter automatically appears below the grid.
Clears the memory of the stored trace.
Opens a Labeling pop-up menu that allows you to create
labels tied to the memory.
Saving and Recalling Waveform Data
Saving Waveform Data
1. Choose File Save Waveform from the
menu bar.
2. Choose to save the Waveform Data to a File
3. Choose a source of the data that you want to
save, and choose a file name for the data file.
CAUTION. If you use a name that ends in
a number instead of a letter, the
instrument may truncate the number. This is
because, by design, the first waveform is
automatically numbered 0, the second 1, etc.
