Understanding parameter displays, The parameter display format – Teledyne LeCroy WaveSurfer MXs-B Getting Started Manual User Manual
Page 56

WaveSurfer MXs-B Oscilloscopes
48
922172-00 Rev A

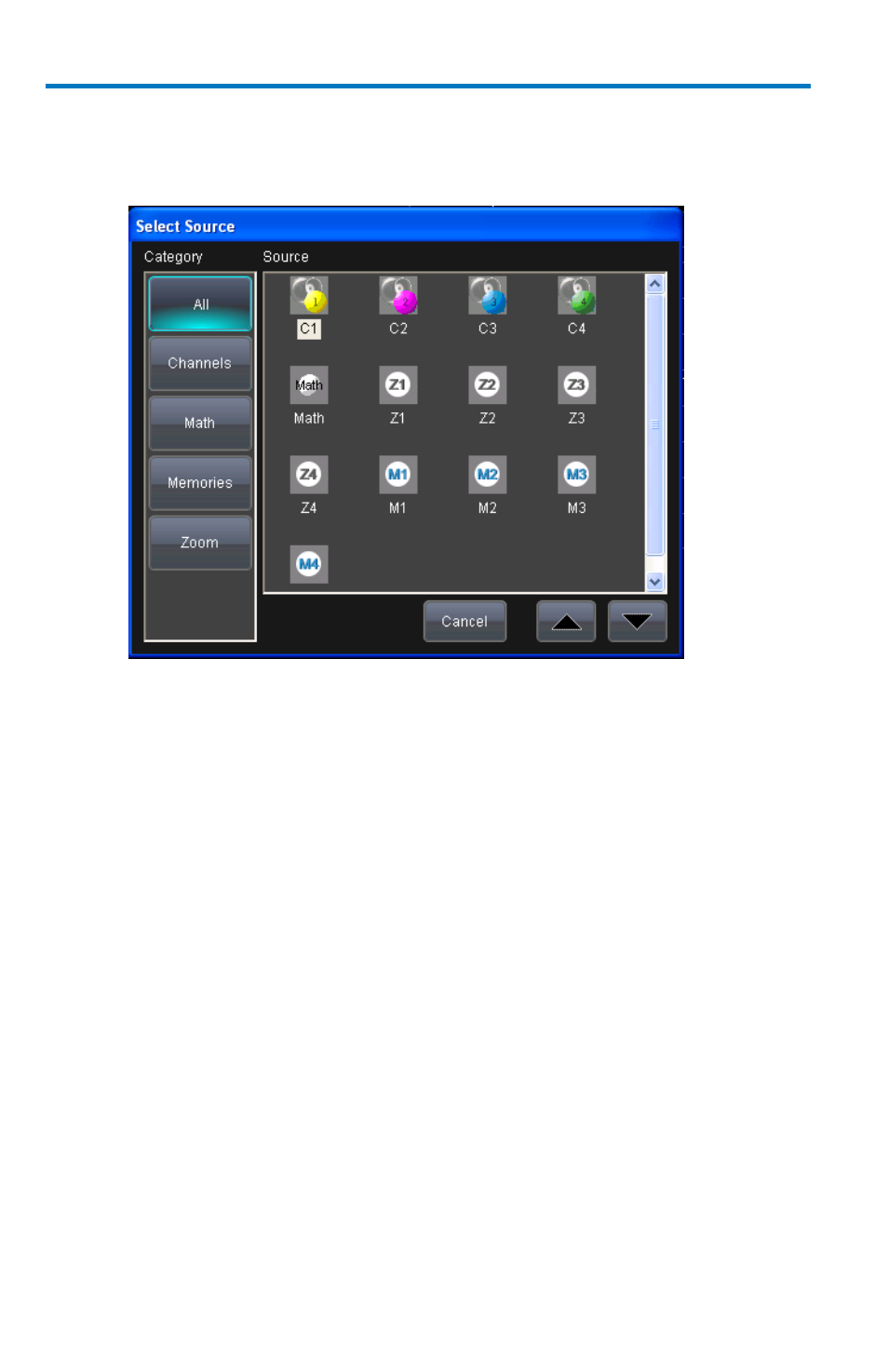

4. The channel source defaults to C1. Touch inside the Source field to
select a different source (a channel, a math function, a memory, or
a zoom).
5. Add additional parameter measurements to the display by
selecting other parameters (labeled as P1 through P6) as previously
described.
6. Close the measure dialog by either pressing the front panel
Measure button again, or touching Close on the on-screen dialog.
Understanding Parameter Displays
The Parameter Display Format
Understanding the information in the parameter displays is easy. The
following table explains what each abbreviation means, following the
parameter display from left to right, and top to bottom.
