Mask Testing Setup

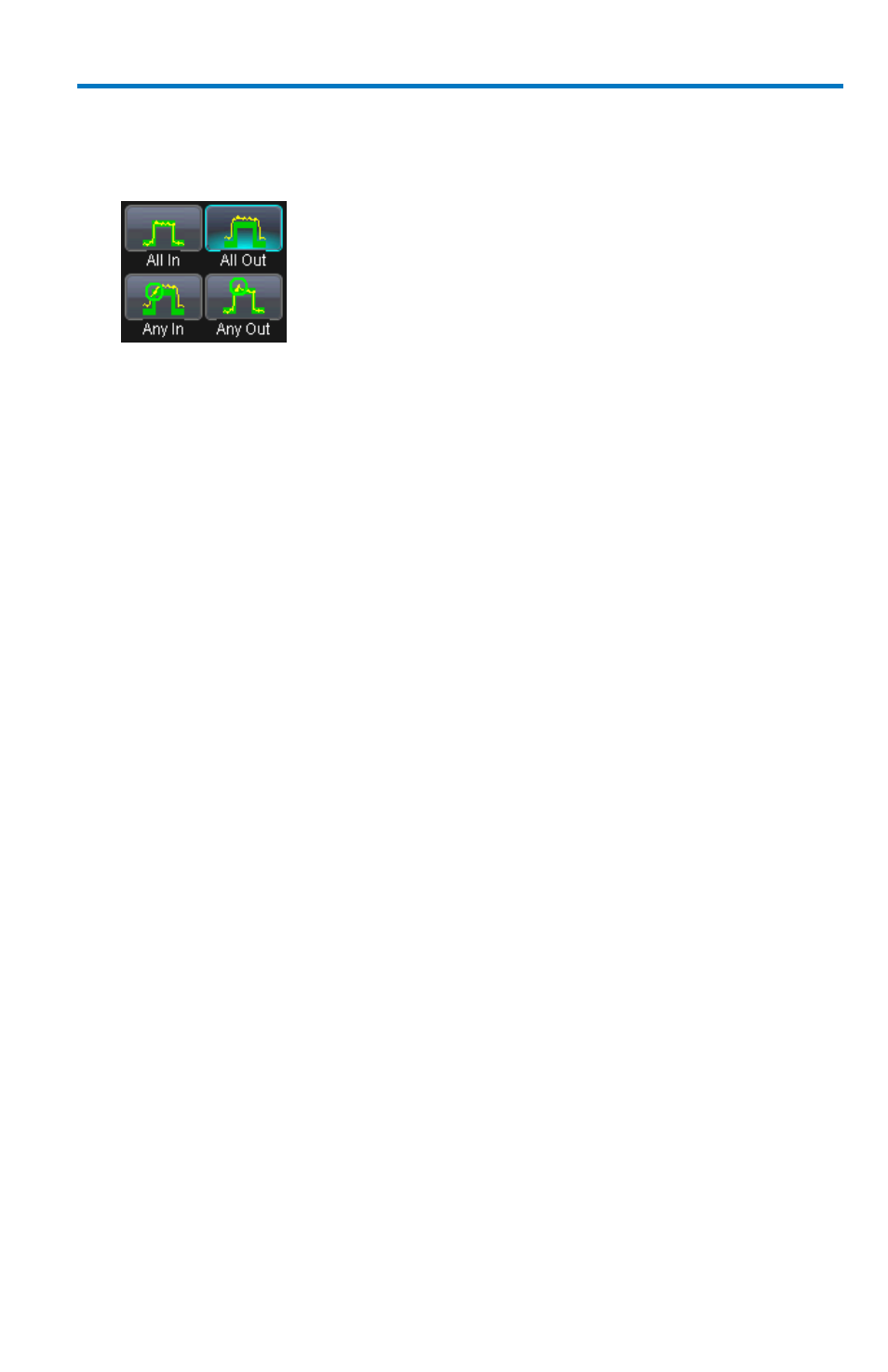

1. From the Test dialog (right side of the screen), choose one of the Test
is True when buttons:
A selection means (for example, if you select All In) the test is False if
even a single waveform falls outside the mask.
2. From Show Markers, choose whether or not to have mask violations
displayed.
3. If you are loading a pre-existing mask, touch the Load Mask tab, then
the File button. You can then enter the file name or browse to its
location.
4. If you want to make a mask from your waveform, touch the Make
Mask tab.
5. Touch inside the Ver Delta and Hor Delta fields and enter boundary
values, using the pop-up numeric keypad.
6. Touch the Browse button to create a file name and location for the
mask if you want to save it.
7. Touch the Gate tab, then enter values in the Start and Stop fields to
constrain the mask to a portion of the waveform. Or, you can simply
touch and drag the Gate posts, which initially are placed at the extreme
left and right ends of the grid.
