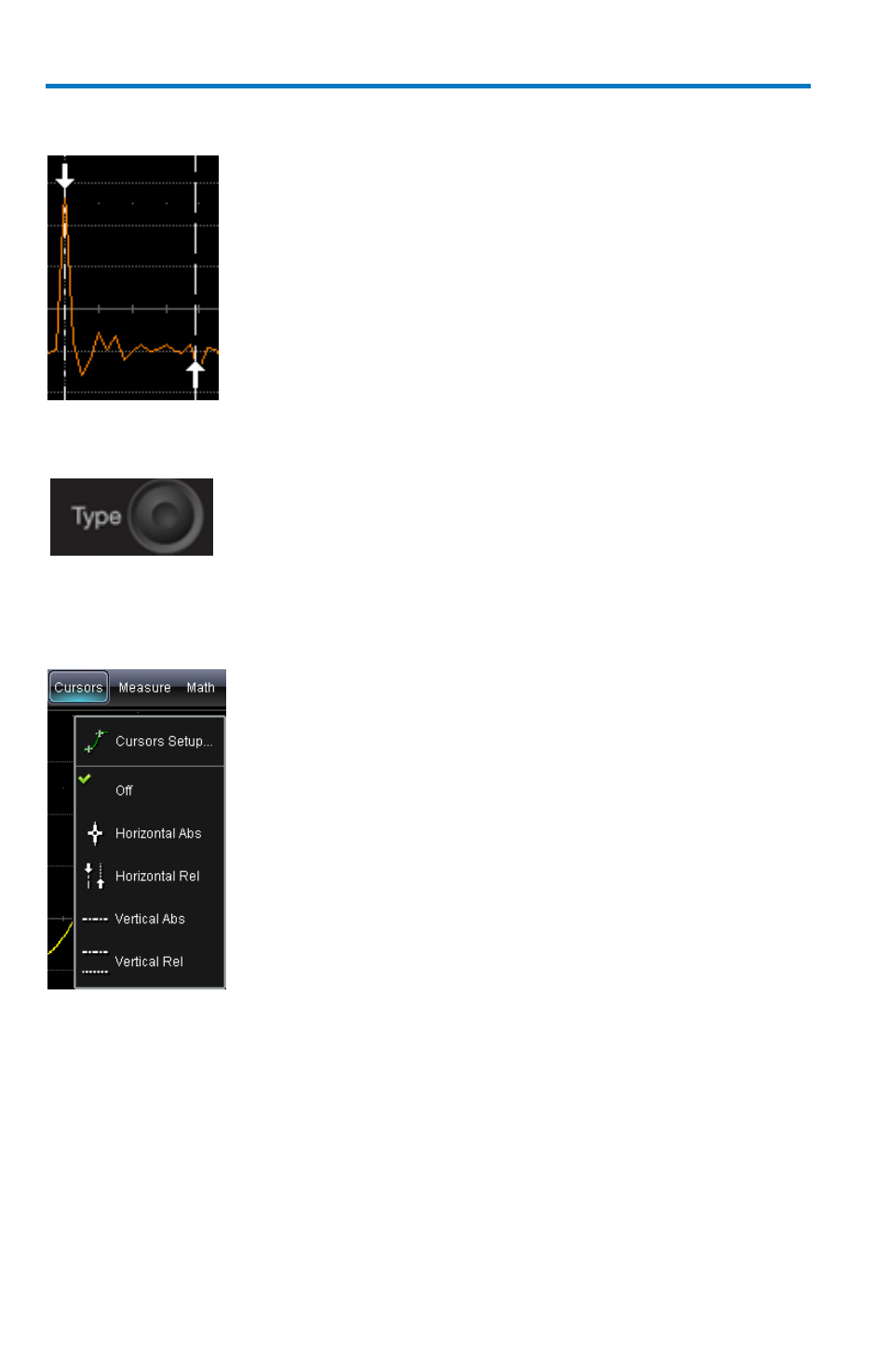

Horizontal (Frequency)
Horizontal (Frequency) cursors are moved left and right
along the FFT Math trace. Place them at a desired
location along the frequency axis to read the signal’s
frequency and amplitude at the selected location.
Changing Cursor Type
Pressing the Type button between the cursor knobs
toggles the Cursors from one type to another, and
ultimately to OFF, without requiring a cursor setup
dialog to be opened.
Tracking Cursors
Lock the cursors together by checking the Track
checkbox on the Cursors dialog (Cursors Cursor
Setup… from menu bar).
This sets the cursors to move in unison while adjusting
their position.
