WaveSurfer MXs-B Oscilloscopes
72
922172-00 Rev A
Setting Up Pass/Fail Testing
Touch Analysis Pass/Fail Analysis from the menu bar.

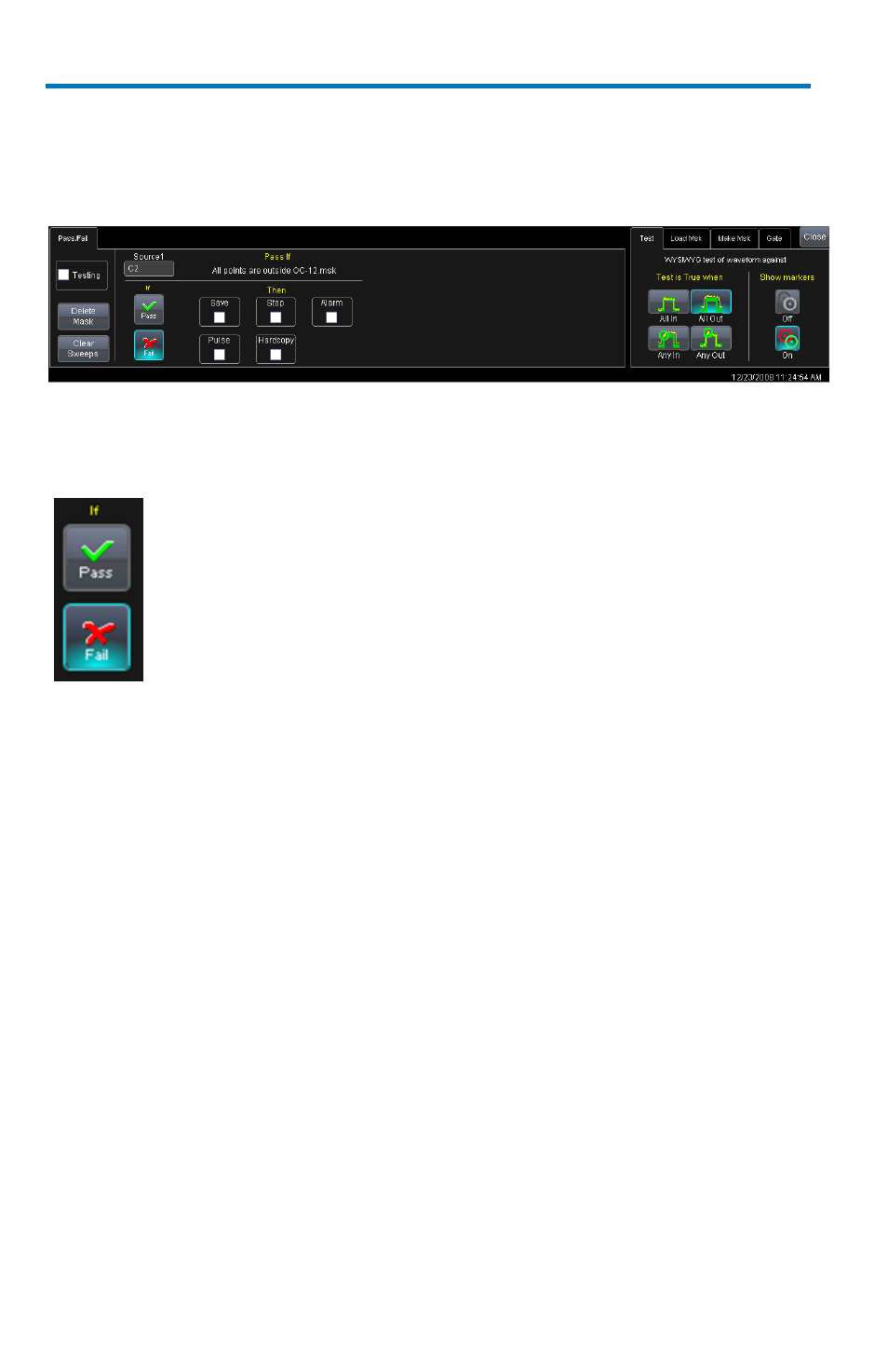

The following dialog is shown on the lower display area.
Select a Source for the mask test.
Touch either the Pass or Fail button to set the actions to occur upon your
waveform's passing or failing the test.
Touch the actions you want to occur: stop test, sound alarm, print result,
emit pulse, or save the waveform. If you want to have the results printed,
be sure that the oscilloscope is connected to a local or network printer. See
Printing.
If you want to save your waveform automatically, touch the Save Setup.
This exits the current dialog and opens the Save Waveform dialog. Refer to
the Saving and Recalling Signals section for more details.
