Getting Started Manual
922172-00 Rev A
39
F
RONT
P
ANEL
Q
UICK
Z
OOM
B
UTTON

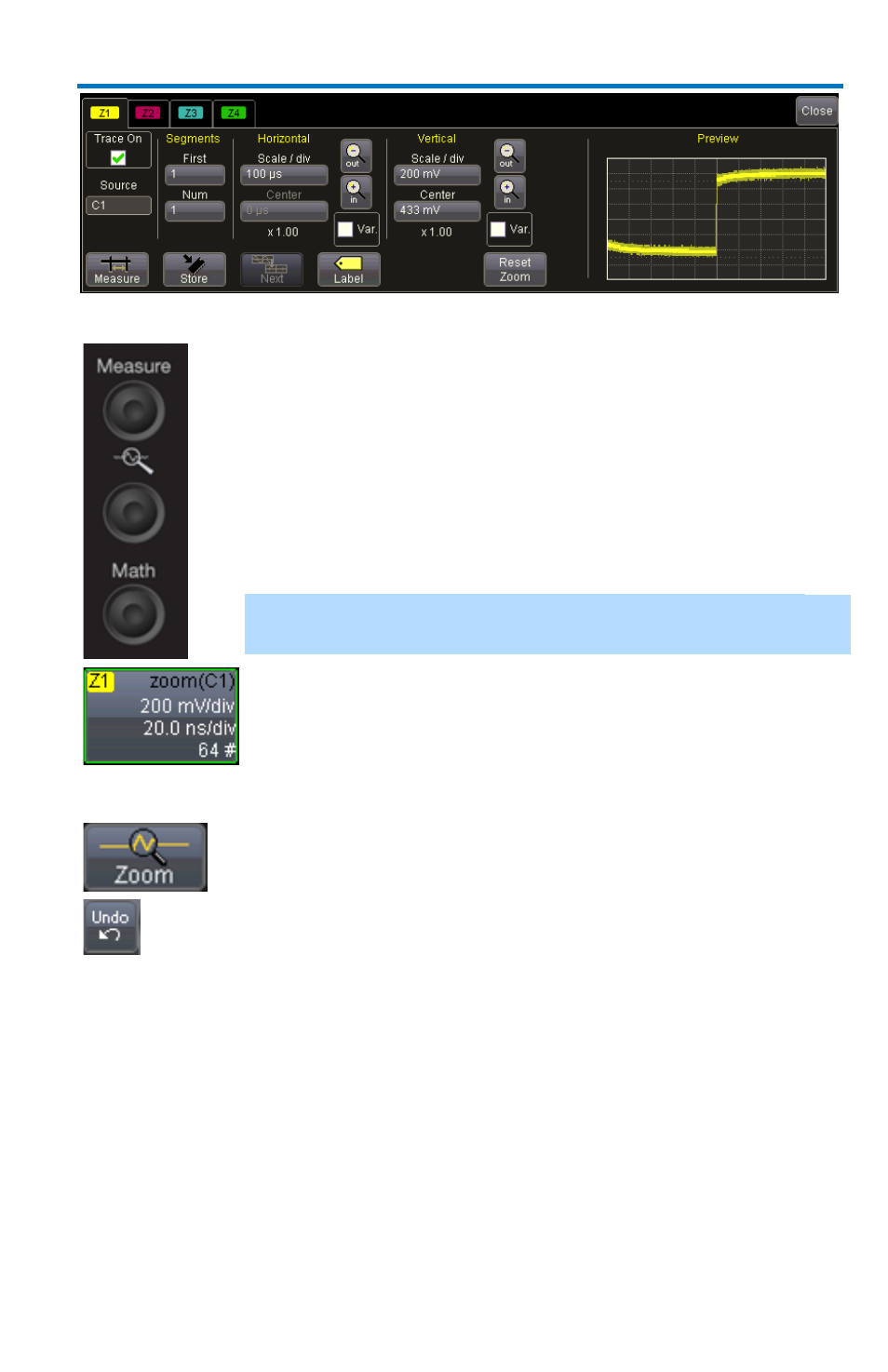

Pressing the front panel QuickZoom button creates Zoom
traces for all channels shown.
Individually turn off a Zoom trace by touching the Zoom
descriptor label, open the Zoom trace dialog, and then
uncheck the ON checkbox.
UNDO your zoom at any time by pressing the front panel
QuickZoom button again.
NOTE: A Zoom is not automatically created for channels
turned ON after QuickZoom is displayed.
T
OOLBAR
Z
OOM
Press the toolbar Zoom button in the Cx Vertical Adjust
dialog for the channel trace you want to zoom. A Zoom
trace is created for the selected channel.
UNDO your zoom by pressing the Undo button in the upper-
right corner of the display, or pressing the front panel
QuickZoom button again.
