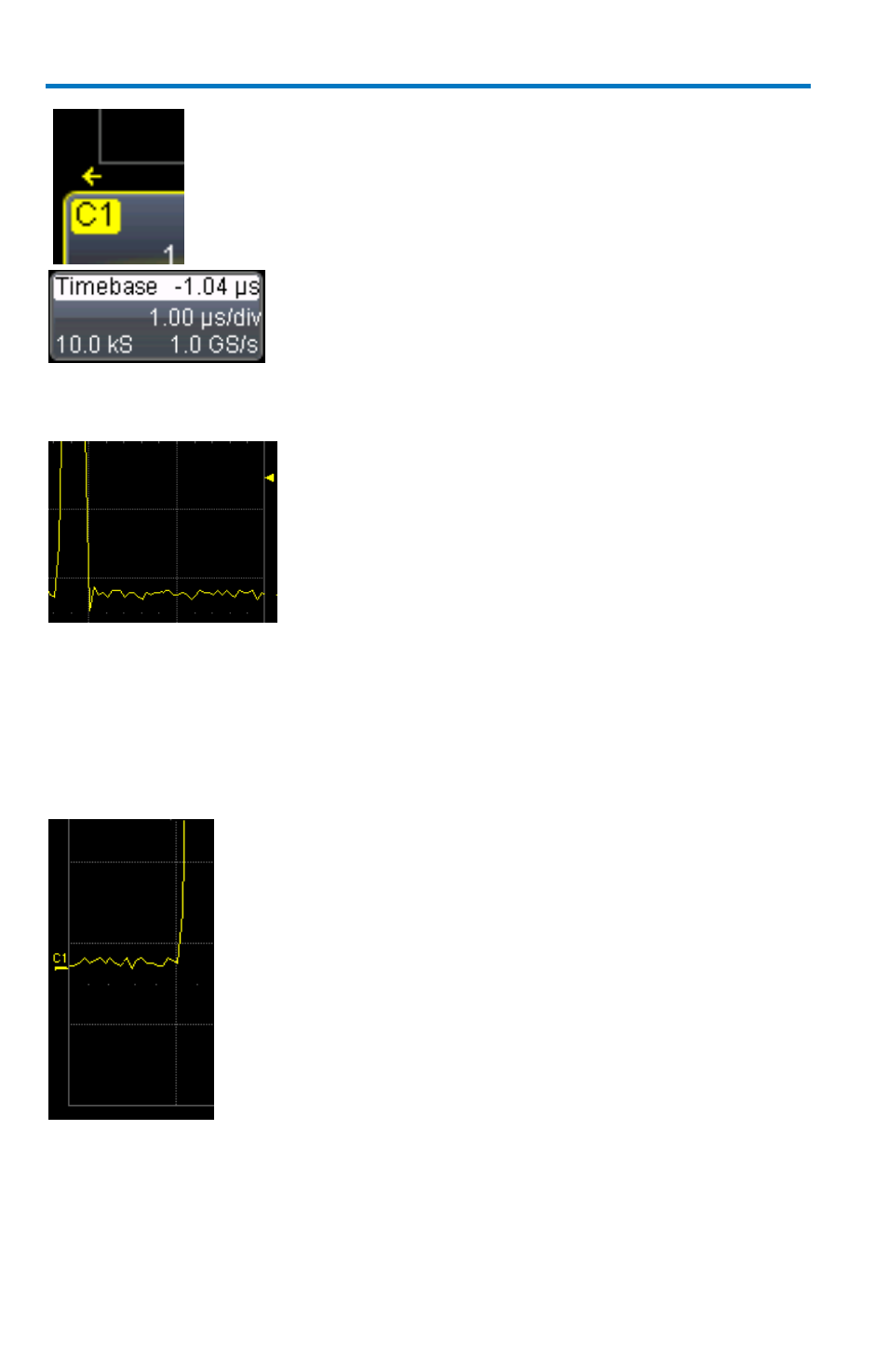

Post-trigger delay is indicated by a color-coded
arrow pointing to the left.
All trigger delay values (including post-trigger
delay, shown here) are displayed in the timebase
descriptor label.
Trigger Level Indicator
The trigger level Indicator is a color-coded triangle
that is positioned vertically on the grid.
In Stop trigger mode, the solid triangle also appears
with a hollow triangle of the same color if the level
is changed at that time. The hollow triangle
indicates what the trigger level is for the next valid
trigger.
The trigger level indicator is not shown if the
triggering channel is not displayed.
Zero Level Indicator
The zero volts level indicator is a color-coded label
that is positioned vertically on the grid.
Change the zero level by using the front panel
O
FFSET
knob in the VERTICAL control area. Rotate
this knob to adjust, or push to set to zero volts.
Push again to toggle back to the previous offset
setting.
