WaveSurfer MXs-B Oscilloscopes
70
922172-00 Rev A

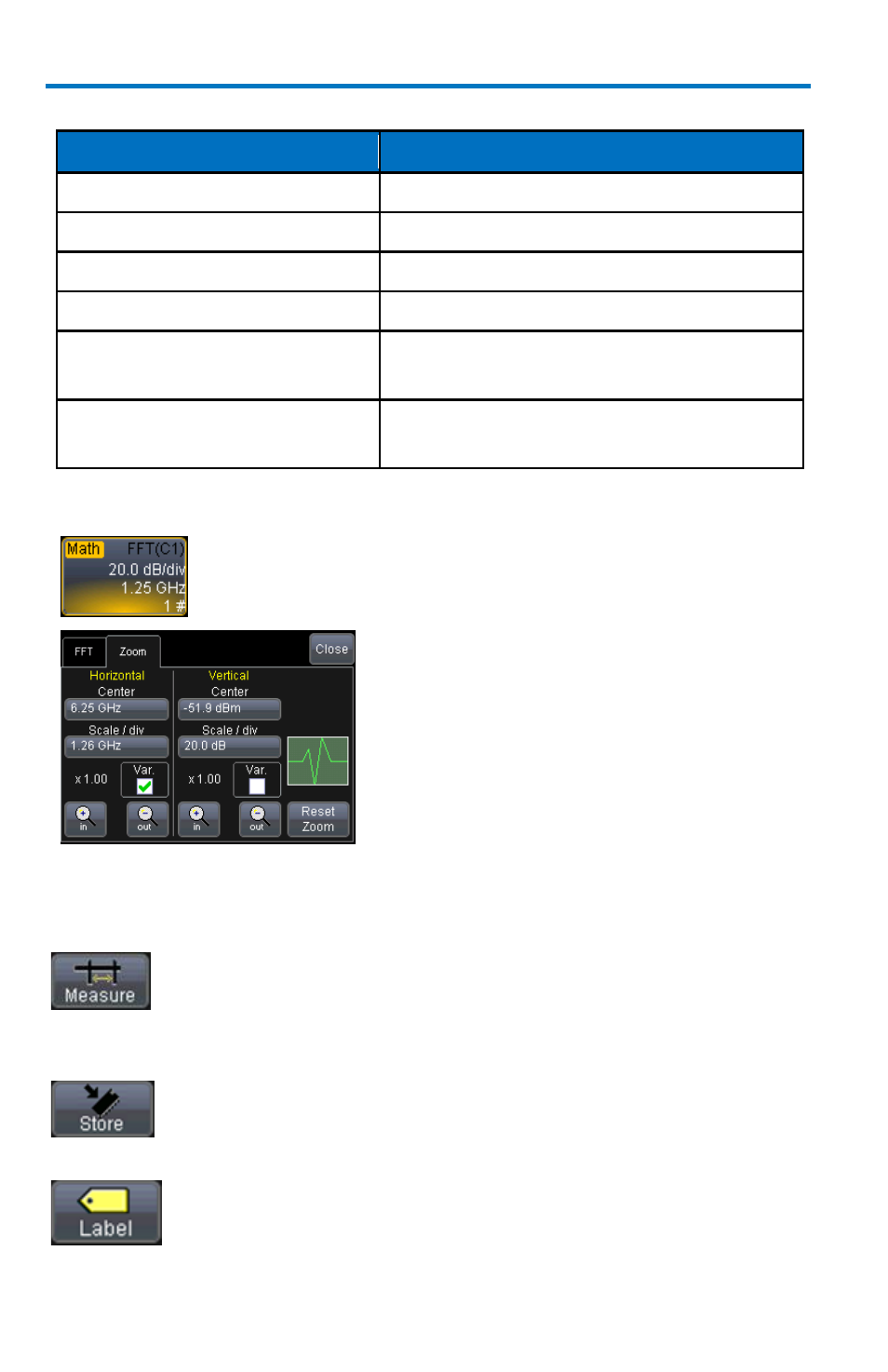

Panel Control
Zoom Control Action
Delay
Zooms horizontal position
Timebase
Zooms horizontal scale
Offset
Zooms vertical position
Gain / Sensitivity
Zooms vertical scale
Push
– Zero Delay
Resets horizontal zoom to 10:1 scale, and
resets to default horizontal position
Push
– Zero Offset
Resets vertical zoom to 1:1 scale, and resets
to default vertical position
Using Math Dialog Zoom Controls
1. Touch the descriptor label twice to
open the Math dialog.
2. Then use the Zoom dialog on the
right to change the horizontal and
vertical position and scale.
Toolbar Shortcuts
These buttons can be used to perform specific actions for the Math Trace.
Opens a Measurement selection pop-up menu. You can then
select a parameter (measurement) for the Math trace from
this menu without leaving the Math Setup dialog. The
parameter automatically appears below the grid.
Loads the Math trace into its corresponding Memory
(Reference Waveform) location (Memory 1, or abbreviated as
M1).
Opens a Labeling pop-up menu that allows you to create
labels tied to the waveform.
