Using zoom dialog controls, Getting started manual – Teledyne LeCroy WaveSurfer MXs-B Getting Started Manual User Manual
Page 49

Getting Started Manual
922172-00 Rev A
41

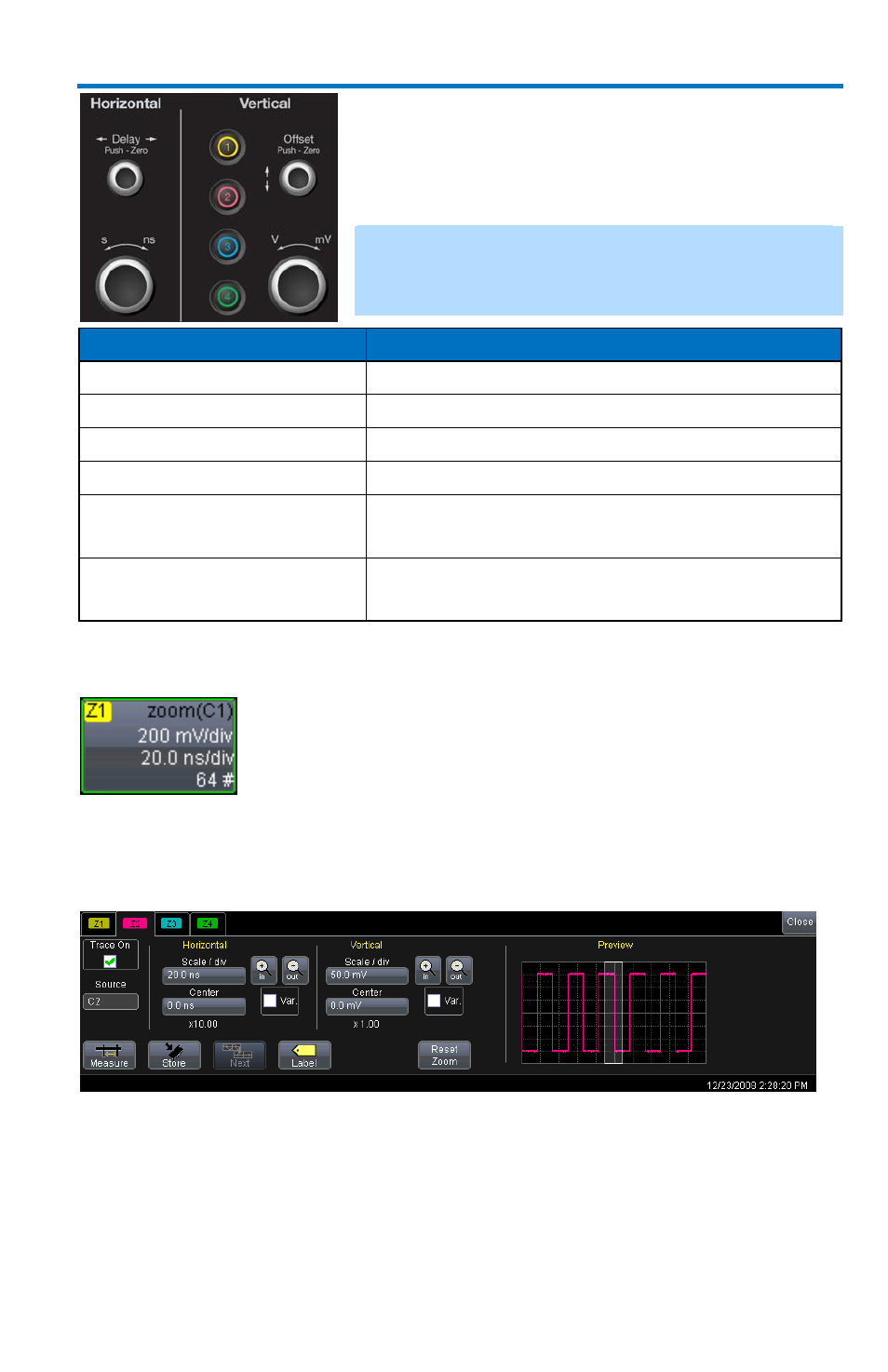

Then, use the front panel horizontal and
vertical controls to adjust position and scale.
The operation of the knobs feels natural. Use
the following table as a guide.
NOTE: When a Zoom trace is active, no channel
buttons are lit. This indicates that a Zoom trace
may be currently active.
Panel Control
Zoom Control Action
Delay
Zooms horizontal position
Timebase
Zooms horizontal scale
Offset
Zooms vertical position
Gain / Sensitivity
Zooms vertical scale
Push – Zero Delay
Resets horizontal zoom to 10:1 scale, and resets
to default horizontal position
Push – Zero Offset
Resets vertical zoom to 1:1 scale, and resets to
default vertical position
Using Zoom Dialog Controls
You can also use the Zoom dialog controls to adjust
zoom. Touch the descriptor label to open the Zoom
dialog.
Then use the on-screen zoom controls to change the horizontal and vertical
position and scale.
Horizontal scale adjustments always apply to all waveforms.
