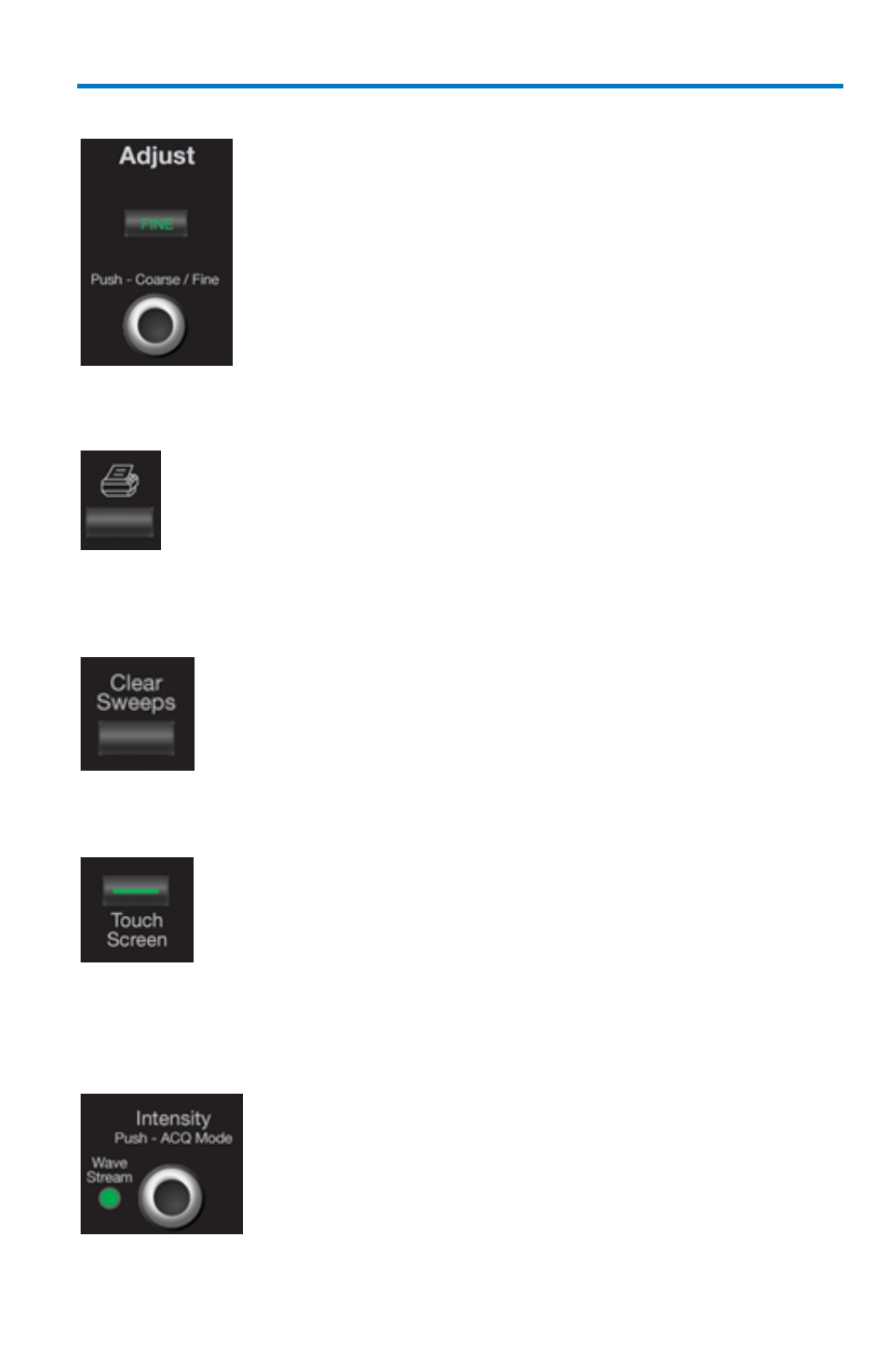

Adjust Knob
The adjust knob can be used to make adjustments to a
value when a dialog is open and the selected control
has a yellow highlight.
Push the knob in to toggle between coarse and fine
adjustments.
Print Button
This button can be programmed to print the screen to
a file, a printer, or the clipboard. It can also send the
file as an e-mail attachment. Select the instrument and
format it under the Utilities Hardcopy dialog.
Clear Sweeps
Clears data from multiple sweeps (acquisitions)
including: persistence displays, parameter
(measurement) statistics, and averaged traces.
Touch Screen
The Touch Screen lighted pushbutton indicates if the
oscilloscope touch screen is operational. If the button
is lighted, the touch screen is ON. If the button is not
lighted, the touch screen is turned OFF. The button
toggles between these two states.
Intensity/Acquisition Mode
The
I
NTENSITY
knob adjusts the brightness of your
trace. Pushing the button toggles between
WaveStream fast-viewing mode (indicator lamp on)
and real-time mode (lamp off).
