Serial decode and decode setup – Teledyne LeCroy WaveSurfer MXs-B Getting Started Manual User Manual
Page 44

WaveSurfer MXs-B Oscilloscopes
36
922172-00 Rev A
Serial Decode and Decode Setup
These dialogs provide the ability to set the oscilloscope up for protocol
decoding of serial data messages, with display of the protocol data overlaid
on the signal. They also allow quick and easy access to oscilloscope
zooming, searching, table display, and table export.
The serial decode and decode setup dialogs are accessed in any of the
following ways:

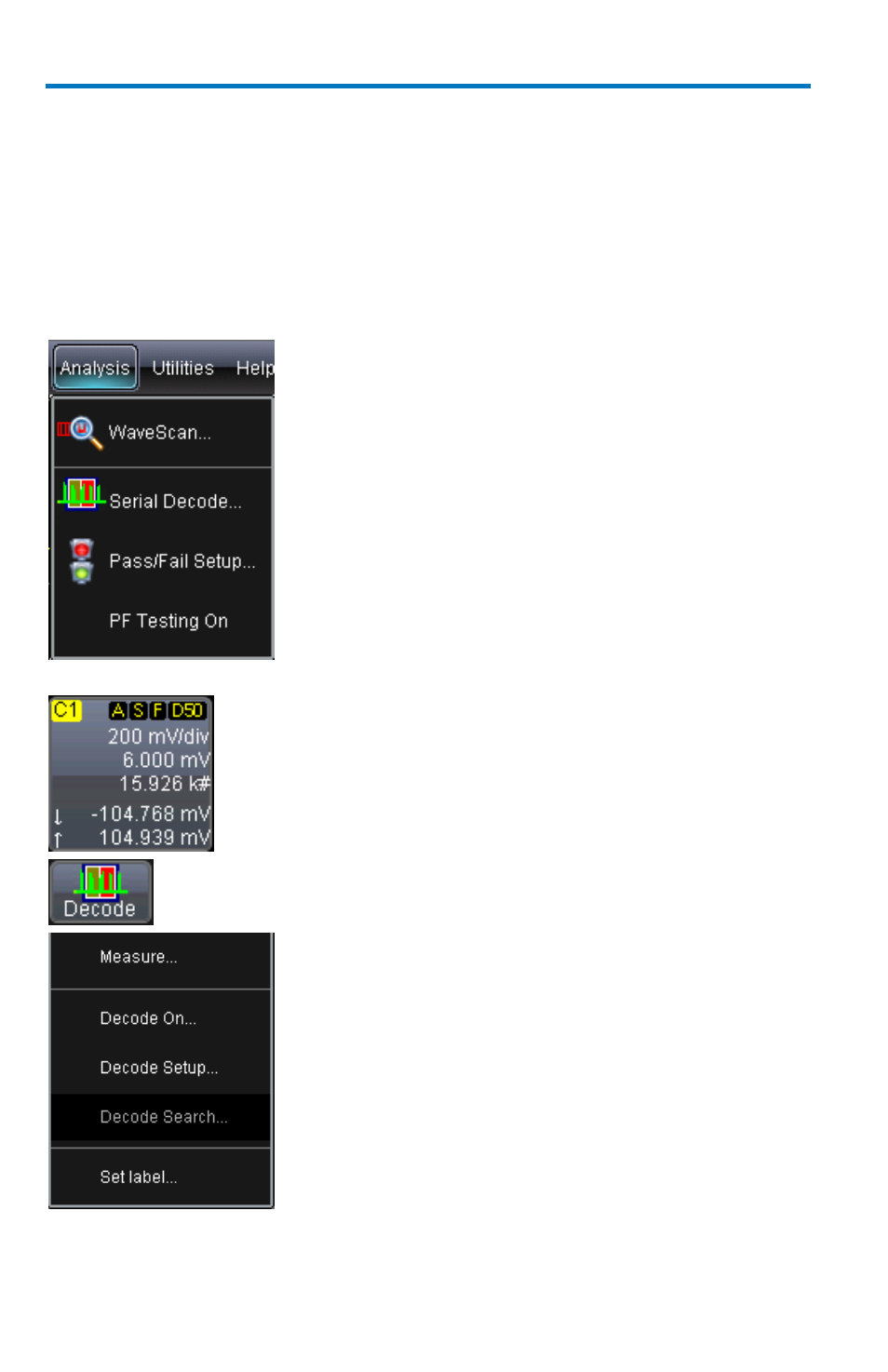

Touch Analysis Serial Decode... from the
menu bar.
The Serial Decode summary dialog is shown
and provides access to Decode Setup.
Touch the Channel or Memory Descriptor Box
to open the respective dialog box, and touch
the Decode button in the bottom toolbar.
Touch a Channel, Memory, or Math trace to
open a pop-up dialog that displays a shortcut
to the Decode Setup dialog box
Please refer to the Low Speed Serial Data Trigger manual or the Online
Help on your oscilloscope for Serial Trigger information and details.
